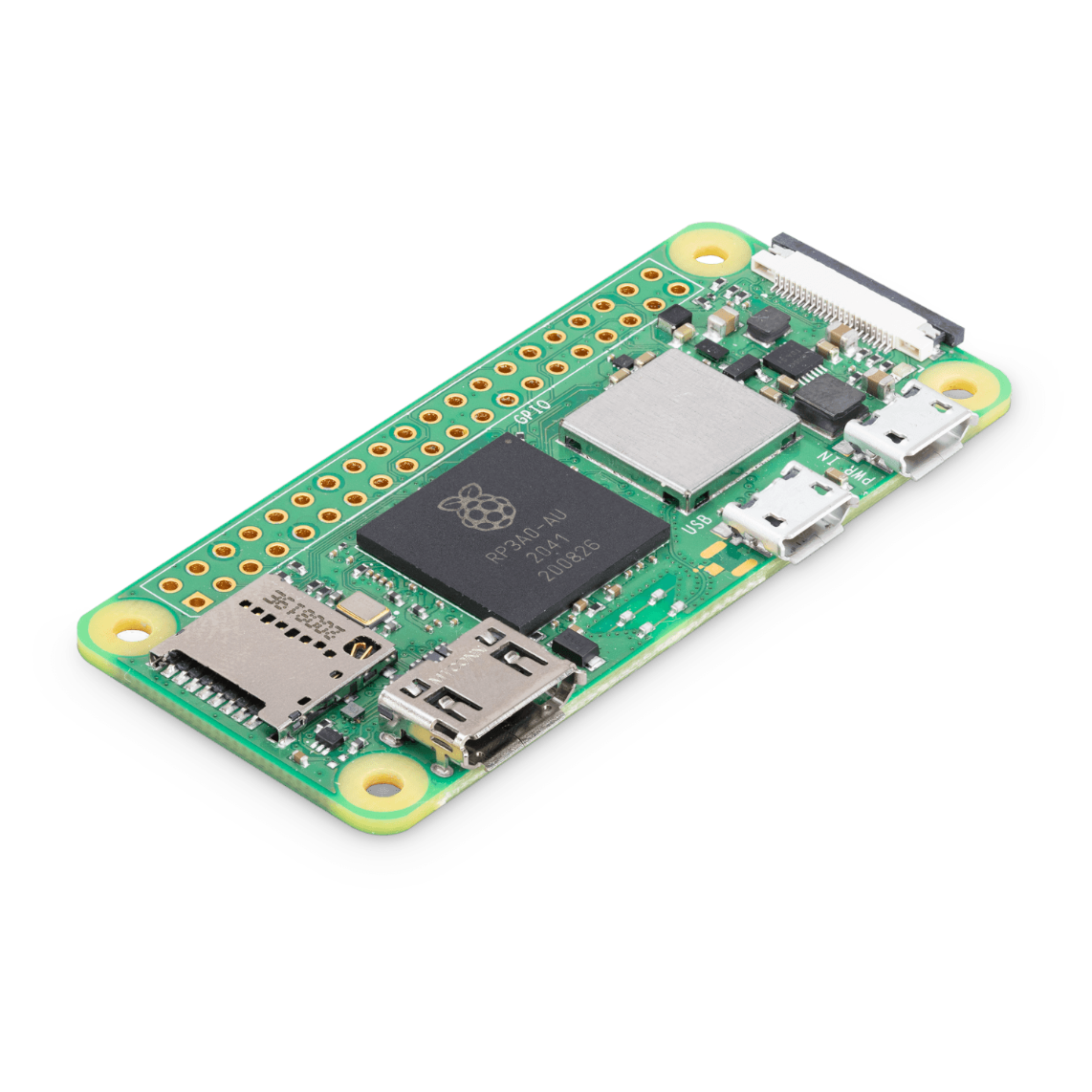

Raspberry Pi Zero 2 W Single Board

Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board
computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.
The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz.

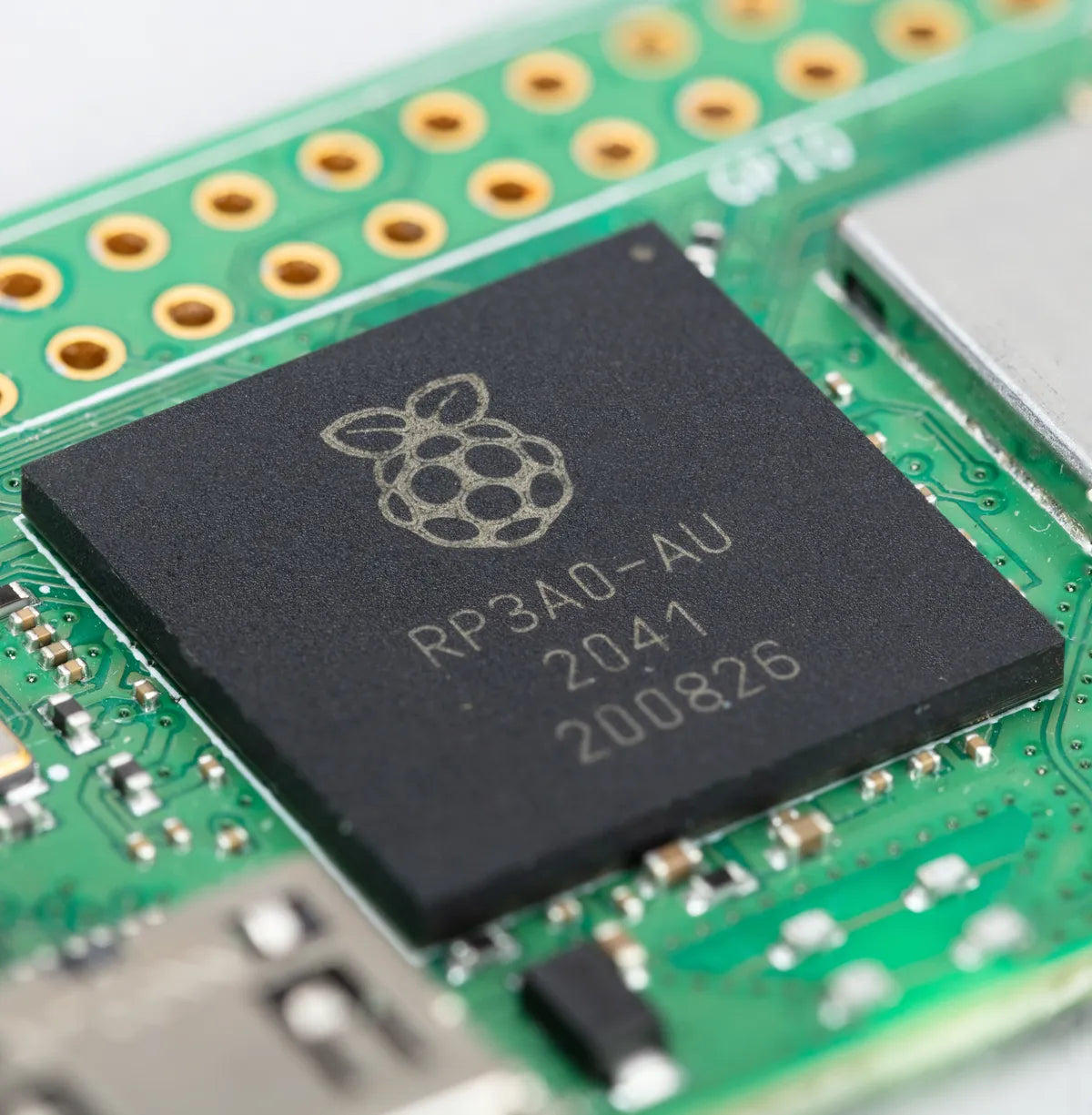

At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom
BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides
Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more
multi-threaded performance, than the original single-core Raspberry Pi Zero.
Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along
with support for Bluetooth Low Energy (BLE), and modular compliance certification.
The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG)
port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed. Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

Specification

Form factor: 65mm × 30mm
Processor: Broadcom BCM2710A1, quad-core 64-bit SoC

(Arm Cortex-A53 @ 1GHz)
Memory: 512MB LPDDR2
Connectivity: • 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE,

onboard antenna
• 1 × USB 2.0 interface with OTG

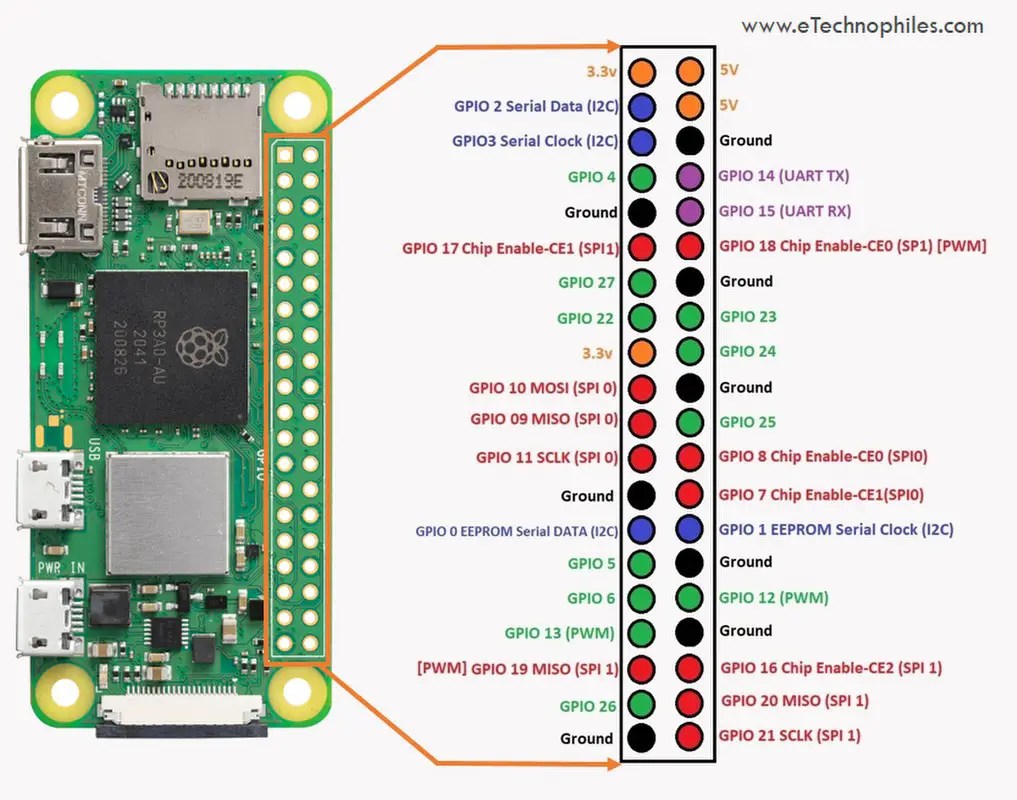

• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector
Video: • HDMI interface
• Composite video

Multimedia:

• H.264, MPEG-4 decode (1080p 30)
• H.264 encode (1080p 30)
• OpenGL ES 1.1, 2.0 graphics

Input power: 5V DC 2.5A
Operating temperature: -20°C to +70°C

Production lifetime: Raspberry Pi Zero 2 W will remain in production until at least January 2028
