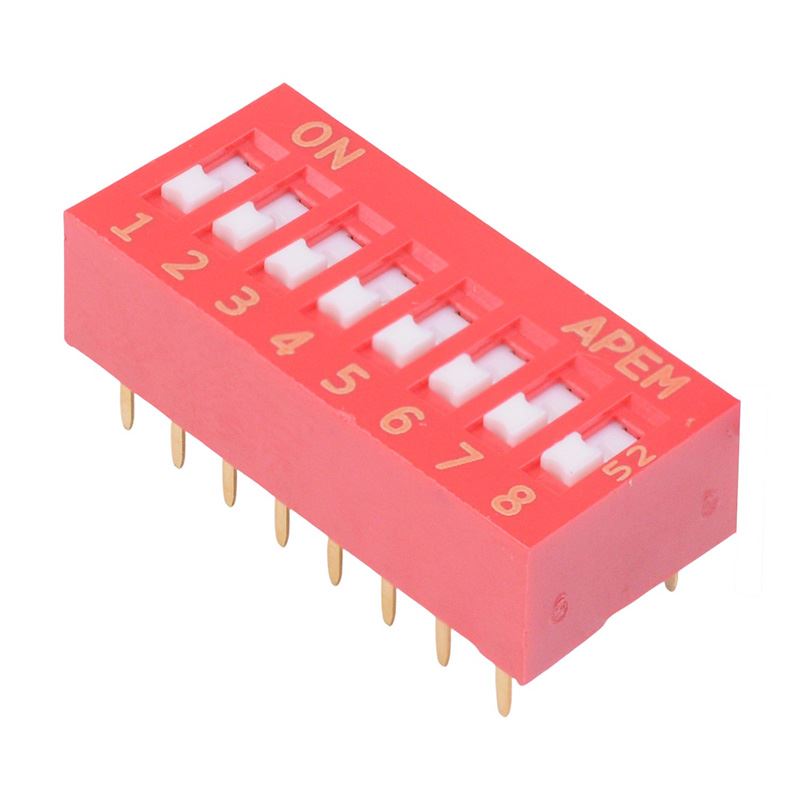

NDSR-08-V 8 Way Recessed Actuator DIP Switch SPST APEM

The NDSR-08-V is a 8 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features a recessed actuator and gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.

8 way

SPST contacts

Recessed actuator

2.54mm x 7.62mm pitch

Switching contact rating: 25mA 24VDC

Non-switching contact rating: 100mA 50VDC

Electrical life: 2000 cycles per switch

Contact material: gold plated
