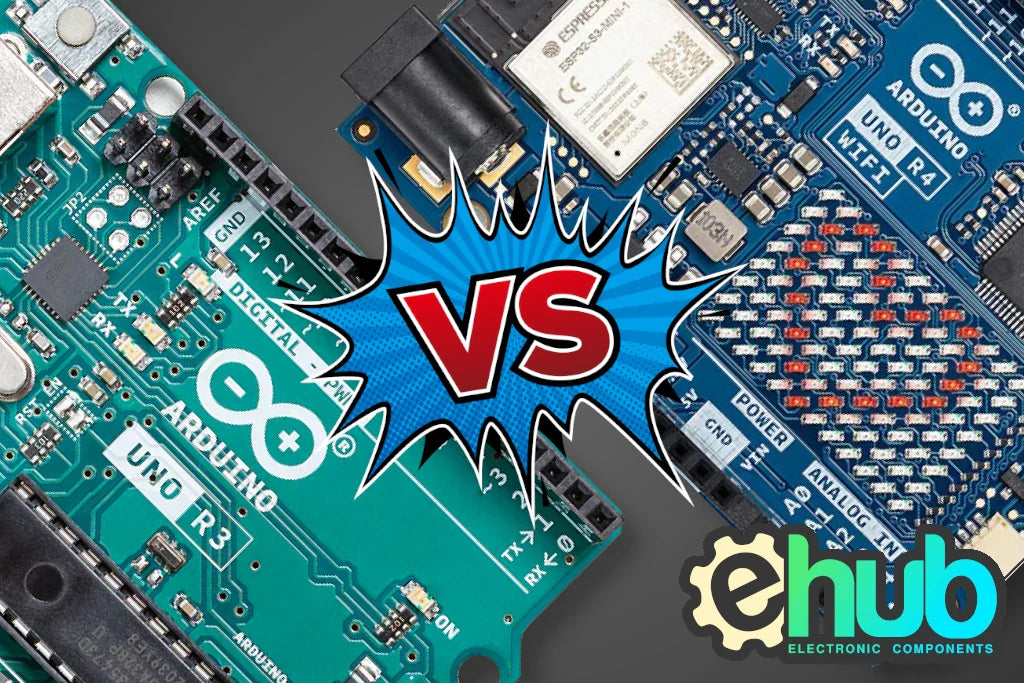

Arduino UNO R3 vs Arduino UNO R4 WiFi, Full Comparison, Key Differences, and What the R4 Can Do That the R3 Can’t

If you’re trying to choose between the Arduino UNO R3 and the newer Arduino UNO R4 WiFi, this in-depth comparison explains every major difference. The UNO R4 WiFi is a huge upgrade over the classic R3, but both boards have strengths depending on your project. Below you’ll find a complete breakdown of specifications, features, performance, and new possibilities unlocked by the R4 WiFi.

Overview: What’s the Difference Between Arduino UNO R3 and UNO R4 WiFi?

The Arduino UNO R3 is one of the most popular microcontroller boards ever made. It’s simple, reliable, and widely compatible with thousands of shields and tutorials. The Arduino UNO R4 WiFi, however, is a new-generation board offering 3× the clock speed, 8× the memory, 14-bit ADC, a 12-bit DAC, built-in WiFi + Bluetooth, and a more modern 32-bit ARM processor.

In short:

• UNO R3 = Classic, simple, great for beginners + older projects.

• UNO R4 WiFi = Modern, powerful, IoT-ready board with advanced features.

Arduino UNO R3 vs R4 WiFi: Side-by-Side Comparison

1. Microcontroller and Performance

• Arduino UNO R3: 8-bit ATmega328P running at 16 MHz

• Arduino UNO R4 WiFi: 32-bit Arm Cortex-M4 running at 48 MHz

The UNO R4 WiFi delivers significantly faster processing, making it the better choice for real-time data processing, robotics, and multi-sensor projects.

2. Memory (Flash, RAM, EEPROM)

• R3: 32 KB Flash, 2 KB RAM

• R4 WiFi: 256 KB Flash, 32 KB RAM

This massive increase in memory lets the R4 handle larger programs, complex libraries, data buffers, and IoT applications.

3. Connectivity

• R3: No built-in wireless (requires external modules)

• R4 WiFi: WiFi + Bluetooth built-in

This is one of the most important upgrades. The UNO R4 WiFi is ready for IoT projects straight out of the box, no need for ESP8266/ESP32 shields.

4. Analog Features (ADC & DAC)

• R3: 10-bit ADC, no DAC (only PWM)

• R4 WiFi: 14-bit ADC + 12-bit DAC

The DAC on the R4 provides true analog output, enabling audio generation, precision control, and advanced sensor interfacing.

5. Power Flexibility

• R3: 7–12 V recommended, up to ~20 V maximum

• R4 WiFi: Up to 24 V input

R4 handles a wider voltage range, making it safer and more versatile in industrial or motor-driven projects.

6. Additional Features on the R4 WiFi

The UNO R4 WiFi includes components the R3 simply doesn’t have:

✔ Built-in 12×8 LED matrix

Useful for debugging, UI, animations, or system status displays.

✔ Qwiic / SparkFun I²C connector

Allows plug-and-play sensors with no soldering.

✔ CAN bus support

Ideal for automotive and industrial communication.

✔ USB-C port

More durable and convenient than the R3’s older USB-B port.

What the Arduino UNO R4 WiFi Can Do That the UNO R3 Cannot

For SEO value, here is a list with strong keyword alignment.

1. Build WiFi and Bluetooth IoT projects without shields

The UNO R4 WiFi replaces the need for external ESP8266 or Bluetooth modules.
Perfect for home automation, cloud dashboards, wireless sensors, smart devices, and remote control robots.

2. Run more complex, memory-intensive programs

The 32-bit ARM processor + 256 KB Flash allows:

• advanced libraries

• larger data buffers

• real-time analytics

• multitasking-style architectures

Perfect for AI-at-the-edge, motor control, and data logging applications.

2. Output true analog signals

With its DAC, the R4 WiFi can:

• produce audio waveforms

• control analog equipment

• generate precision voltage levels

This is simply not possible on the R3 without additional hardware.

3. Use higher-precision analog inputs

Its 14-bit ADC enables more accurate sensor readings, critical for:

• environmental sensors

• scientific measurements

• robotics

• signal processing

4. Use CAN bus for automotive or industrial projects

CAN support opens doors for:

• vehicle diagnostics

• robot networks

• motor controllers

5. Display information directly on the built-in LED matrix

Great for:

• system status

• text notifications

• mini-games

• debugging without a PC or external display

6. Power the board in higher-voltage environments

24-V support makes the R4 WiFi much safer and more reliable in:

• CNC machines

• robotics

• industrial equipment

When the Arduino UNO R3 Is Still the Better Choice

For SEO purposes, this section helps target the “Arduino R3 vs R4 which should I buy” keyword.

Choose the UNO R3 if:

• You need maximum compatibility with older shields and libraries.

• You’re following older tutorials designed specifically for the AVR chipset.

• You’re teaching absolute beginners and want the simplicity of the R3.

• Your project is very small or low-power and doesn’t need WiFi or advanced features.

For basic LED, servo, and sensor projects, the UNO R3 remains affordable, reliable, and well-documented.

Final Verdict: Arduino UNO R3 vs UNO R4 WiFi…. Which One Should You Buy?

• Choose Arduino UNO R3 if you want simplicity, retro compatibility, and are working on basic electronics projects.

• Choose Arduino UNO R4 WiFi if you want a future-proof Arduino with built-in WiFi, Bluetooth, more power, more memory, better analog capabilities, and improved performance.

For most modern projects, especially IoT, robotics, and connected devices, the UNO R4 WiFi is the superior choice.
