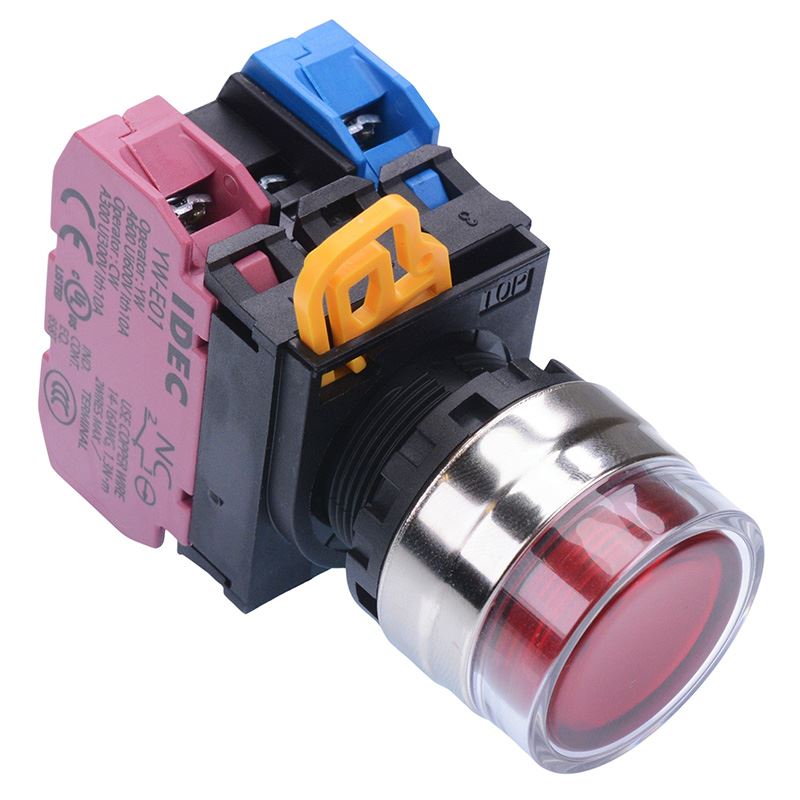

YW4L-MF2E11Q3R Red 12V illuminated 22mm Metal Bezel Momentary Shrouded Push Button Switch 1NO-1NC IP65 IDEC

The YW4B-MF2E11Q3R is an illuminated red momentary shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

Metal Bezel

1NO-1NC contacts

12V illumination

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
