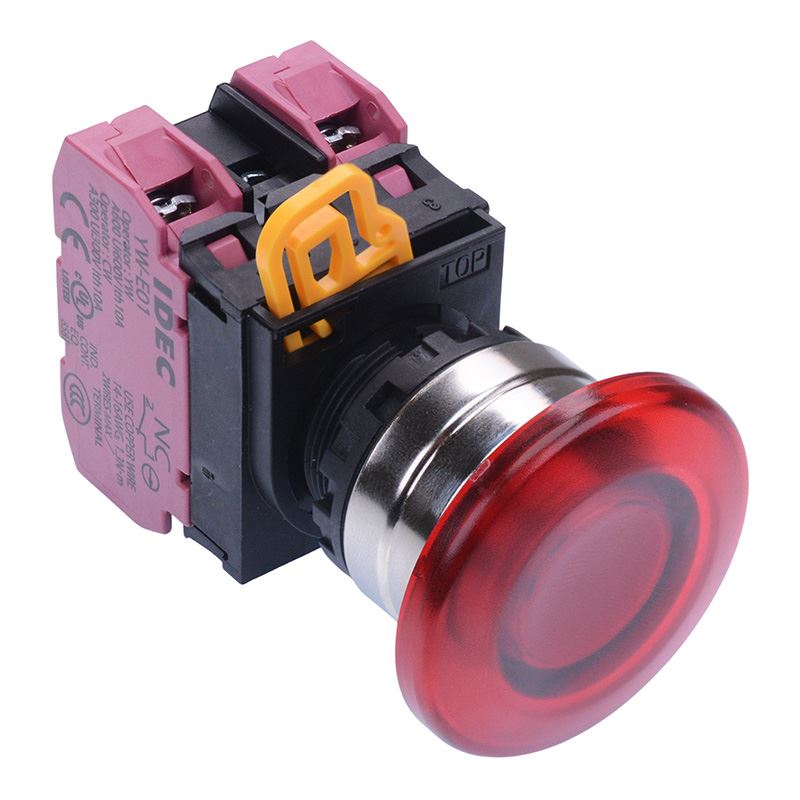

YW4L-A4E02Q4R Red 24V illuminated 22mm Metal Bezel Mushroom Maintained Push Button Switch 2NC IP65 IDEC

The YW4B-A4E02Q4R is an illuminated red maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

Metal Bezel

2NC contacts

24V LED illumination

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

40mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
