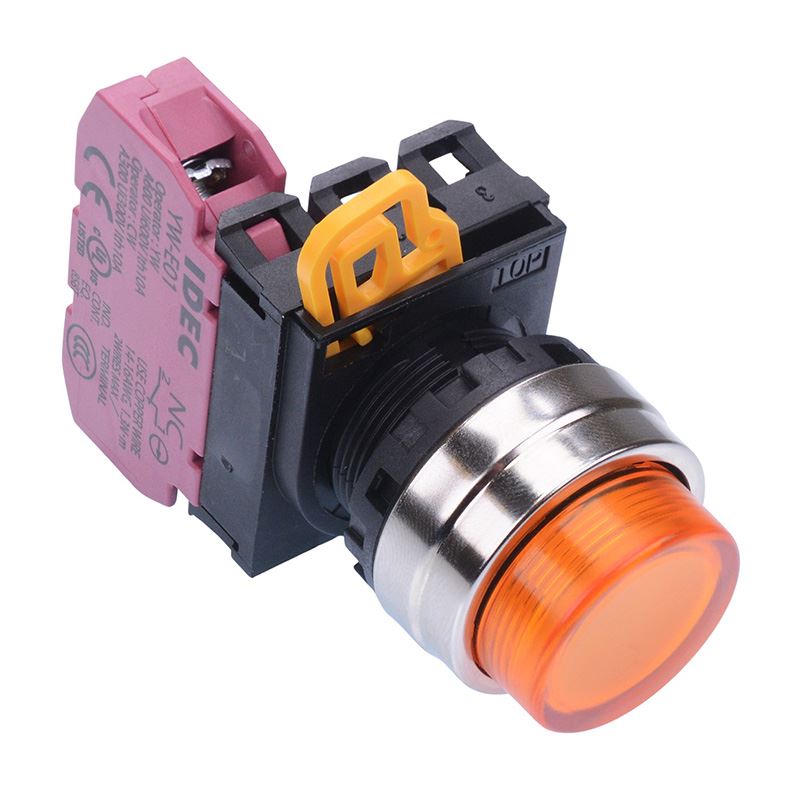

YW4L-A2E01Q0A Amber 22mm Metal Bezel Maintained Push Button Switch NC IP65 IDEC

The YW4B-A2E01Q0A is a amber maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

Metal Bezel

NC contacts

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
