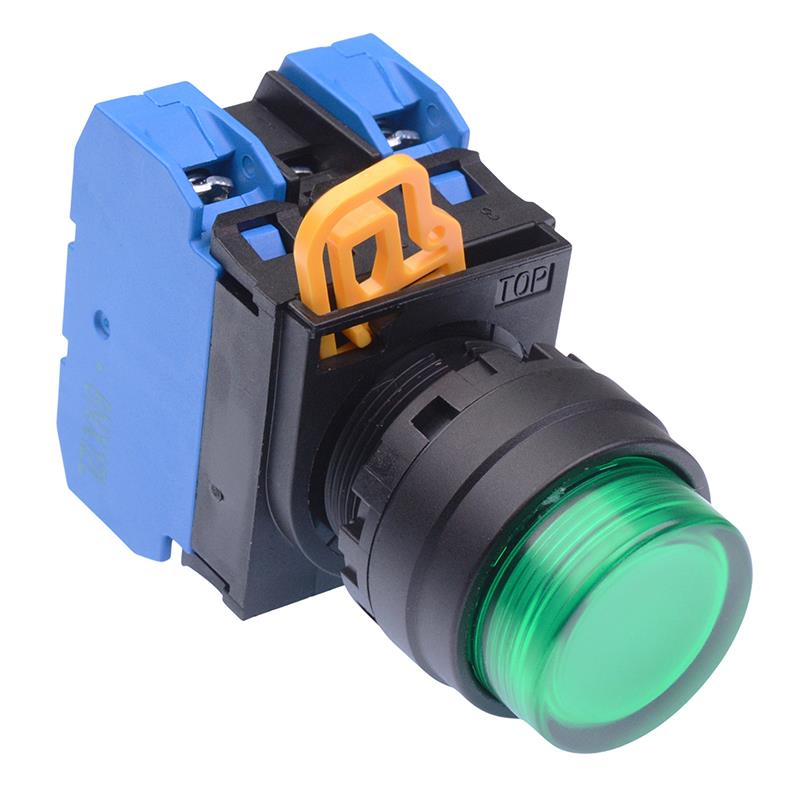

YW1L-A2E20Q4G Green 24V illuminated 22mm Maintained Push Button Switch 2NO IP65 IDEC

The YW1B-A2E20Q4G is an illuminated green maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

2NO contacts

24V illumination

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
