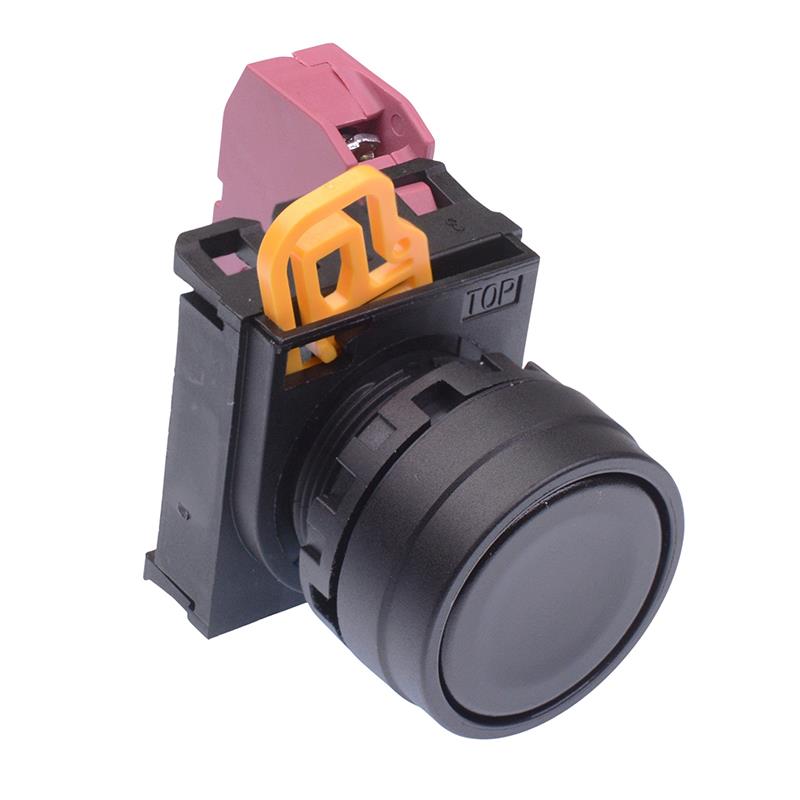

YW1B-M1E01B Black 22mm Momentary Push Button Switch NC IP65 IDEC

The YW1B-M1E01B is a black momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

NC contacts

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
