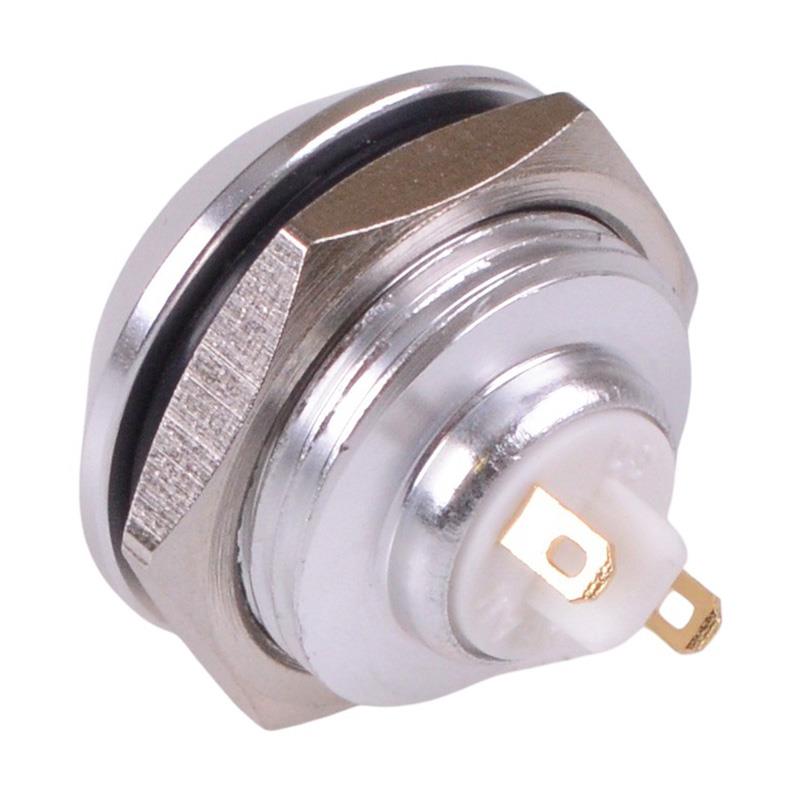

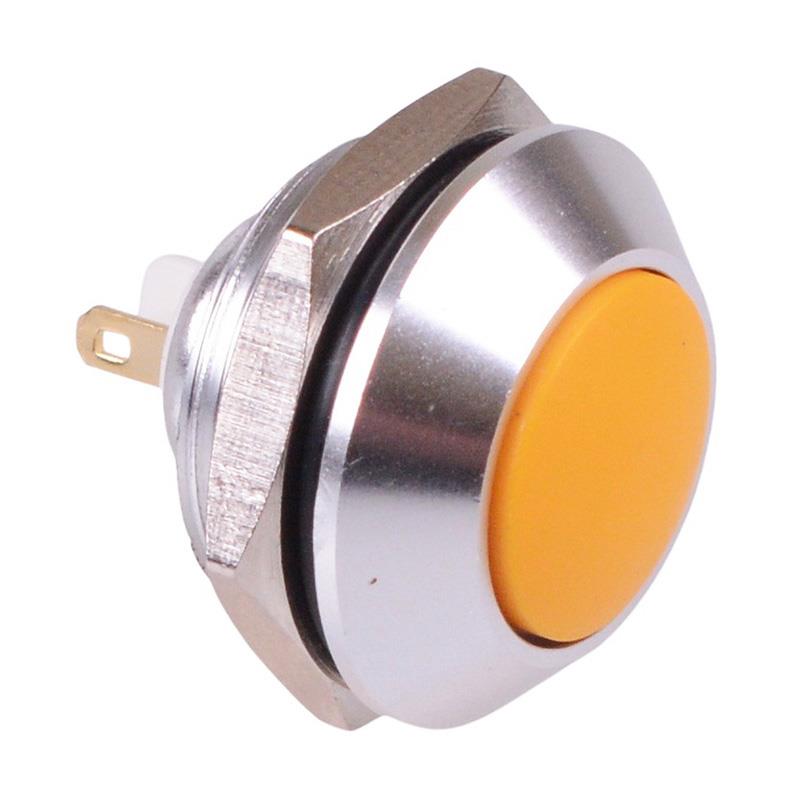

Yellow Off-(On) 16mm Metal Round Push Button Switch IP65 SPST

Yellow momentary push button switch featuring a round actuator and normally open contacts. The switch features a stainless steel housing and is suitable for mounting in 16mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

SPST-NO contacts

IP65 protection rating

Solder terminals

Panel cut-out: 16mm

Panel thickness: 4mm max

Rating: 3A 250V

Dimensions: 20.0 x 19.8mm (height x diameter)
