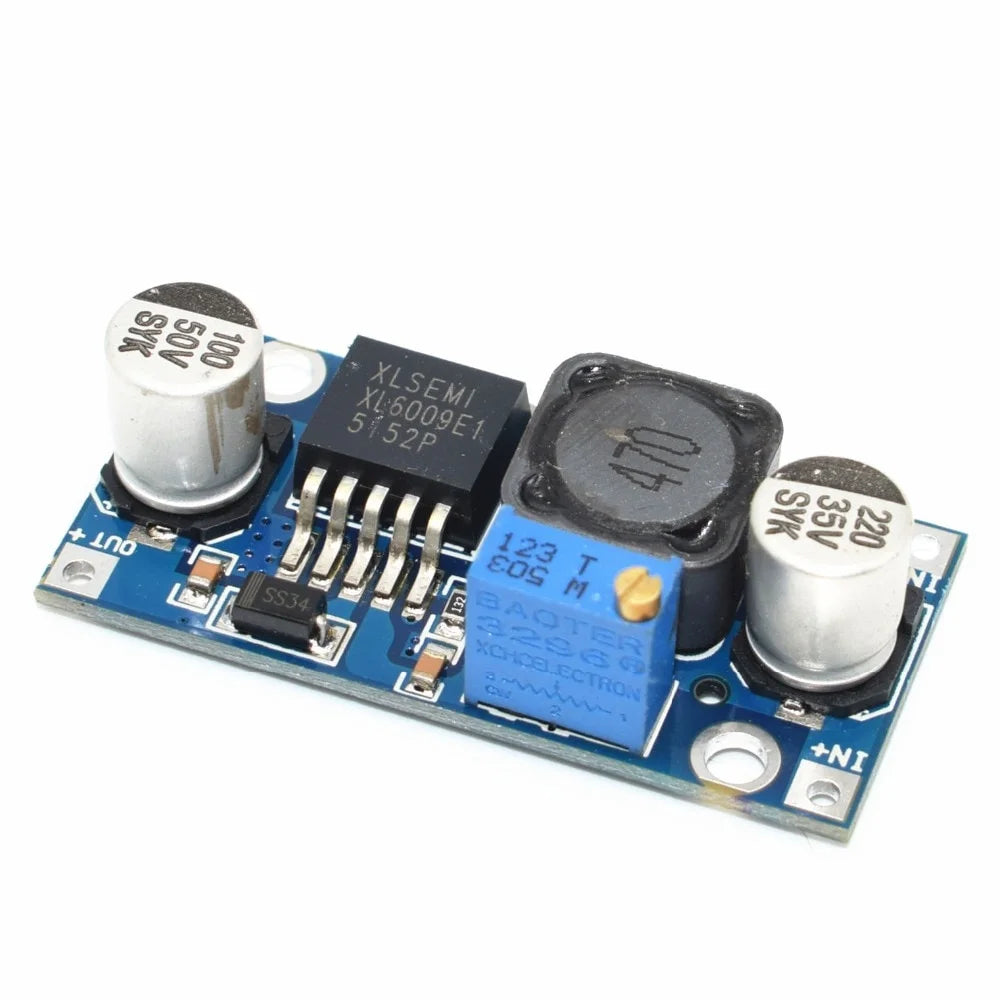

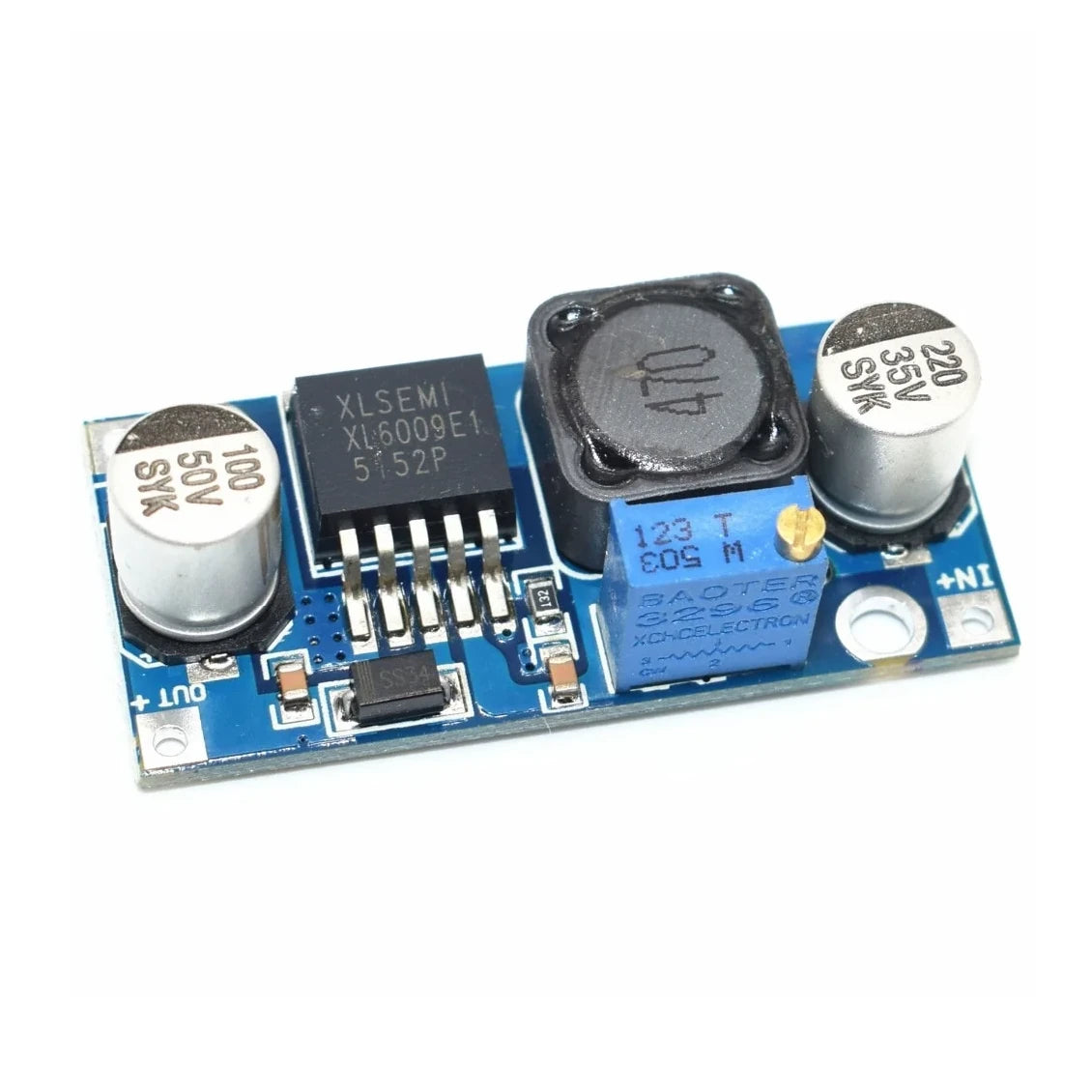

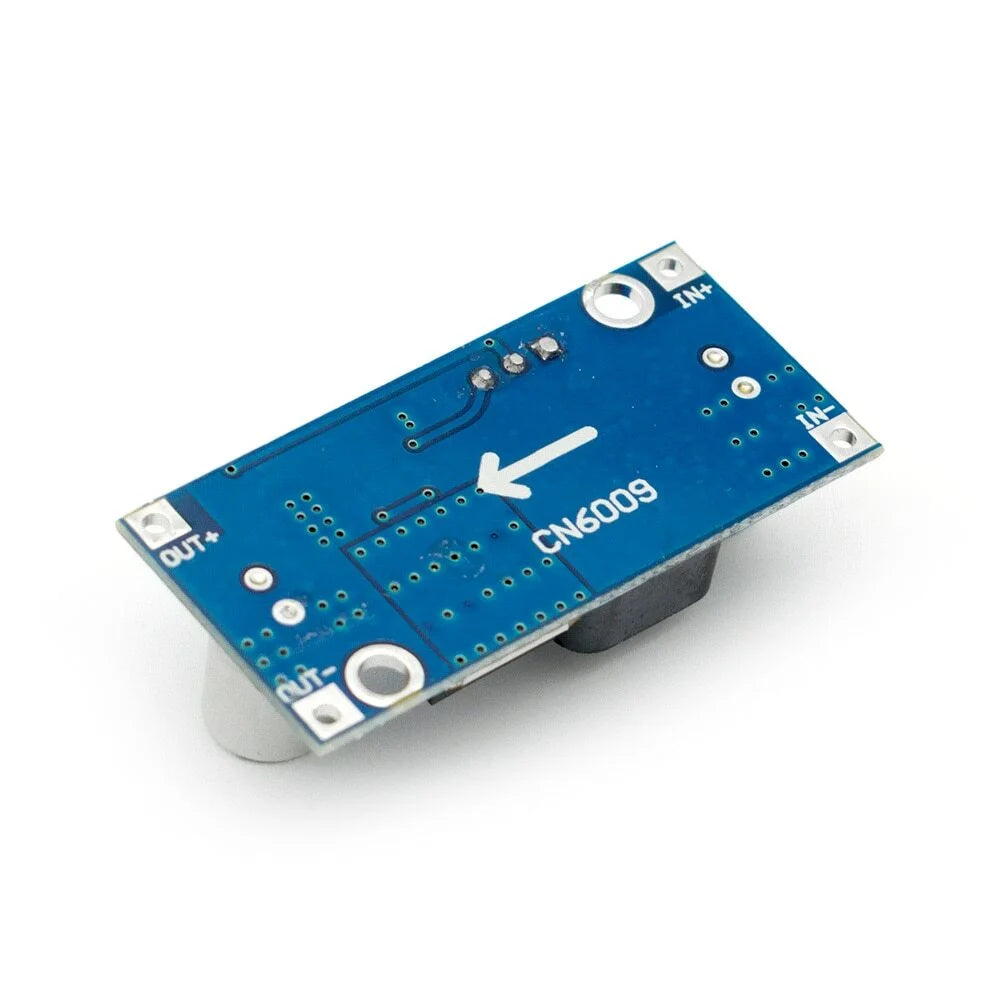

XL6009E1 Step Up Boost Converter 3-32V to 5-35V
XL6009E1 Step Up Boost Converter 3-32V to 5-35V
Regular price
£3.99 GBP
Regular price
Sale price
£3.99 GBP
Unit price
per
Shipping calculated at checkout.
Order Code: 34-043
Couldn't load pickup availability
- Adjustable voltage increase from 3-32V to 5-35V (Output voltage must be greater than input)
- Output voltage greater than input voltage
- Utilizes high efficiency MOSFET switches for up to 94% efficiency
- Non-isolated boost module with non-synchronous rectification
- Input range: 3V ~ 32V
- Output range: 5V ~ 35V
- Maximum input current: 4A (18mA no-load at 5V input, 8V output)
- Conversion efficiency: <94% (higher load reduces efficiency)
- Switching frequency: 400KHz
- Output ripple: 50mV (increases with voltage and current)
- Load regulation: +/-0.5%
- Voltage regulation: +/-0.5%
- Operating temperature: -40°C to +85°C

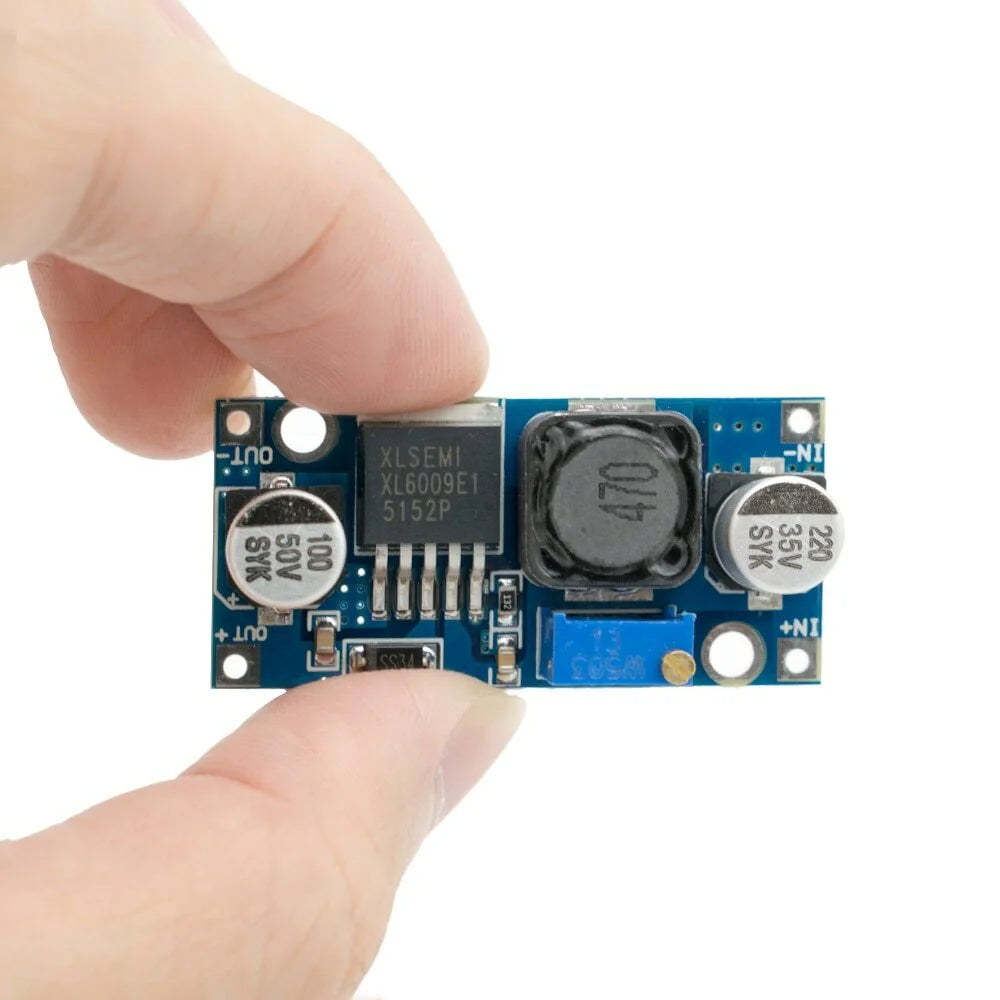

- Compact size: 43 x 20 x 12mm
