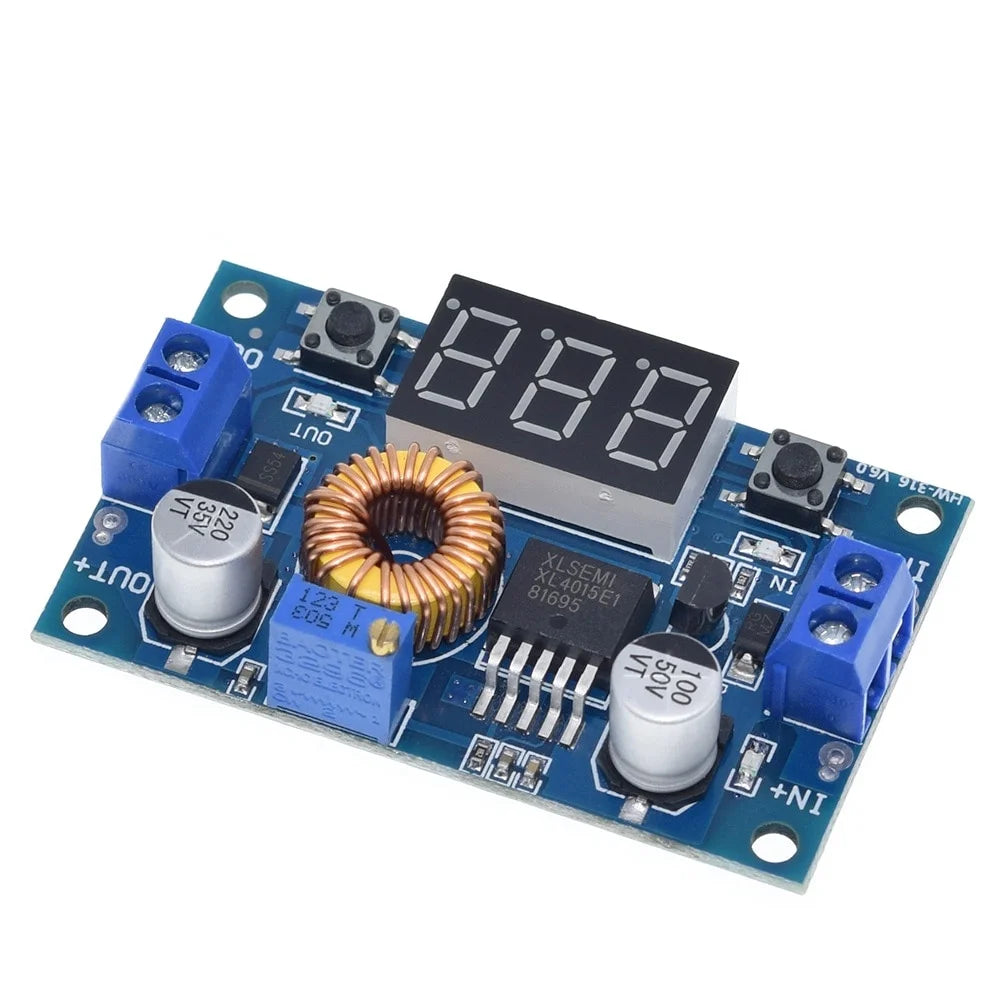

XL4015 with Display Voltmeter Adjustable Step Down Converter 5A 75W

Input voltage range: 4~38 V (Note: input voltage not exceeding 38V)
Output: 1.25-36V Adjustable  0-5A
Output power: 75W
Voltmeter range: 4 to 40V, error ±0.1V
Operating frequency: 180KHz
High efficiency up to 96%
Built in thermal shutdown function
Built in current limit function
Built in output short protection function
Input reverse polarity protection: None (if required, high current diode in series with the input).

Voltmeter calibration method:
(1) Output voltage calibration steps

Step 1, adjust the right button so that “OUT” LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.

Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.

Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
(2) Input voltage calibration steps

Step 1, adjust the right button so that “IN” LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.
Steps 2 and 3, consistent with the output voltage calibration method.

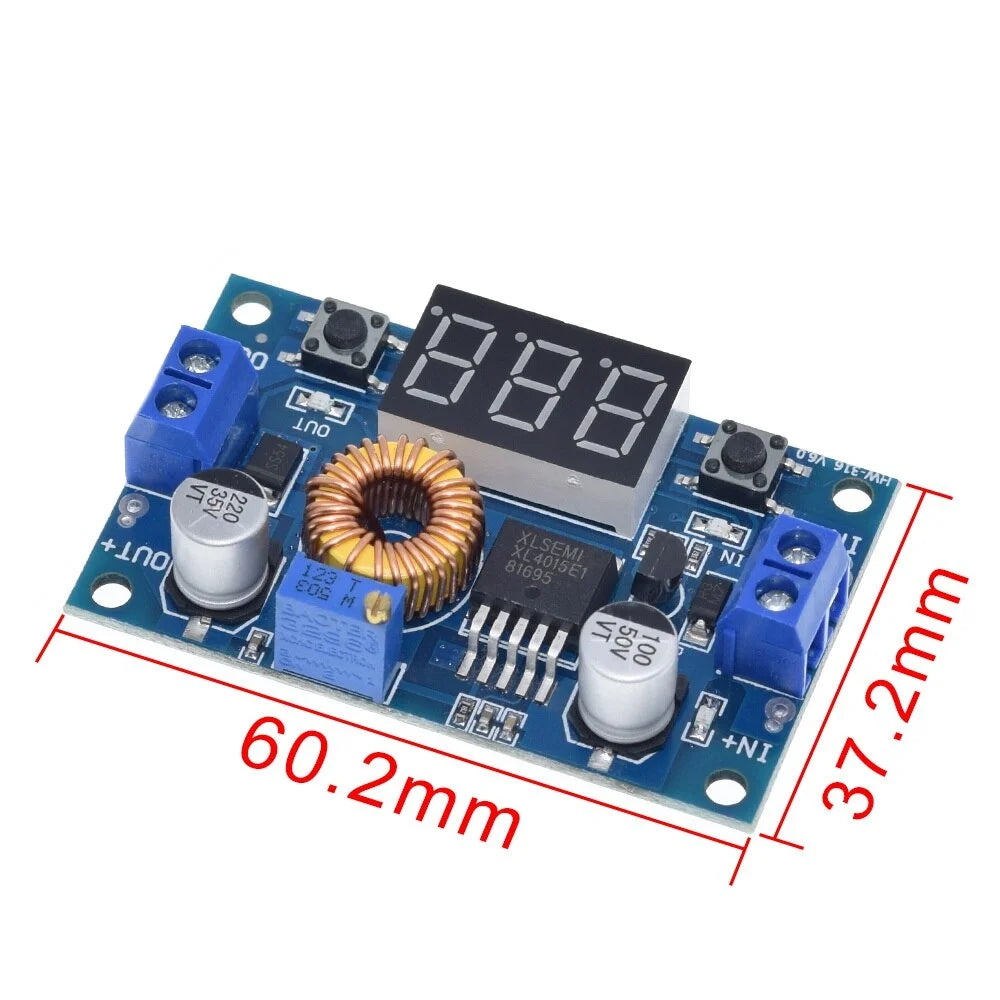

Size: 60 x 37mm

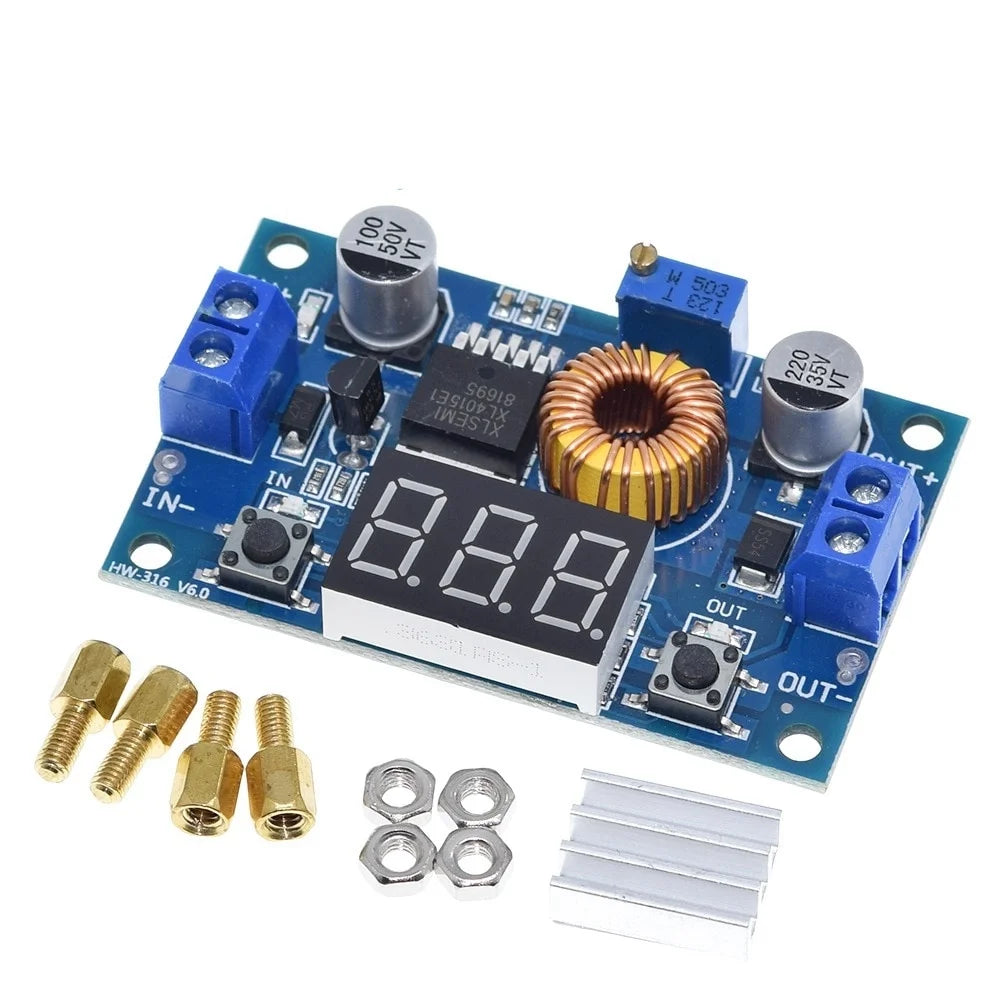

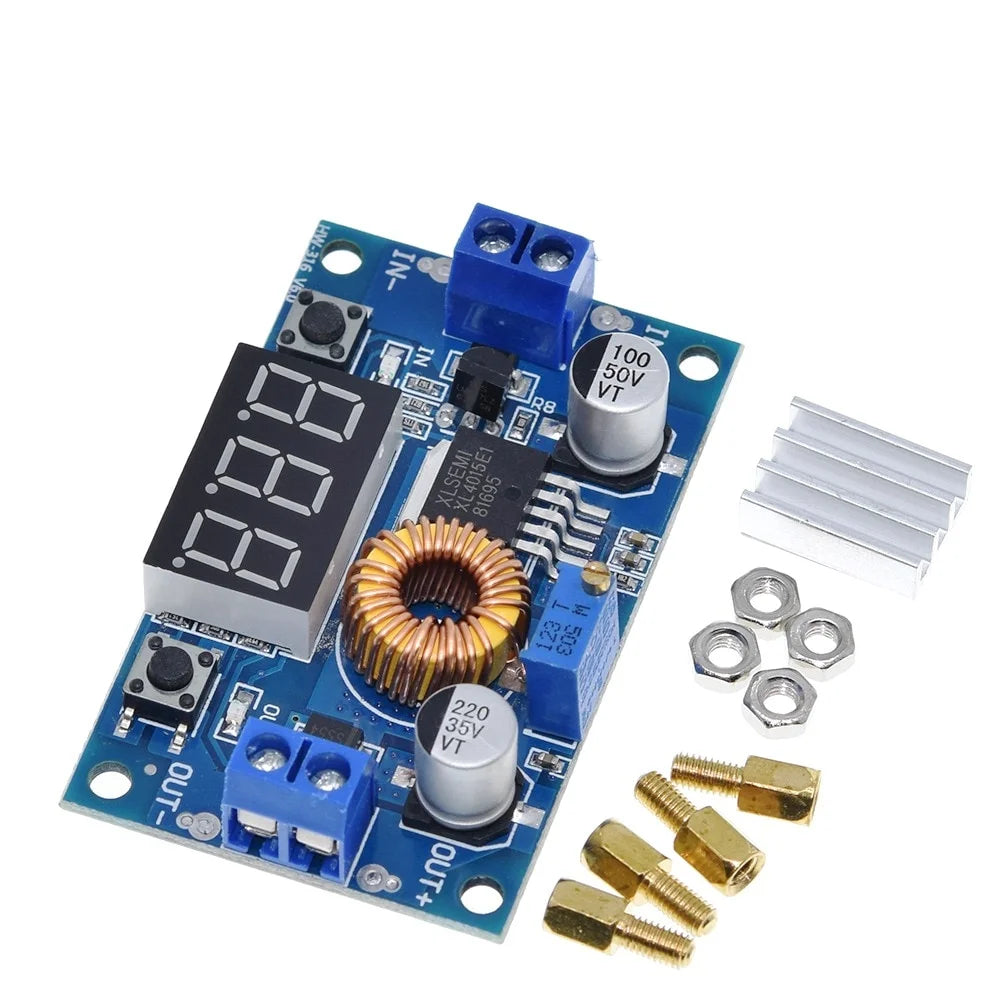

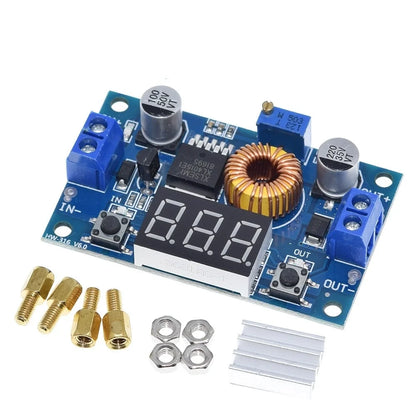

Package List:
1 x Module
4 x Screw
4 x Nut
1 x Big Nut
1x Gasket
