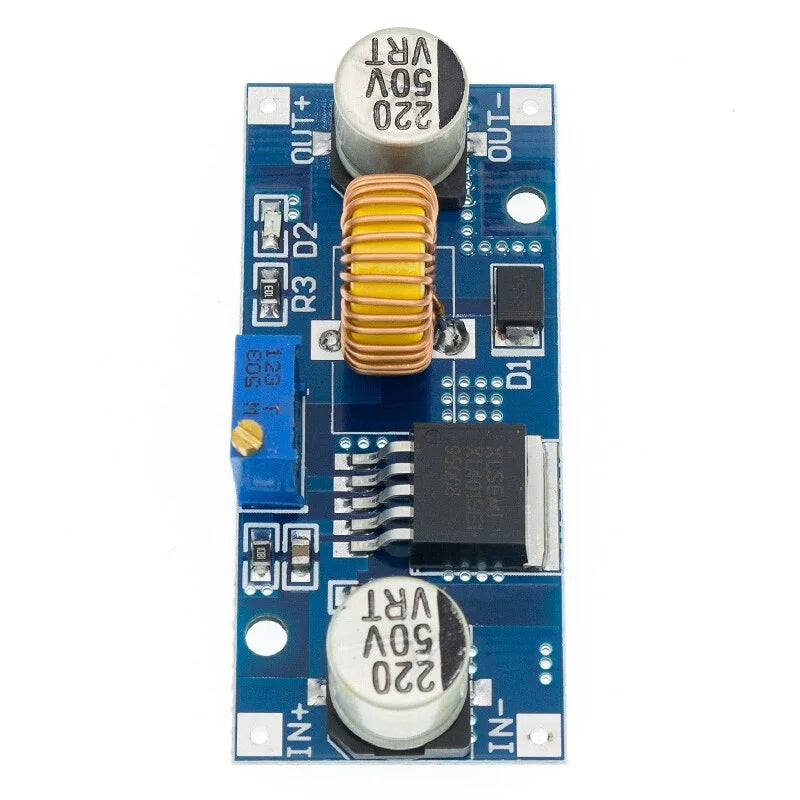

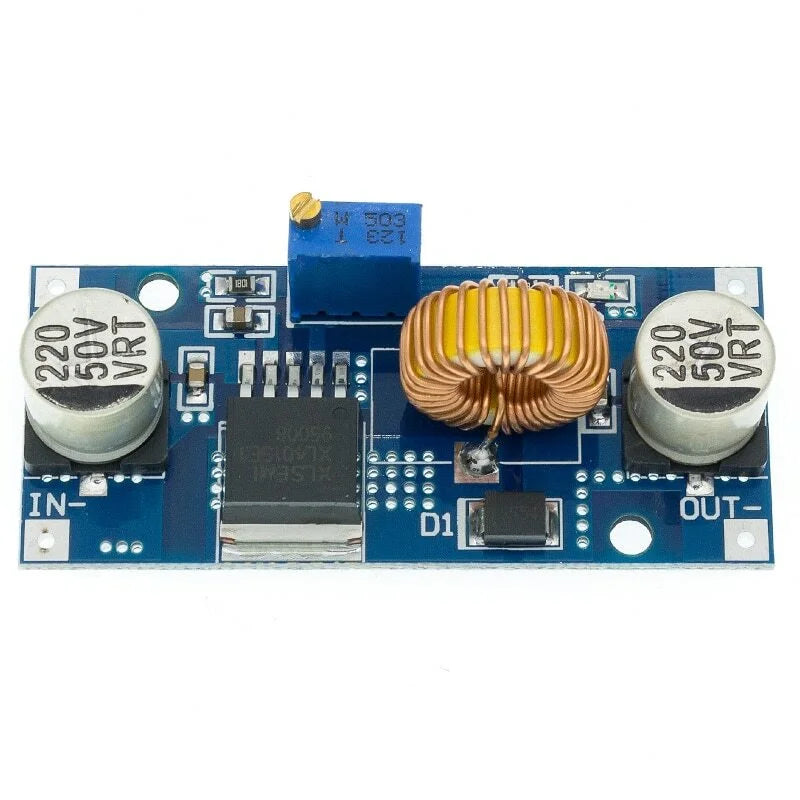

XL4015 5A DC-DC Step Down Adjustable Voltage Converter 4-38V to 1.25-36V

Key Features:

• Module Type: Non-isolated buck module (BUCK)
• Input Voltage: 4-38V (Do not exceed 38V)
• Adjustable Output Voltage: 1.25-36V
• Maximum Output Current: 0-5A
• High Output Power: Up to 75W
• Efficient Operation: Conversion efficiency up to 96%
• Temperature Range: Operates between -40 ~ +85 degrees Celsius
• High Frequency Operation: 180KHz
• Load Regulation: S (I) ≤ 0.8%
• Voltage Regulation: S (u) ≤ 0.8%
• Safety Features: Short circuit protection (limit current 8A) and over-temperature protection
• Power Indicator: Yes
• Installation Ease: Comes with 2 3mm screws for easy mounting
• Wiring Method: Welding (V-IN for input, V-OUT for output)

Applications: Ideal for a variety of buck applications including batteries, power transformers, DIY adjustable power supplies, vehicle power supplies, industrial equipment voltage reduction, and more.

Physical Dimensions:

• Size: 54 x 23 x 15mm

Package Contents:

• 1x XL4015 Module

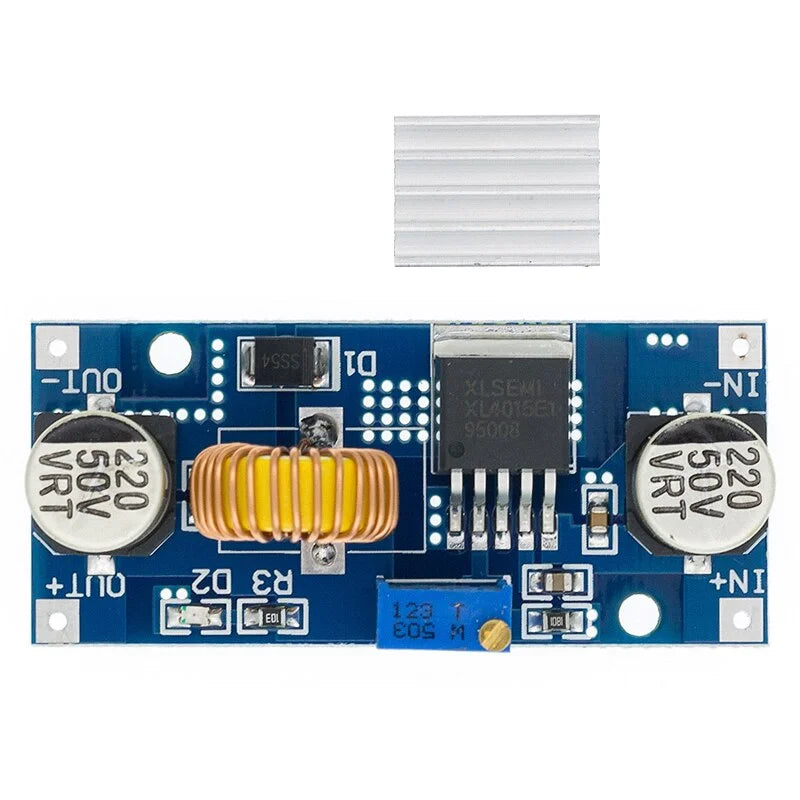

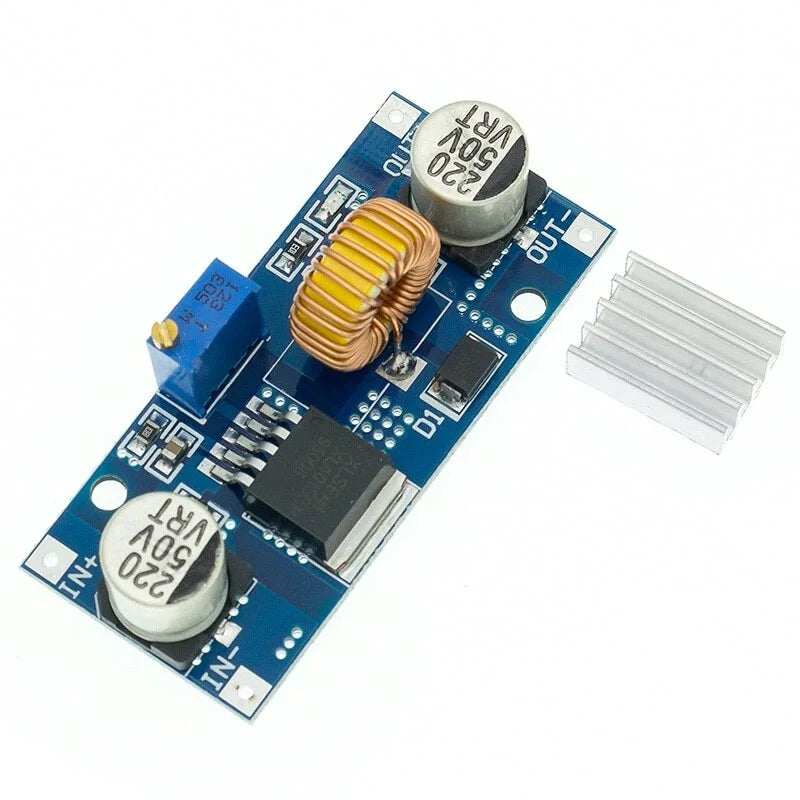

• 1x Heat sink
