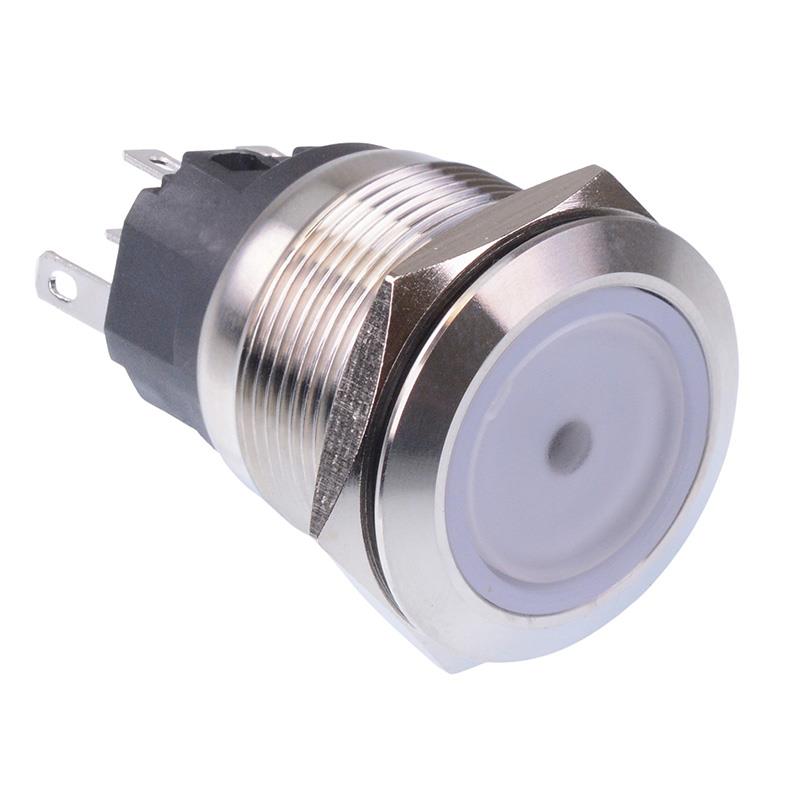

White LED Latching 22mm Vandal Push Button Switch DPDT 12V

Latching vandal resistant push button switch featuring a white LED requiring 12V supply voltage and 22mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.

Suitable for use with adhesive labels

Latching action

White 12V LED

Panel cut-out: 22mm

Panel thickness: 1-8mm

Current rating: 3A

Protection level: IP65

Contacts: 2NO/2NC

Material: stainless steel

Terminals: 2.8 x 0.5mm

Dimensions: 35.5 x 25mm (height x diameter)
