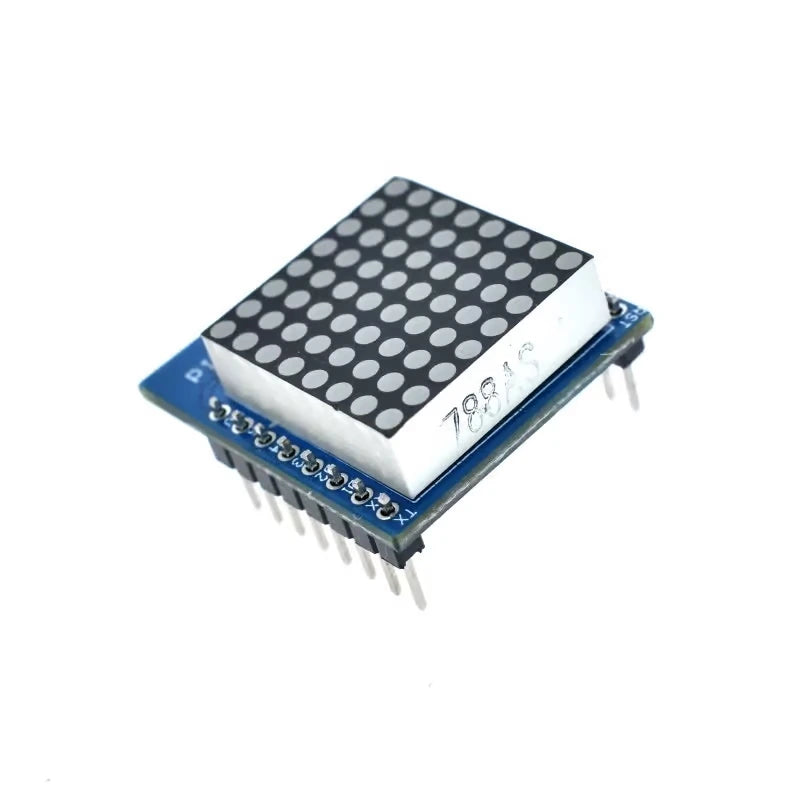

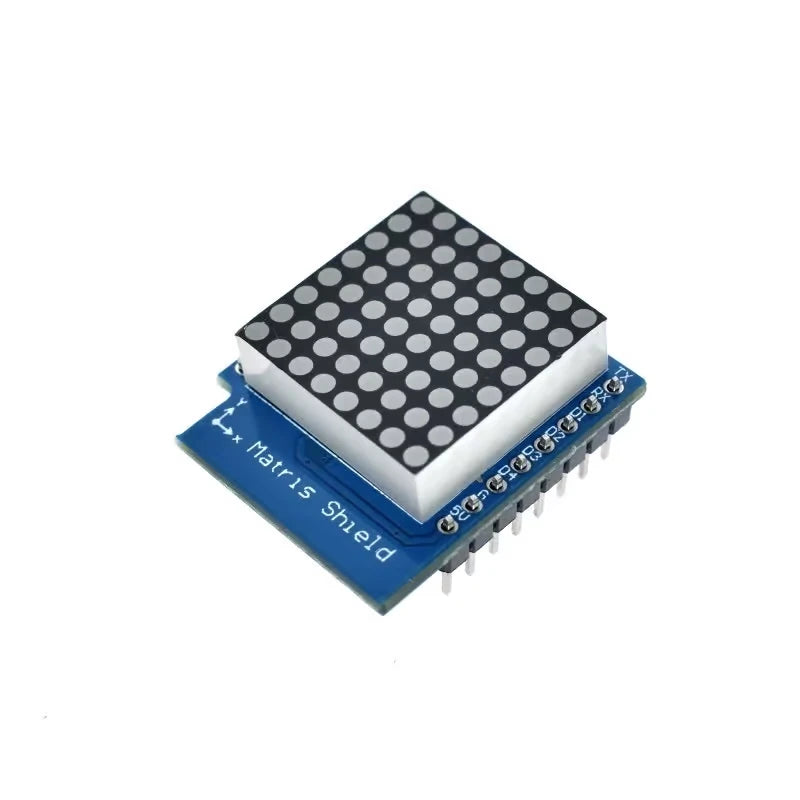

WEMOS D1 Mini Matrix LED Shield V1.0.0

Bring your IoT and ESP8266 projects to life with the WEMOS D1 Mini Matrix LED Shield V1.0.0, a compact, plug-and-play display module designed specifically for the WEMOS D1 Mini development board. This shield features an 8×8 LED matrix driven by the MAX7219 chip, allowing you to easily display text, numbers, animations, and custom patterns directly from your microcontroller.

Key Features:

• 8×8 LED Matrix Display: Perfect for creating scrolling text, symbols, or simple graphics.

• MAX7219 Driver Chip: Provides easy serial interface control using only a few GPIO pins.

• Plug-and-Play Shield: Designed to stack directly onto the WEMOS D1 Mini for quick prototyping.

• Daisy-Chain Support: Multiple shields can be connected for longer displays.

• Compatible with Arduino & MicroPython: Easily programmable through the WEMOS D1 Mini’s ESP8266 platform.

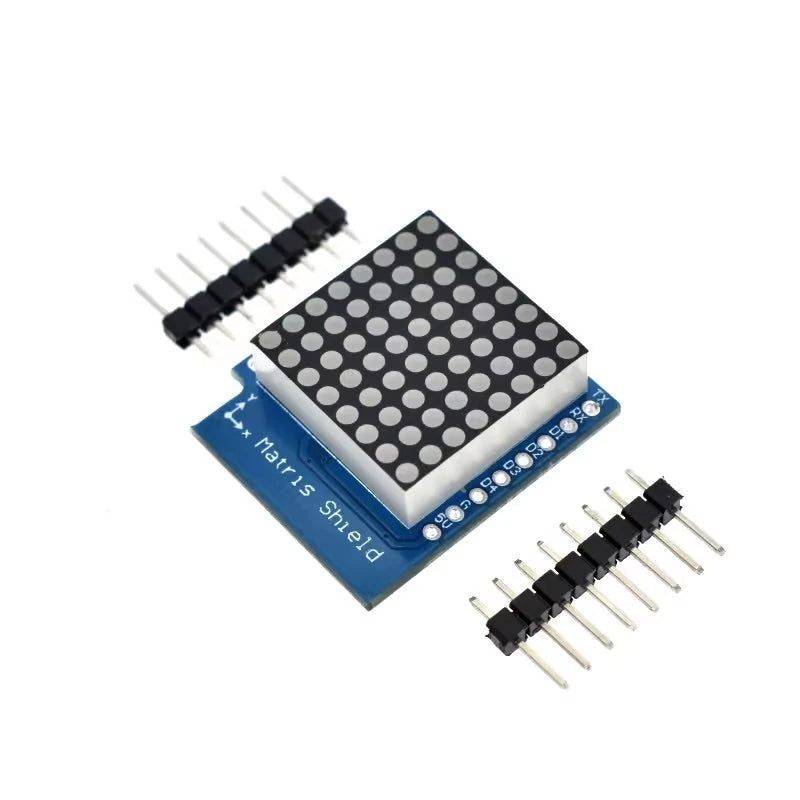

• Pre-soldered Pins: Ready to use right out of the box, no soldering required.

Specifications:

• Model: Matrix LED Shield V1.0.0

• Controller: MAX7219

• LED Matrix Size: 8×8 (64 LEDs)

• Interface: SPI (DIN, CS, CLK)

• Operating Voltage: 3.3V (powered through D1 Mini)

• Dimensions: Approx. 32mm × 32mm

• Compatibility: WEMOS D1 Mini, D1 Mini Pro, and other compatible ESP8266 boards

Applications:

• IoT status indicators

• Scrolling text or message displays

• Animation or pixel art projects

• Compact clocks or counters

• Educational electronics projects

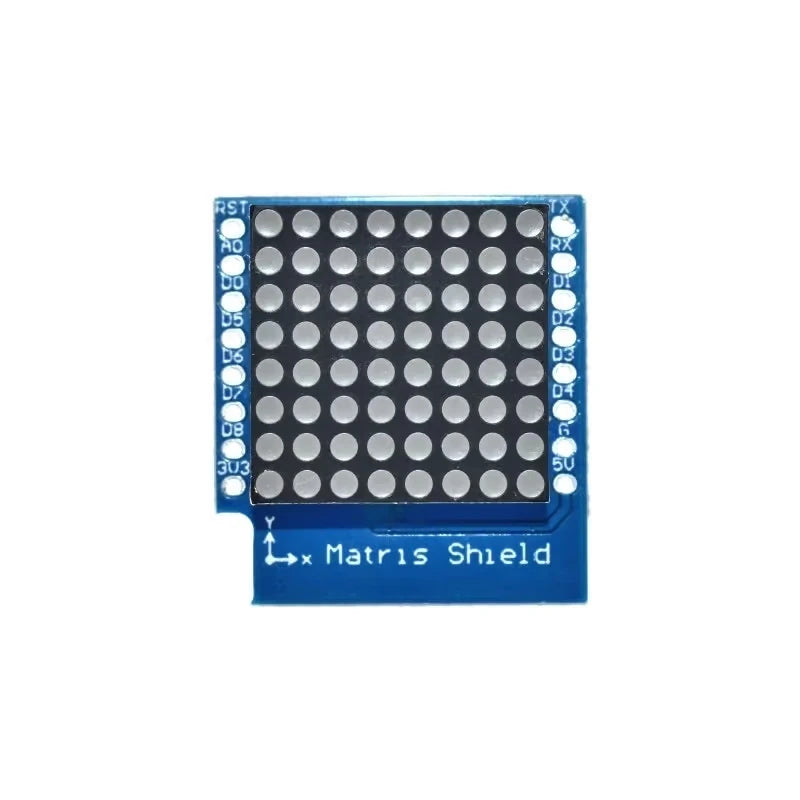

8×8 dot matrix LED
8 step adjustable intensity

Size:
24 x 30 mm
