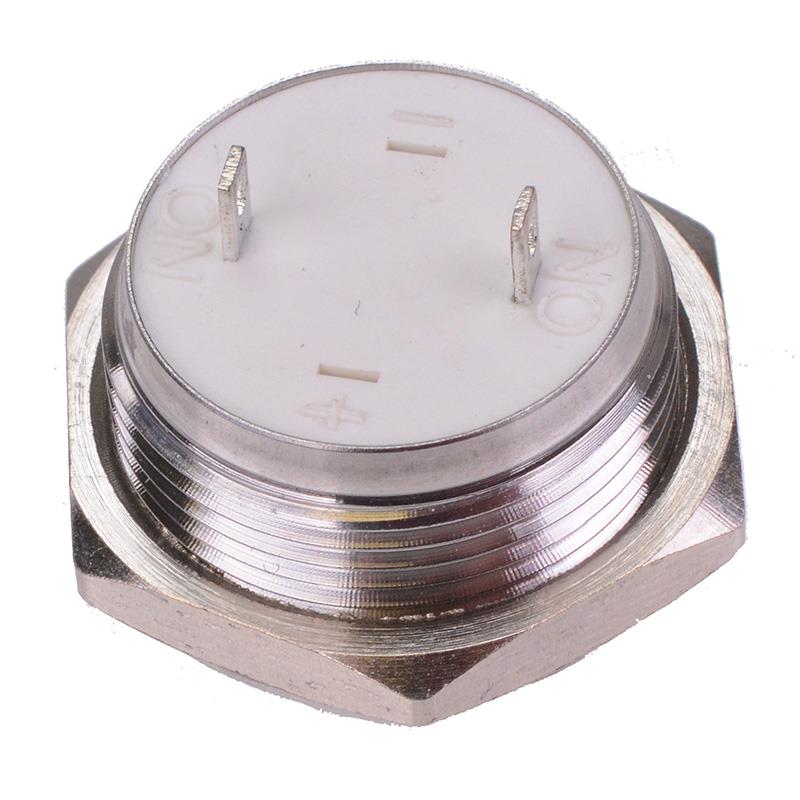

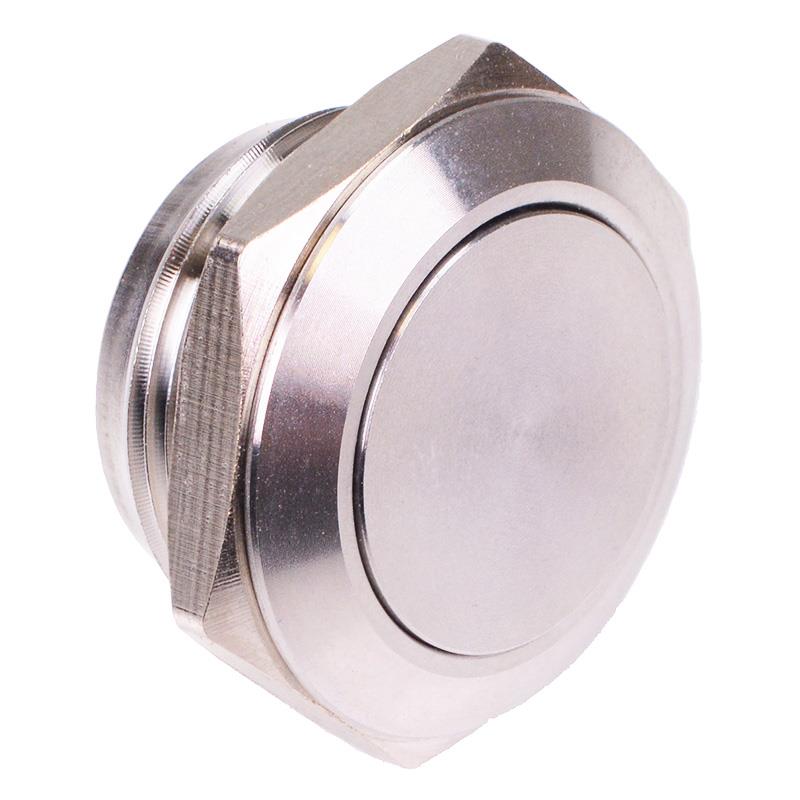

Vandal Resistant Off-(On) Momentary 19mm Short Push Button Switch SPST

Short body vandal resistant momentary push button switch manfuactured from stainless steel, featuring NO / NC contacts. The switch requires a 19mm panel cut-out making it suitable for applications with limited space behind the panel.

Momentary switch action

SPST-NO contacts

Panel cut-out: 19mm

Maximum panel thickness: 3mm

Rating: 50mA 24VDC

Protection rating: IP67

Solder terminals

Dimensions: 14.1 x 22mm (Length x Diameter)
