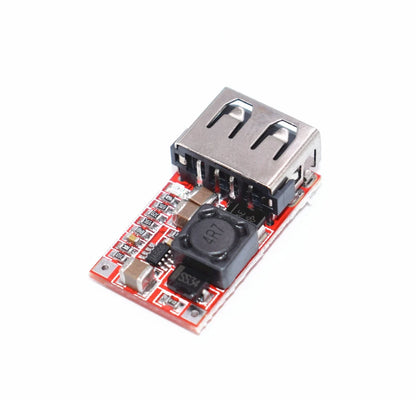

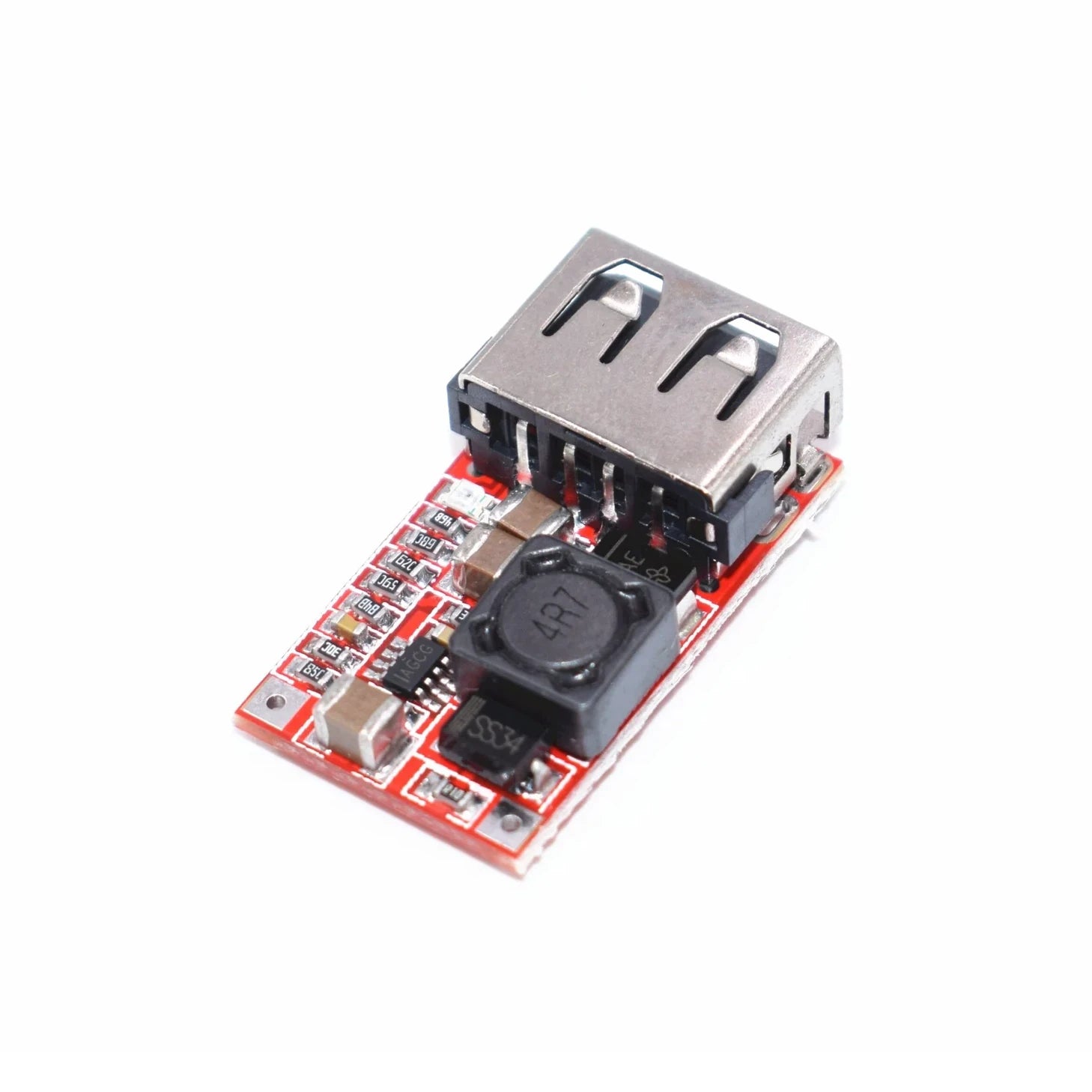

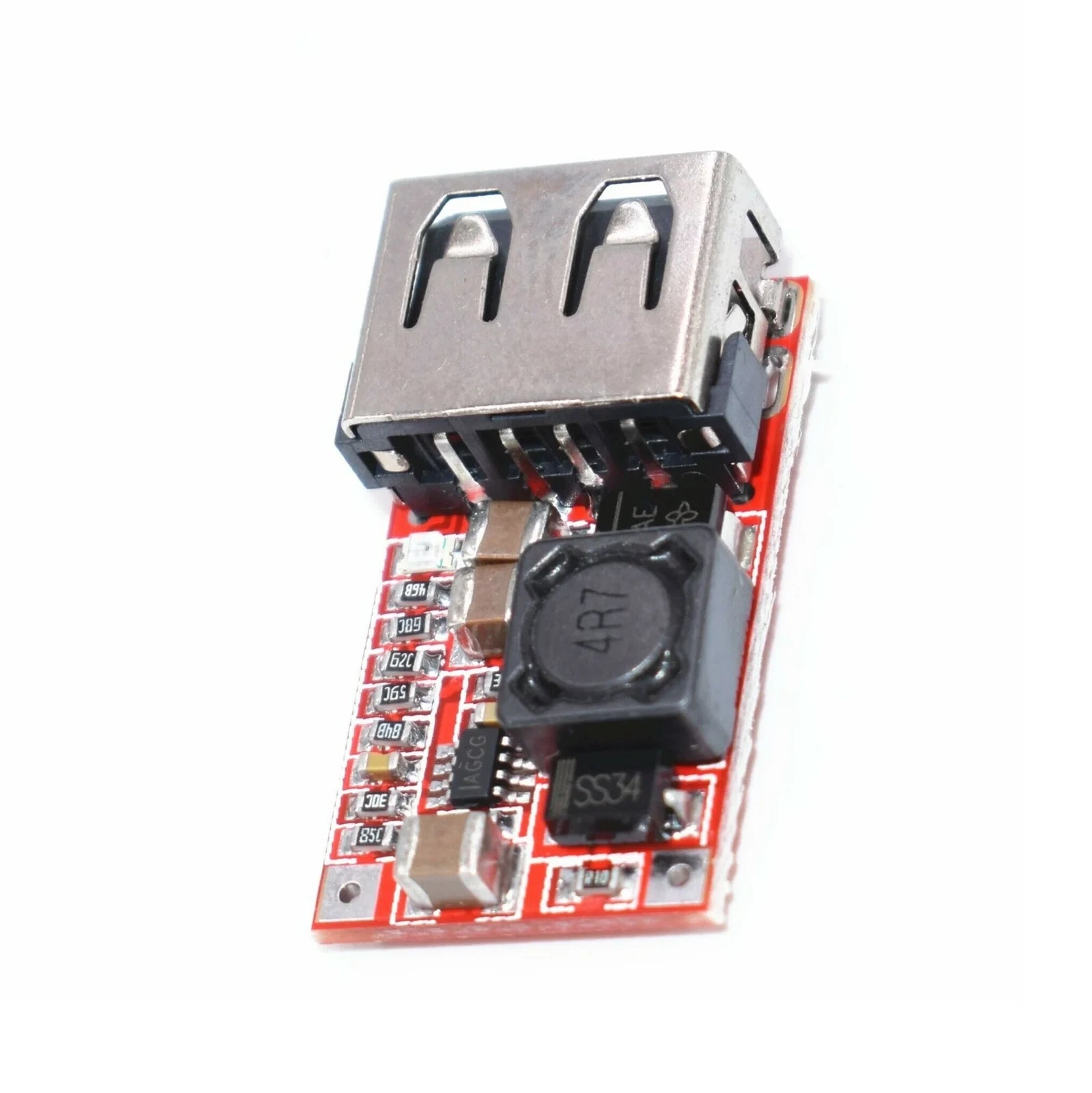

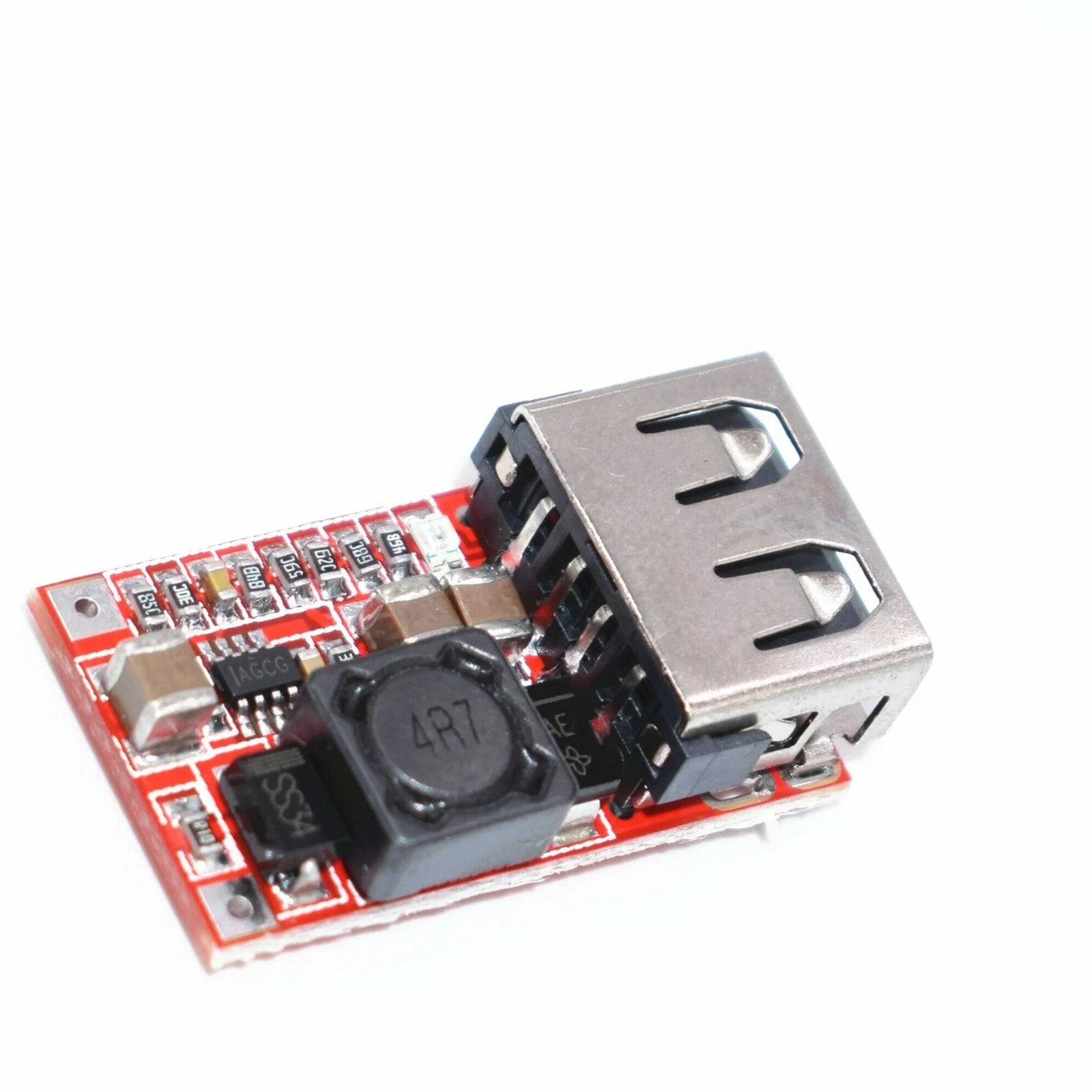

USB Step Down Buck Converter 6-24V to 5V

USB Step Down Buck Converter 6-24V to 5V

Regular price £2.49 GBP
Regular price Sale price £2.49 GBP
Sale Sold out
Shipping calculated at checkout.
Order Code: 34-040

Module Properties: non-isolated buck module (BUCK) synchronous rectification

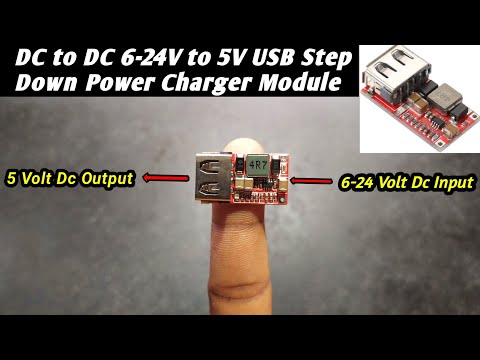

Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A MAX
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 Celsius to + 85 Celsius)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsius
Static current: 0.85 mA
Load regulation: ± 1%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: Yes, but please do not short circuit for a long time
Input reverse polarity protection: Yes, there is reverse polarity protection diode
