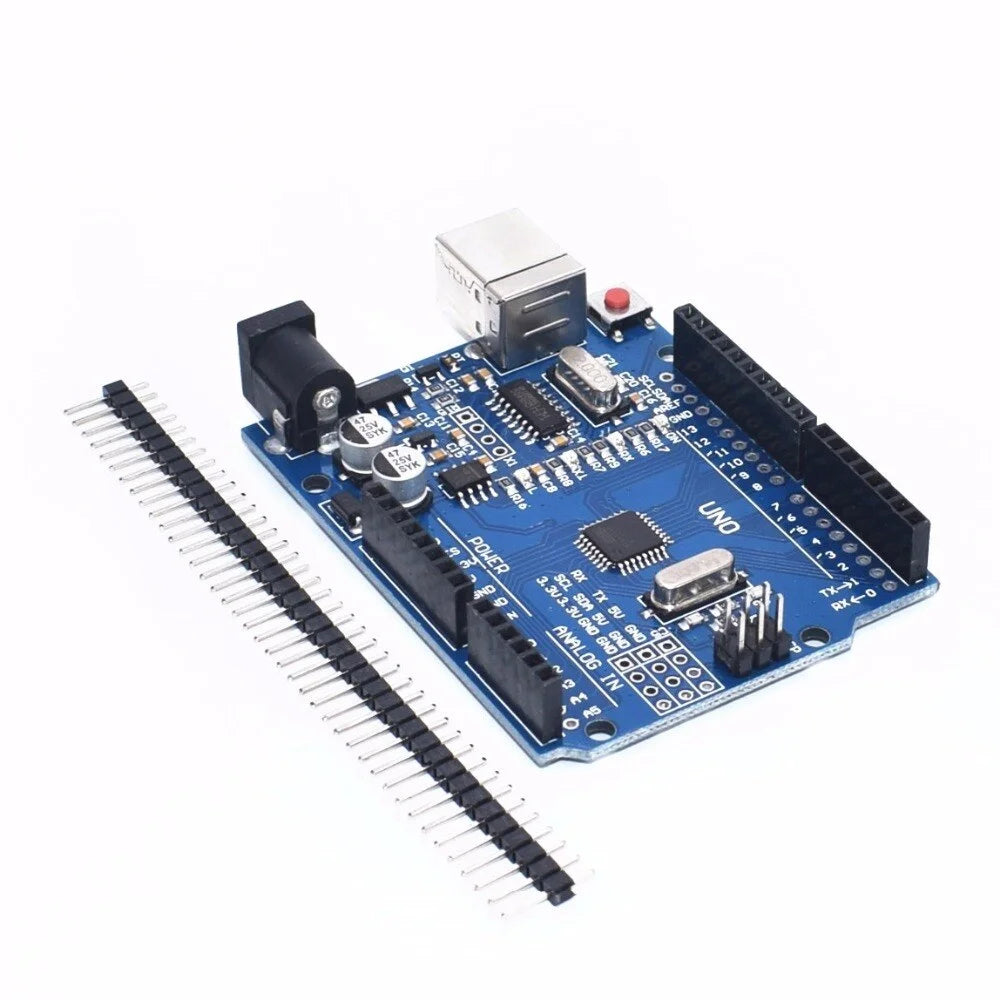

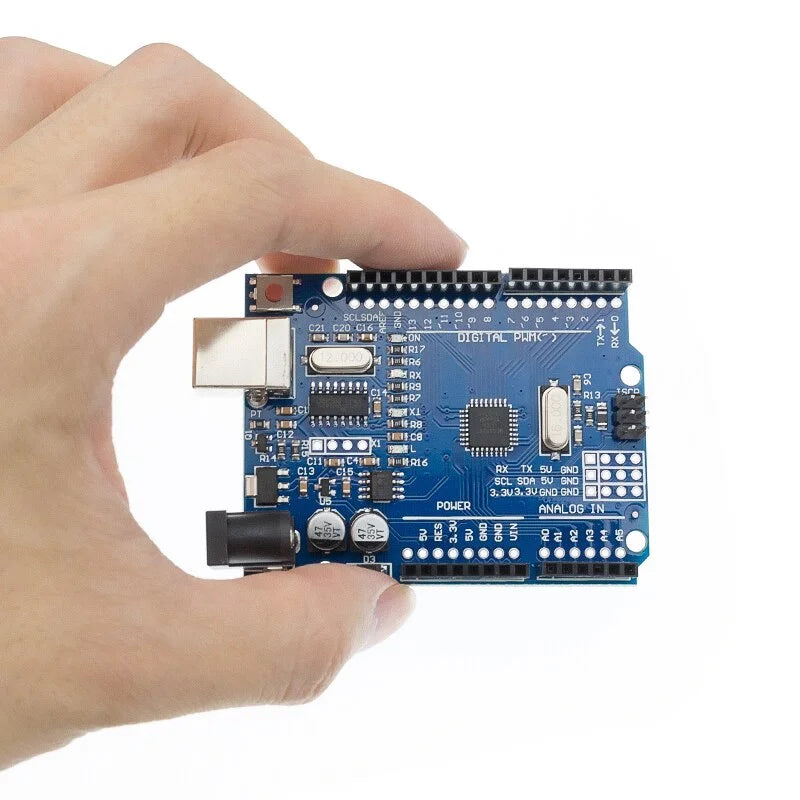

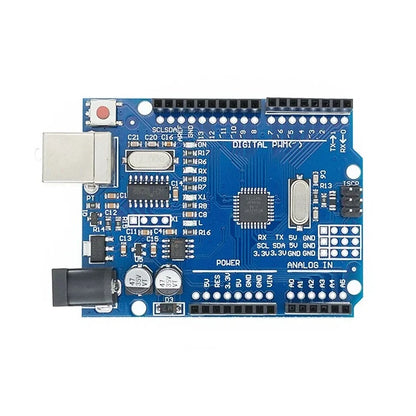

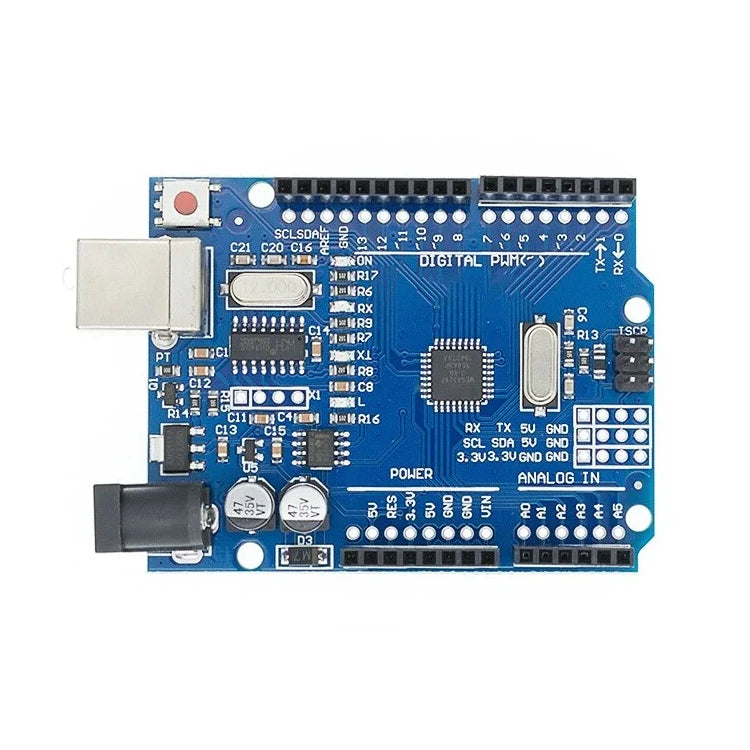

UNO Arduino Compatible Development Board, ATmega2560
UNO Arduino Compatible Development Board, ATmega2560
Regular price
£6.99 GBP
Regular price
Sale price
£6.99 GBP
Unit price
/
per
UNO Arduino Compatible Board Key Features:
- Dynamic I/O Options: Comes with a whopping 54 digital input/output pins, out of which 14 can be designated as PWM outputs.
- Multiple UARTs: Equipped with 4 UARTs, simplifying your device-to-device communications.
- Plug & Play: Integrated USB connection for straightforward computer interfacing, alongside a power jack and reset button for smooth operations.
- Upgraded Chipset: Features the CH340G, replacing the older ATmega 8U2/16U2 for enhanced performance.
Specifications of UNO Arduino:
- Microcontroller Core: ATmega2560
- Clock Pulse: Consistent 16 MHz crystal oscillator
-
Memory:
- EEPROM: 4 KB
- SRAM: 8 KB
- Flash Memory: 256 KB (Note: 8 KB used by the bootloader)
- Operating Voltage: Steady 5V
- Input Voltage (Advised): A range between 7-12V
-
Diverse Pin Set-Up:
- Analogue Input Pins: 16
- Digital I/O Pins: 54 (14 of these can output PWM signals)
-
Current Specifications:
- DC Current for 3.3V Pin: 50 mA
- DC Current for each I/O Pin: 40 mA
- Board Dimensions: Compact at 100 x 55 mm
Why Choose Kunkune’s UNO Arduino Development Board? Whether you’re crafting a sophisticated automation project or diving into the Arduino ecosystem for the first time, this board is tailored to meet diverse needs. Reliable, versatile, and packed with features, it’s your passport to the future of electronics. Dive into the digital age with Kunkune – the UK’s trusted hub for premium electronic supplies.
