TP33W008200 APEM Off-(On) Momentary Subminiature Washable PCB Push Button Switch SPST

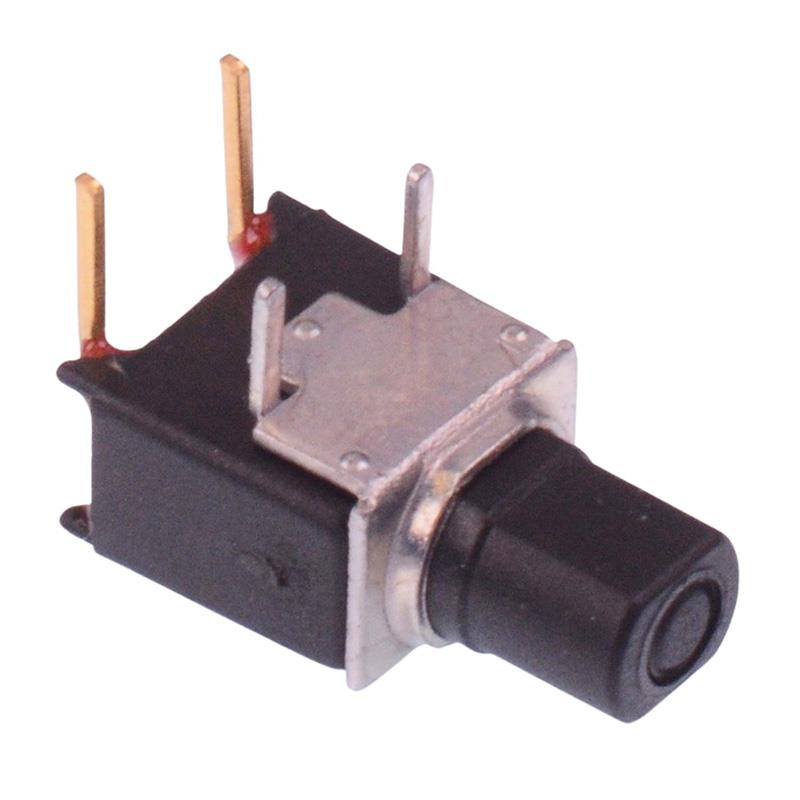

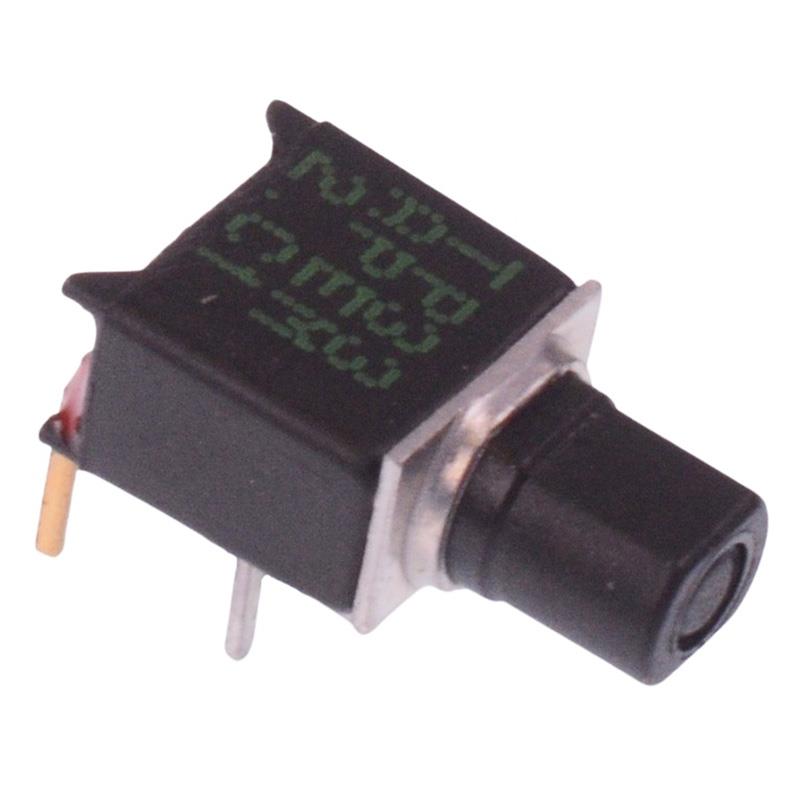

The TP33W008200 is a momentary sub-miniature push button switch manufactured by APEM featuring SPST contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

Off-(On) momentary operation

SPST contacts

Right angle PCB terminals

Horizontal mounting

Flush black case

Gold plated brass terminals

5.08mm pitch

Rating: 0.4A 20VAC/DC
