Product Description

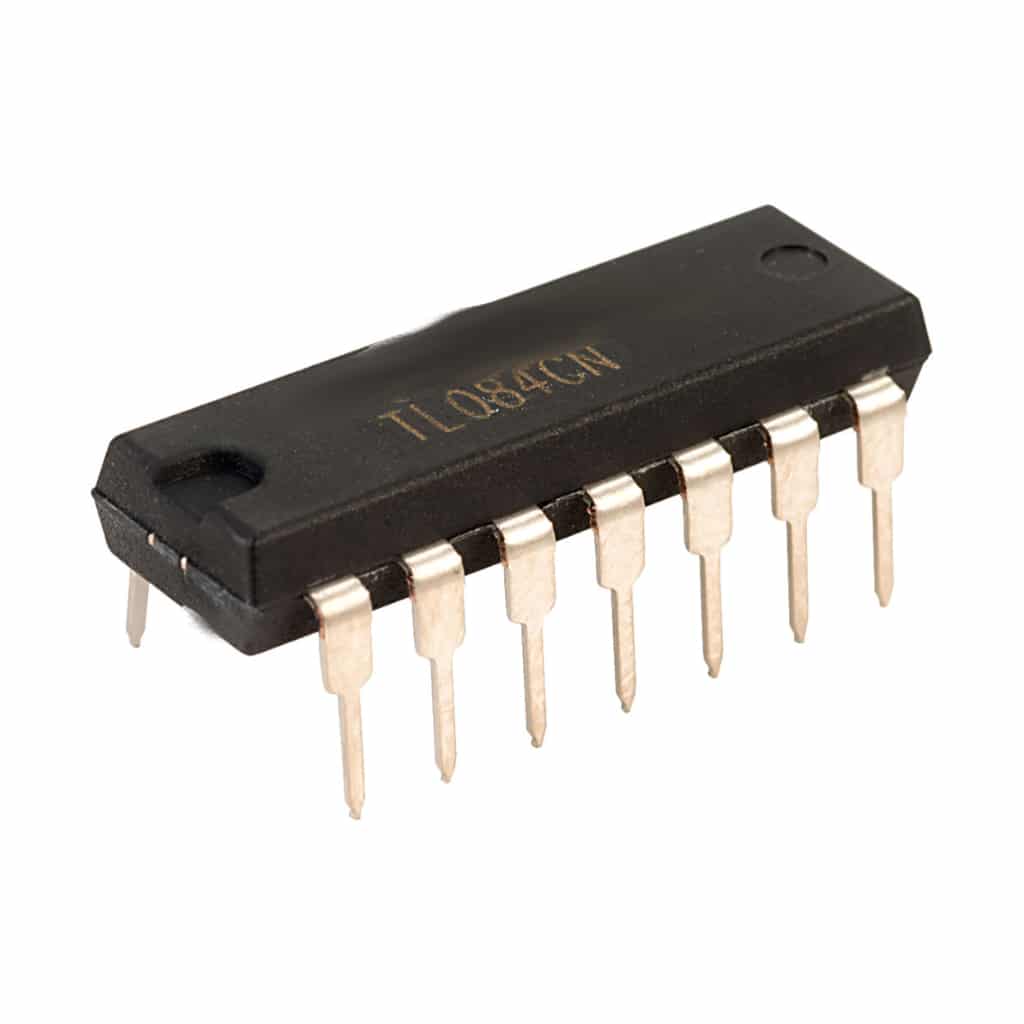

A low-cost general purpose range of JFET op-amps featuring high slew rates, low distortion, low input bias and offset currents, and low offset voltage temperature coefficient. Each device features a well-matched, high voltage JFET and bi-polar transistors in a monolithic IC package. TL084C0 is a quad version in a 14-pin DIL package.
Specifications
| Amplifiers | 4 |
| Op-Amp Type | TL084CN |
| Slew rate | 16V/us |
| DC input offset voltage | 3mV |
| Gain | 200V/mV |
| CMRR | 86dB |
| Bandwidth | 4MHz |
| Supply Voltage | 6 to 36V |
| Operating Temperature Range | 0 to +70°C |
| Case | DIL-14 |
