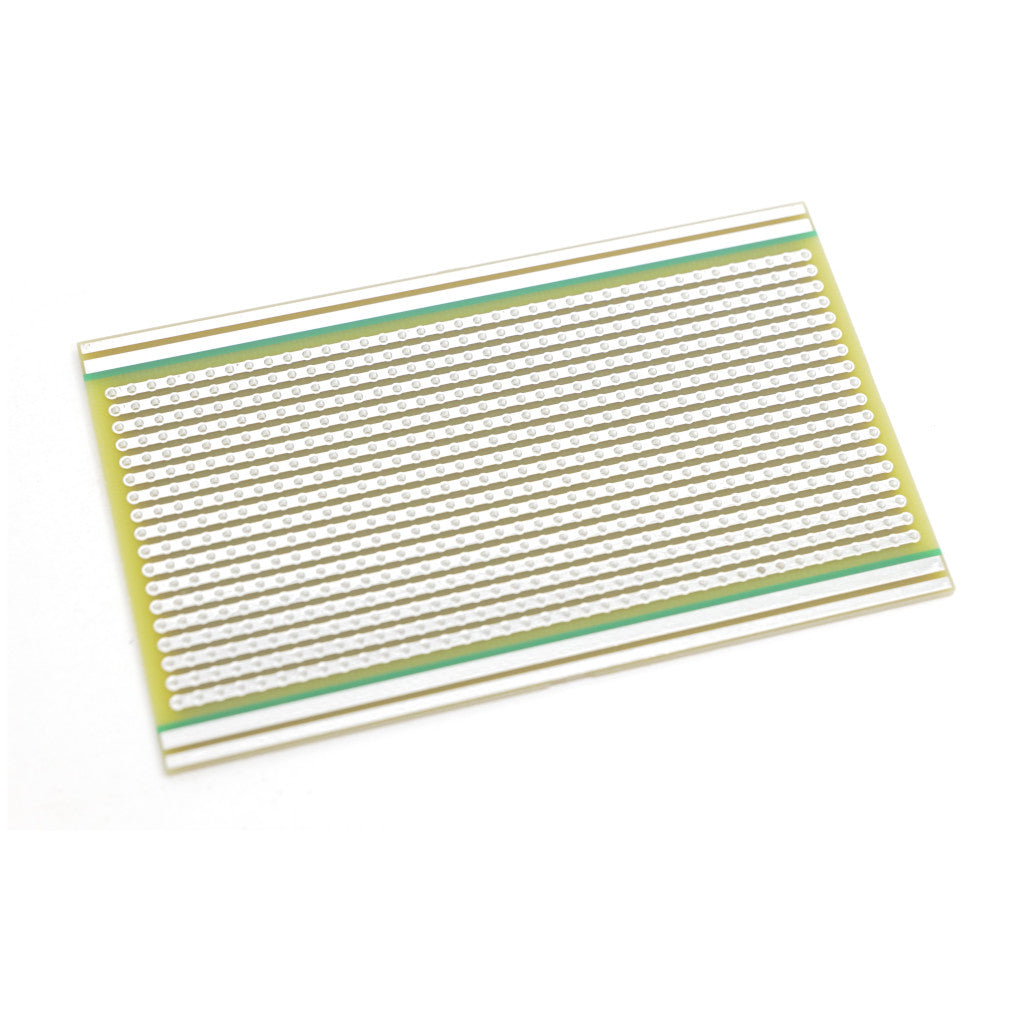

Stripboard, 100mm X 60mm DS
Stripboard, 100mm X 60mm DS
Order Code: 33-130
The 100 x 60 DS Stripboard is a versatile double-sided prototyping board with a 2.54mm grid, offering increased flexibility and routing options for complex circuit designs.
The 100 x 60 DS Stripboard is the ultimate tool for advanced prototyping and circuit design. Manufactured from durable FR4 material and featuring a double-sided plated-through-hole design, this stripboard significantly expands your routing options, making it ideal for complex projects requiring compact layouts and high connectivity.
With high-density power rails and a standard 2.54mm grid layout, the 100 x 60 DS Stripboard is compatible with a wide range of through-hole components. The double-sided tracks allow for efficient use of space, enabling the creation of intricate circuits while maintaining a clean and organised layout. Whether you’re building a prototype or a permanent solution, this stripboard delivers unmatched performance and reliability.
Product Specifics
-
Material: FR4 (fibreglass-reinforced laminate)
-
Dimensions: 100mm x 60mm
-
Grid Spacing: 2.54mm
-
Tracks: Double-sided plated-through holes for enhanced routing
-
Power Rails: High-density power rails for efficient power distribution
-
Soldering Compatibility: Suitable for high-temperature soldering, including lead-free solder
Included In This Kit
- - 1 x 100 x 60 DS Stripboard
Applications
The 100 x 60 DS Stripboard is ideal for:
-
Prototyping complex circuits requiring double-sided connections.
-
Projects needing efficient routing and high-density layouts.
-
Advanced designs requiring robust power and ground distribution.
-
Educational and professional projects benefiting from durable, high-quality materials.
