SMD Stripboard, 50mm X 25mm SS (3 Pack)
SMD Stripboard, 50mm X 25mm SS (3 Pack)
Order Code: 33-128

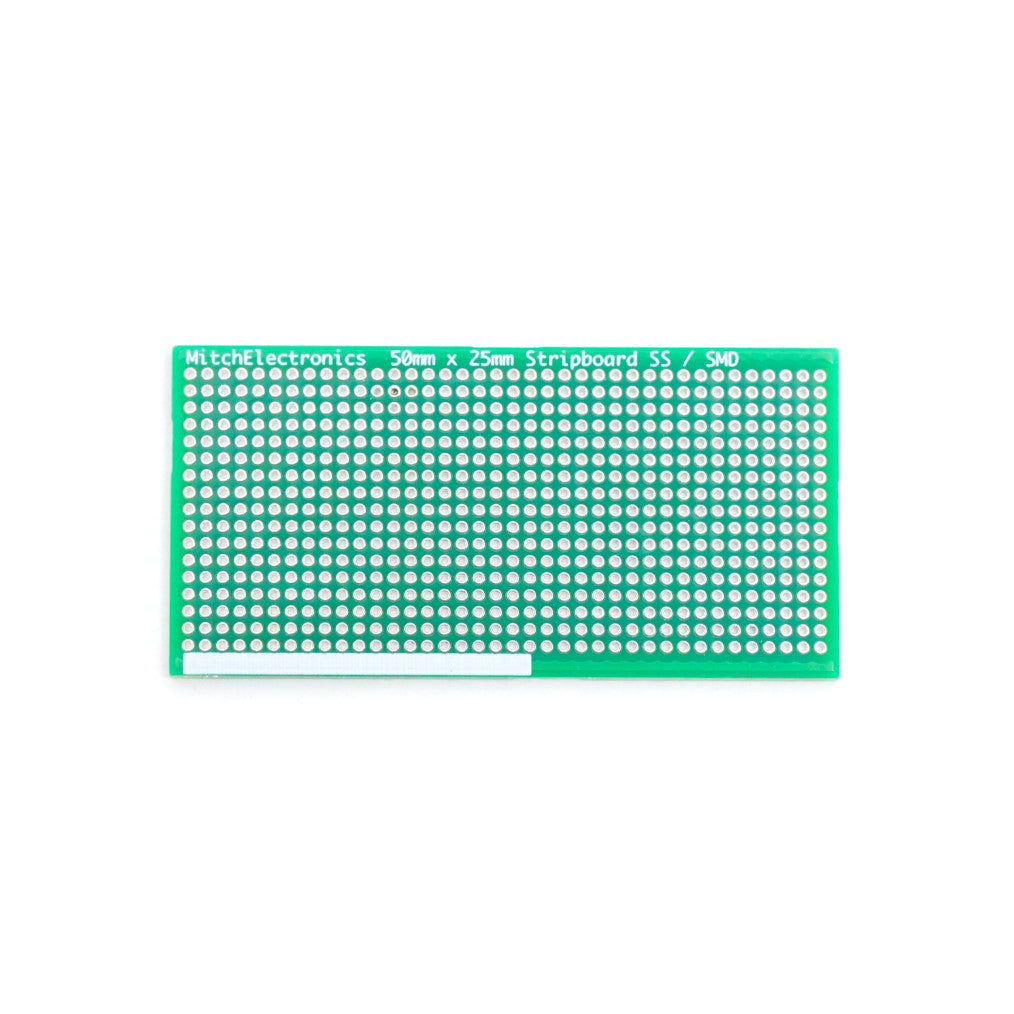

The SMD 50mm x 25mm Stripboard is a compact prototyping board designed for surface-mount devices (SMDs), featuring a 1.27mm grid and optimised for modern, miniaturised circuits.
The SMD 50mm x 25mm Stripboard revolutionises prototyping with surface-mount components, offering a compact design with a 1.27mm grid layout tailored for modern SMD devices. Manufactured from durable FR4 material, it is ideal for high-density, miniature electronics projects.
This stripboard is designed specifically to integrate seamlessly with SMD parts like the AMS1117 voltage regulator and other small-outline ICs. Its compact size and precision-engineered layout eliminate the need for additional PCBs or adapters, streamlining your prototyping process. Whether you're a maker, engineer, or educator, the SMD 50mm x 25mm Stripboard is your go-to tool for small-scale SMD circuit development.
Product Specifics
-
Material: FR4 (fibreglass-reinforced laminate)
-
Dimensions: 50mm x 25mm
-
Grid Spacing: 1.27mm, optimised for surface-mount devices (SMD)
-

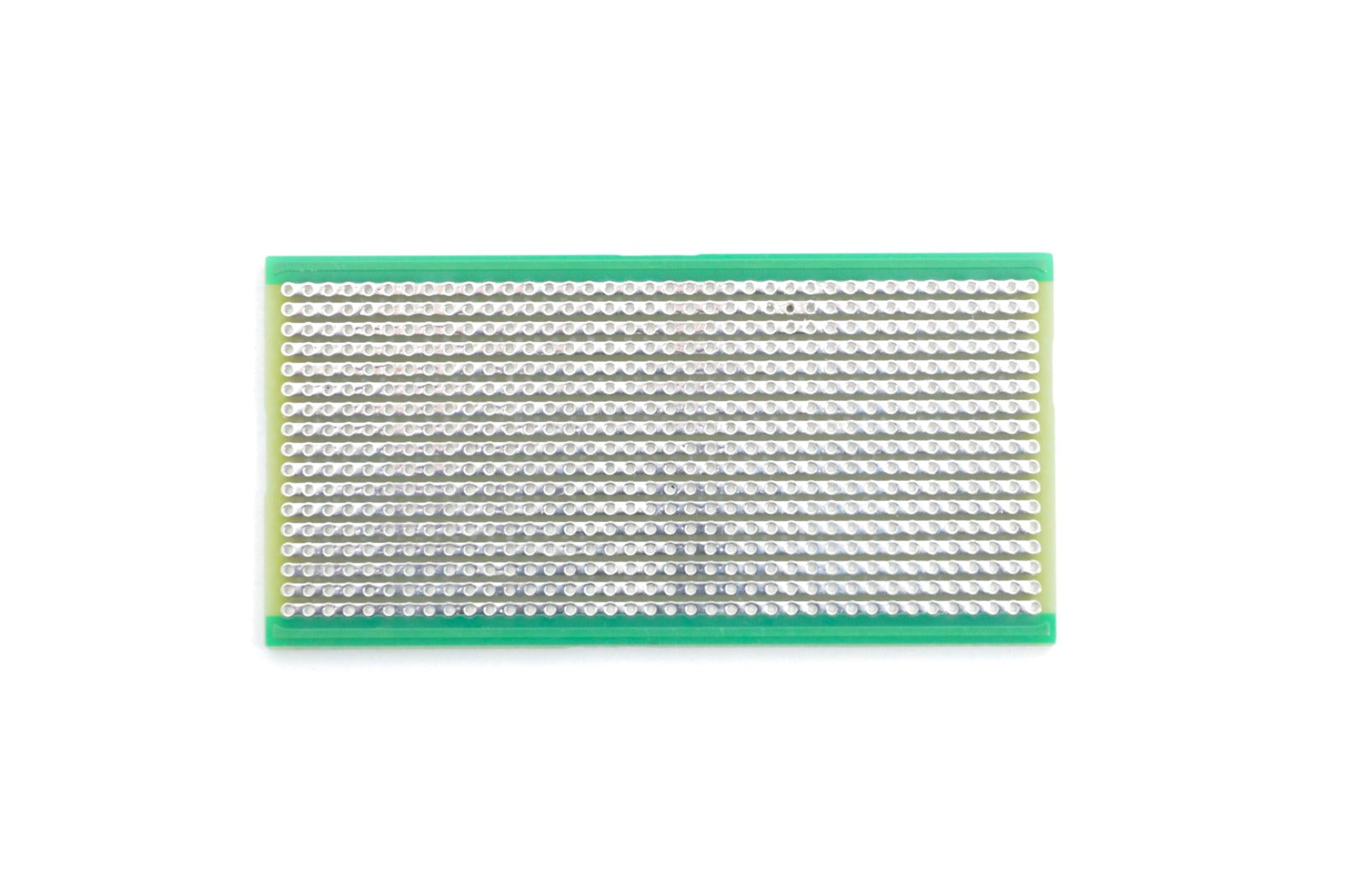

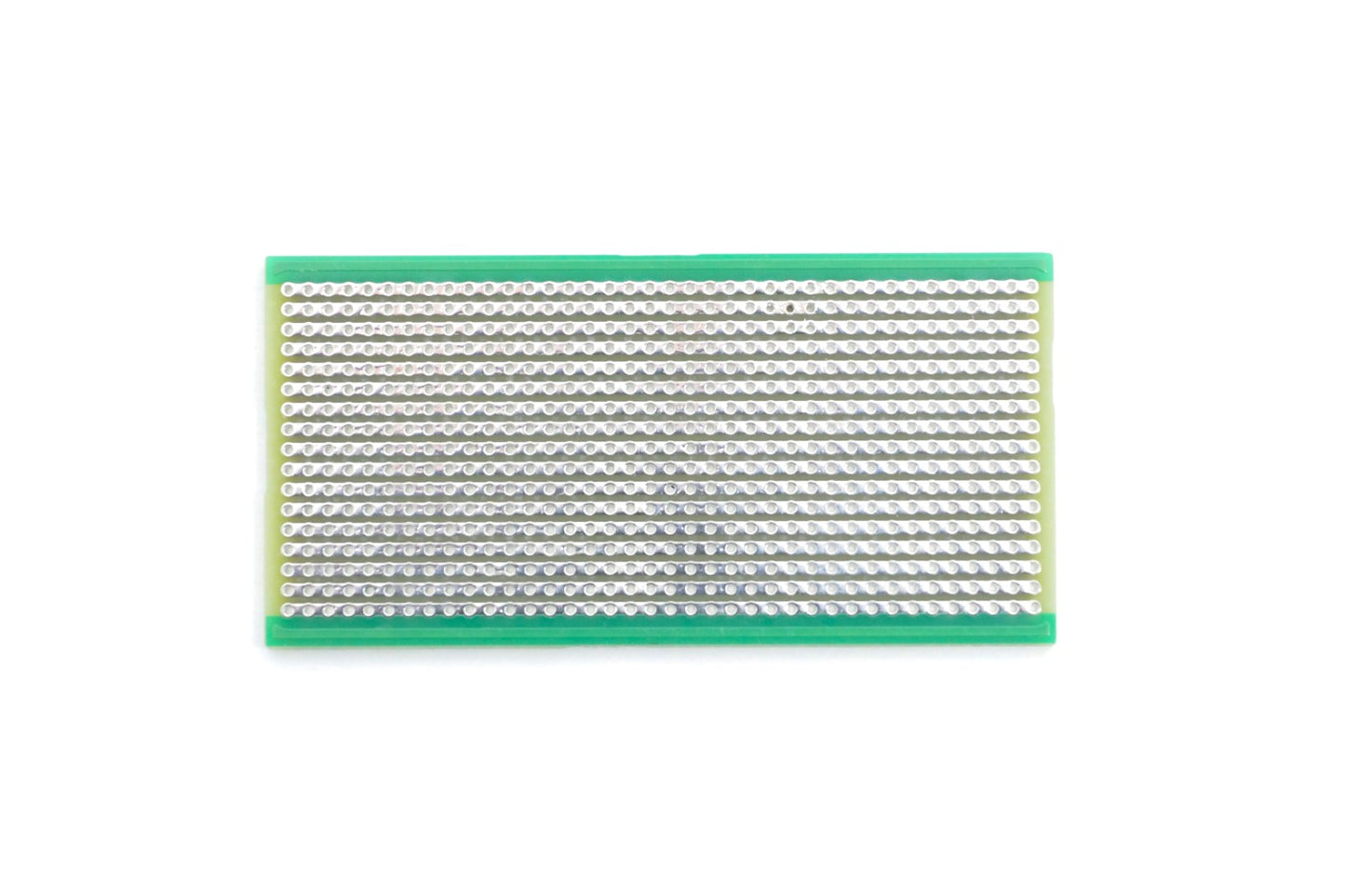

Tracks: Single-sided conductive pads
-

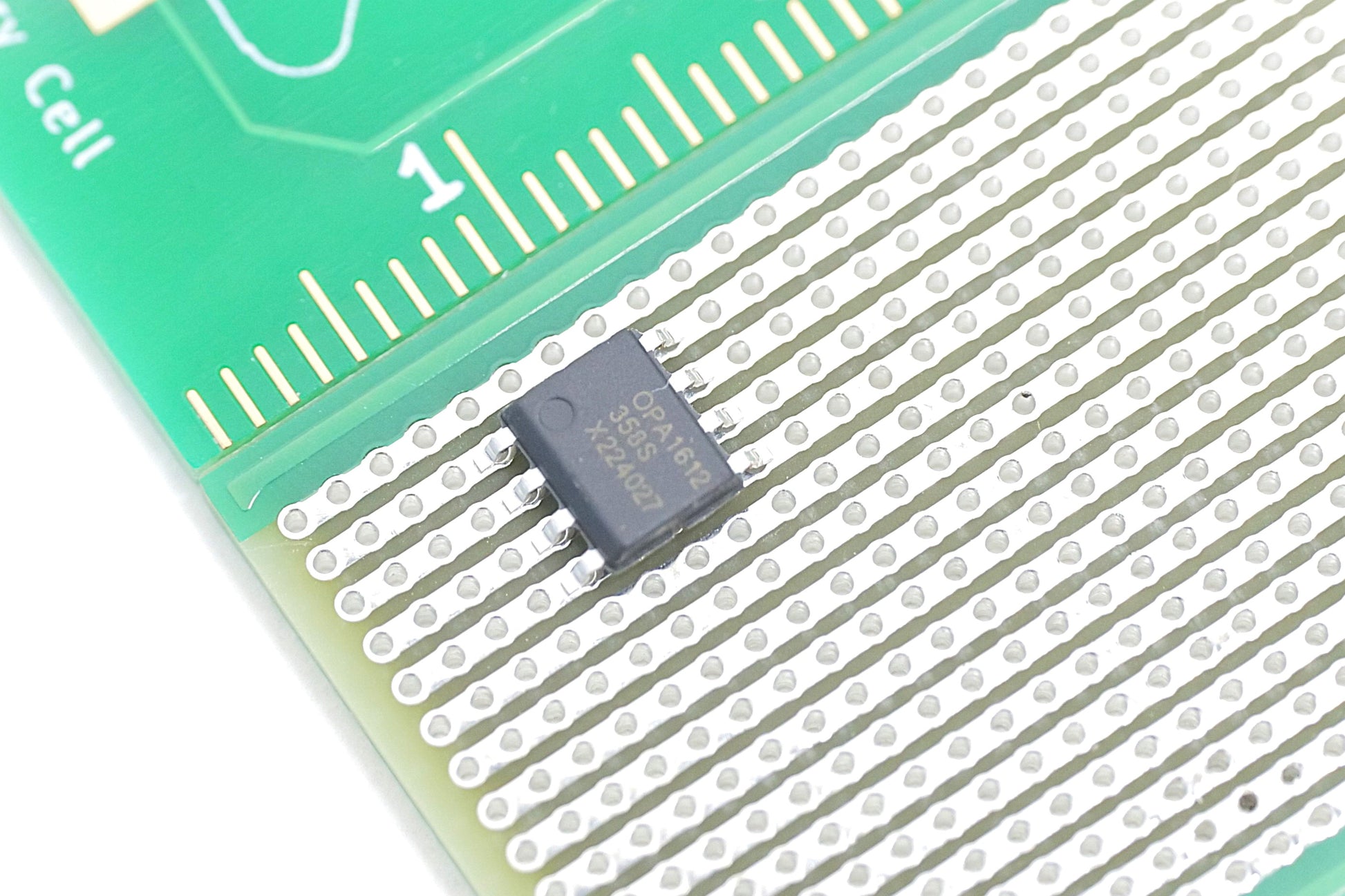

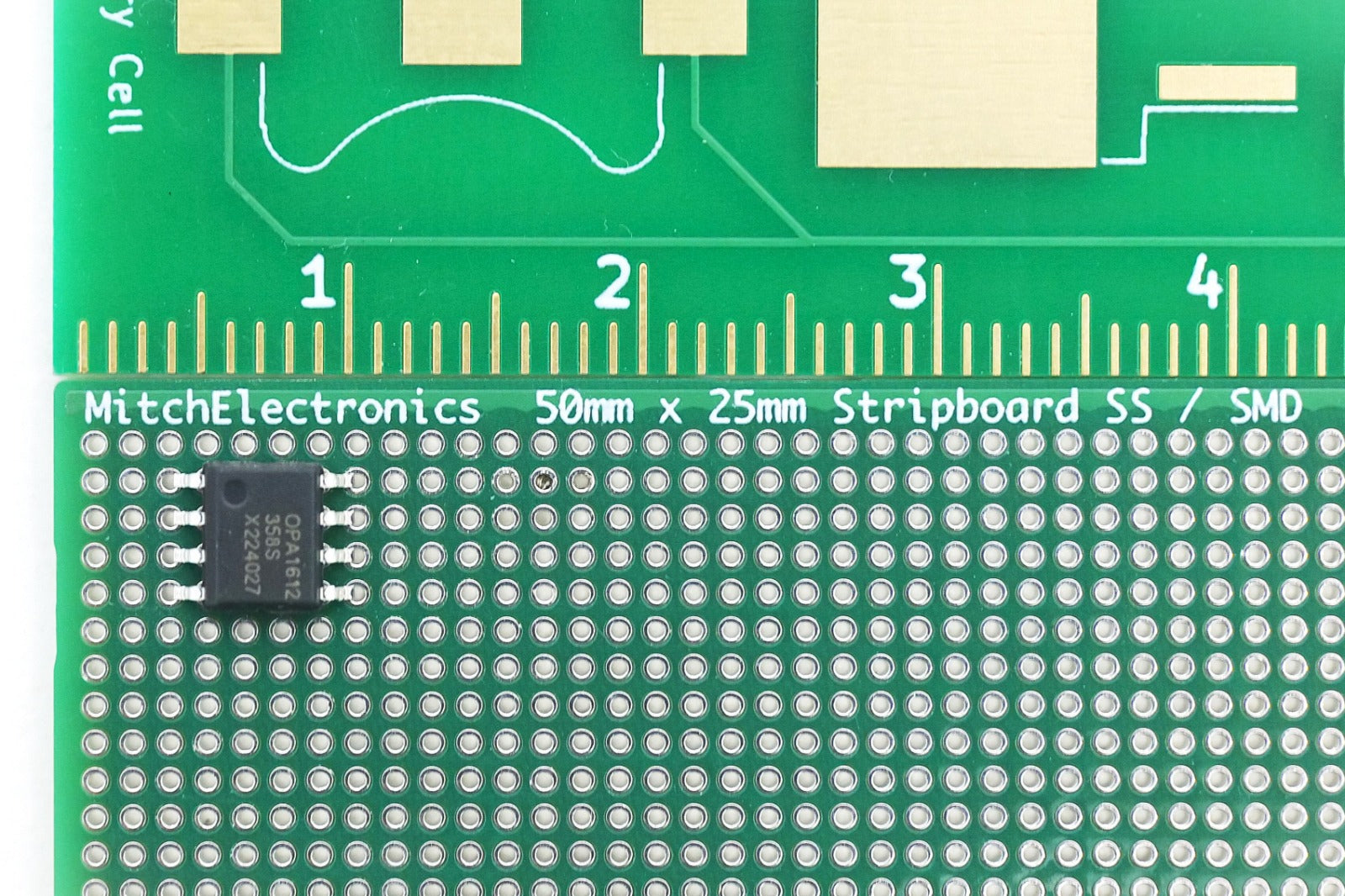

Compatibility: Designed for SMD components (SOIC, TSSOP, and similar)
-
Soldering Compatibility: Supports high-temperature soldering for lead-free applications
Included
- 3 x SMD 50mm x 25mm Stripboard
Applications
The SMD 50mm x 25mm Stripboard is ideal for:
-
Prototyping with small surface-mount components.
-
Miniature electronics projects with space constraints.
-
Educational settings teaching modern SMD assembly techniques.
-
Professional designs requiring precise layouts and compact circuits.
