Tactile Switch
Tactile Switch
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.89
Regular price
Sale price
£0.89
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-123

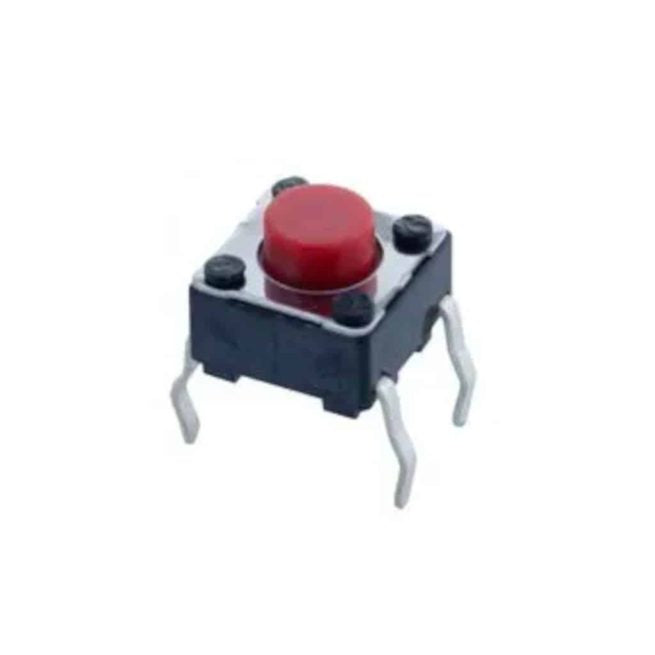

A TACT Switch 6 x 6mm square snap-in type. Tactile Switch features top push vertical operating direction. The part of the output terminal can also be applied as jumper leads and makes circuit design easier. Allows the switch to be mounted directly onto the PC board.
Specifications
| Type | Tactile |
| Action | Push To Make |
| illumination | None |
| Max Voltage & Current | 12VDC 50mA |
| Operating Force | 2.55N |
| Actuating Force | 260gf |
| Contact Resistance | 100mΩ Max. |
| Cycle Life | 200,000+ Cycles |
| Dimensions | Stem Height 5mm 6mm x 6mm (L x W) |
| Number of Terminals | 4 |
| Terminal Type | PC Board Spacing |
