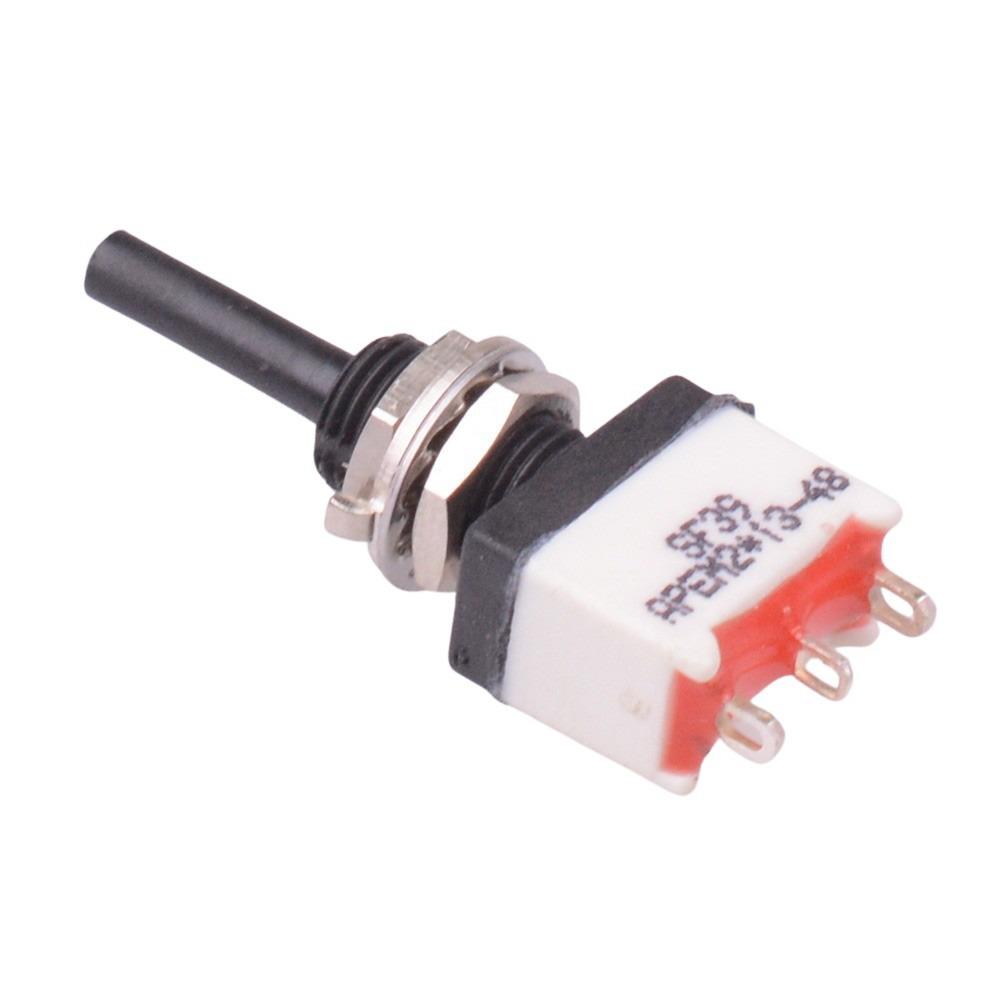

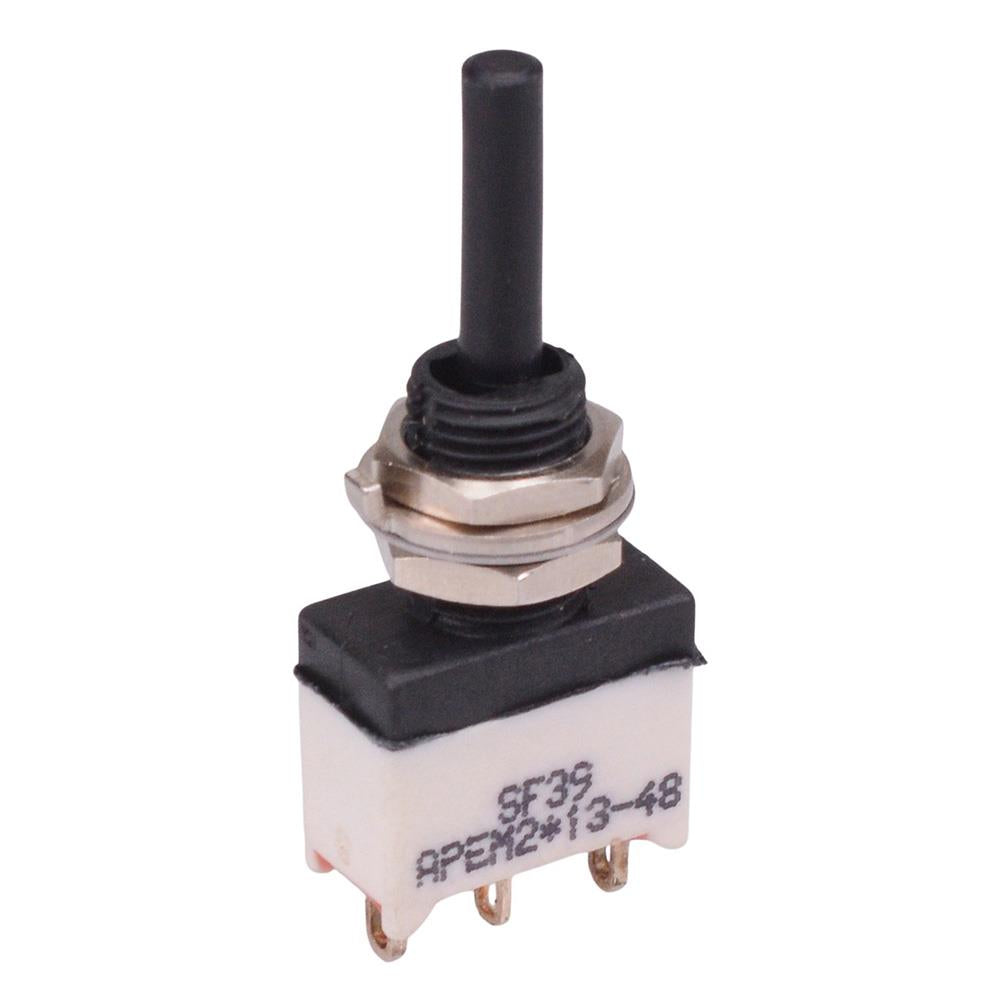

SF39S011100 APEM On-Off-On Washable Miniature Toggle Switch SPDT

The SF39S011100 is a washable miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM SF series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Long 11.5mm insulated lever

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

Solder contacts

Front and rear sealing

Maximum panel thickness: 2.5mm

Dimensions: 33.65 x 6.6 x 12.7mm (height x depth x length)

APEM SF series
