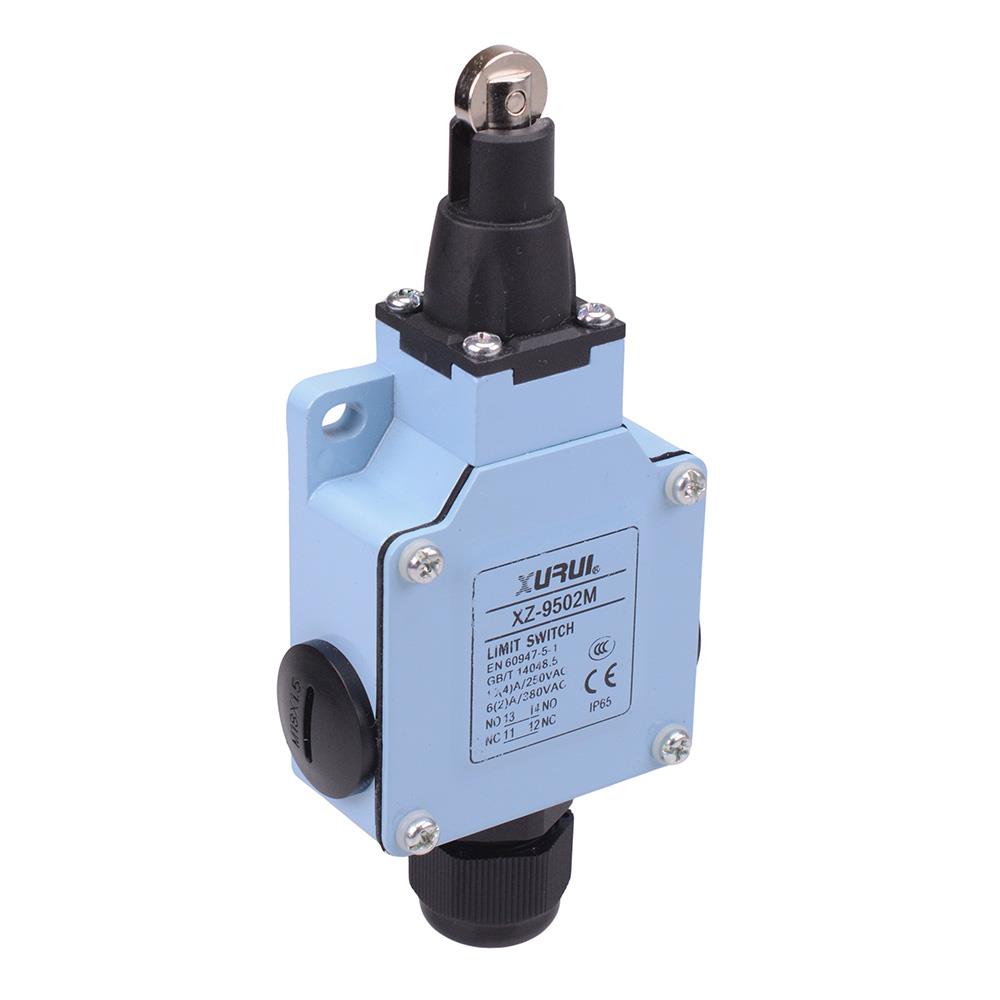

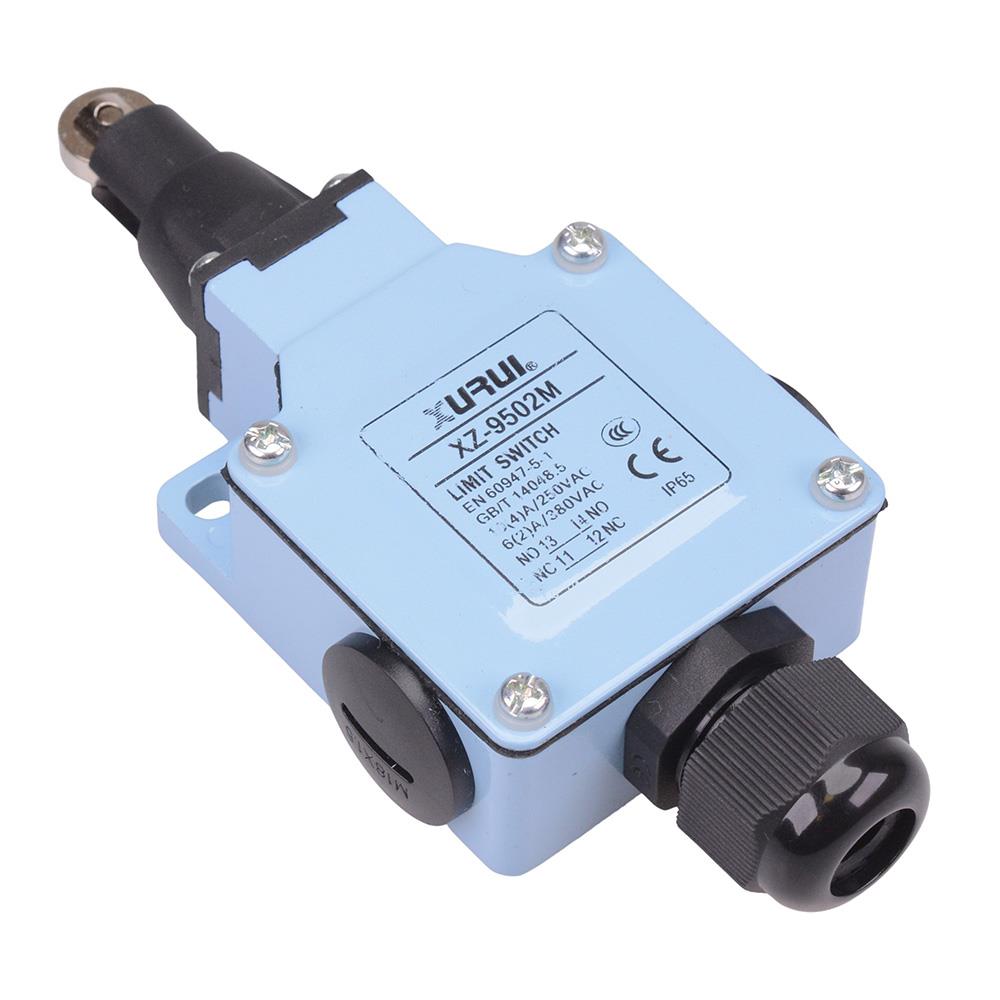

Roller Push Button Plunger Metal Limit Switch 10A IP65

Roller push button limit switch constructed from a hardwearing zinc cast outer shell, providing high mechanical strength and sealed to IP65. The limit switch features 1NO1NC contacts, commonly used in industrial applications including mechanical equipment, assembly lines, instruments and tools.

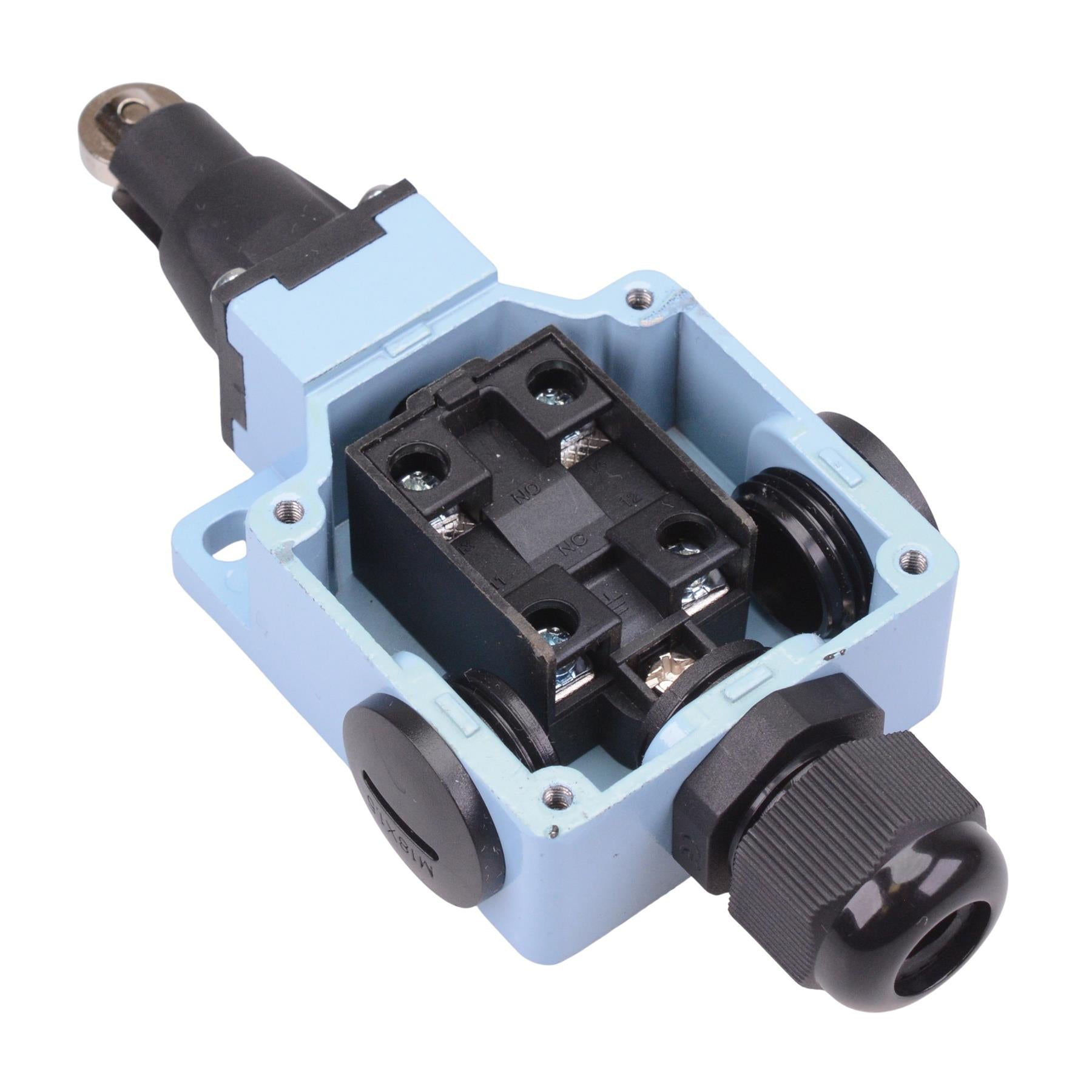

Contacts: 1NO1NC

Protection level: IP65

Rating: 10(4)A/250VAC, 6(2)A380VAC

Electrical life: 100,000+ cycles

Mechanical life: 1,000,000+ cycles

Operating force: 700g

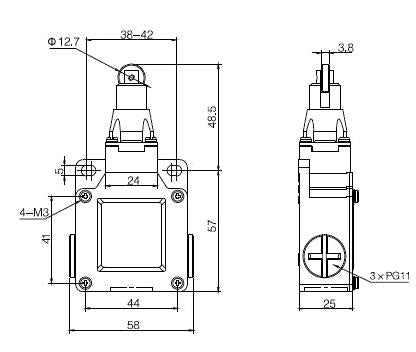

Dimensions: 105.5 x 58 x 25mm (length x width x height)
