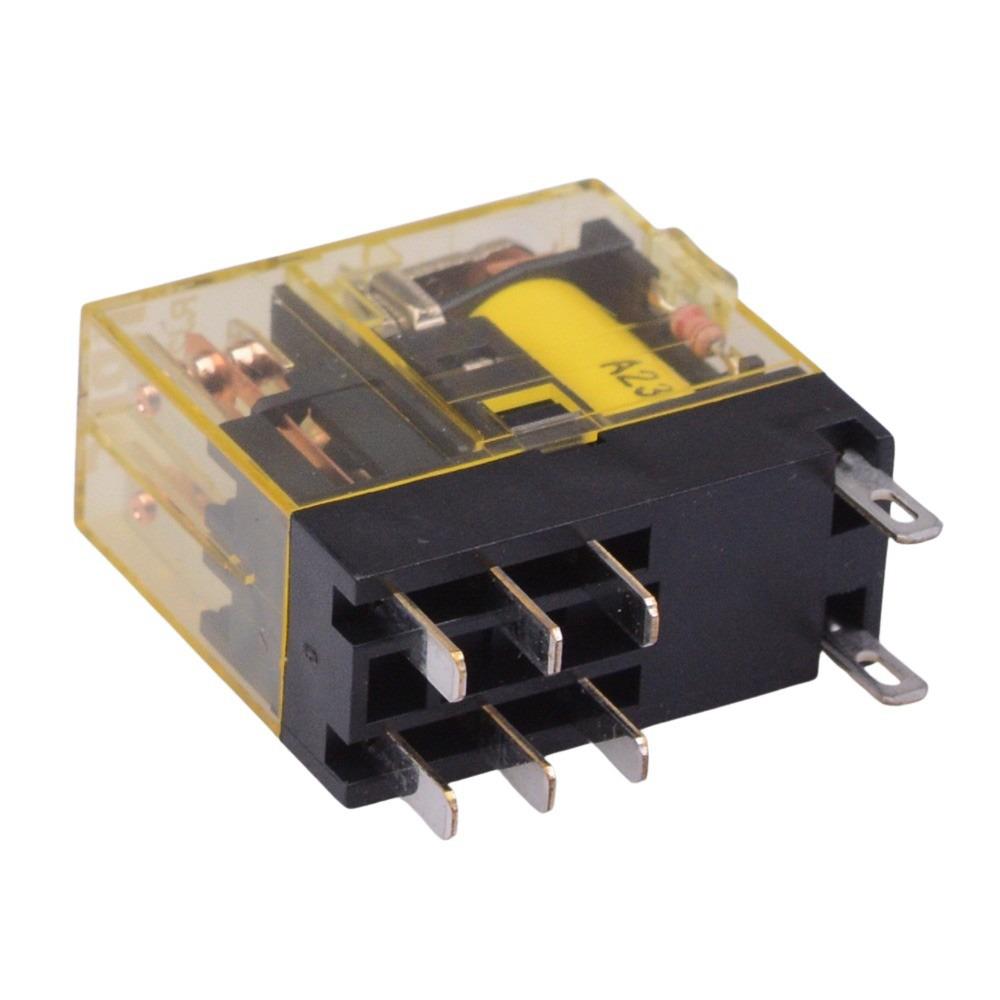

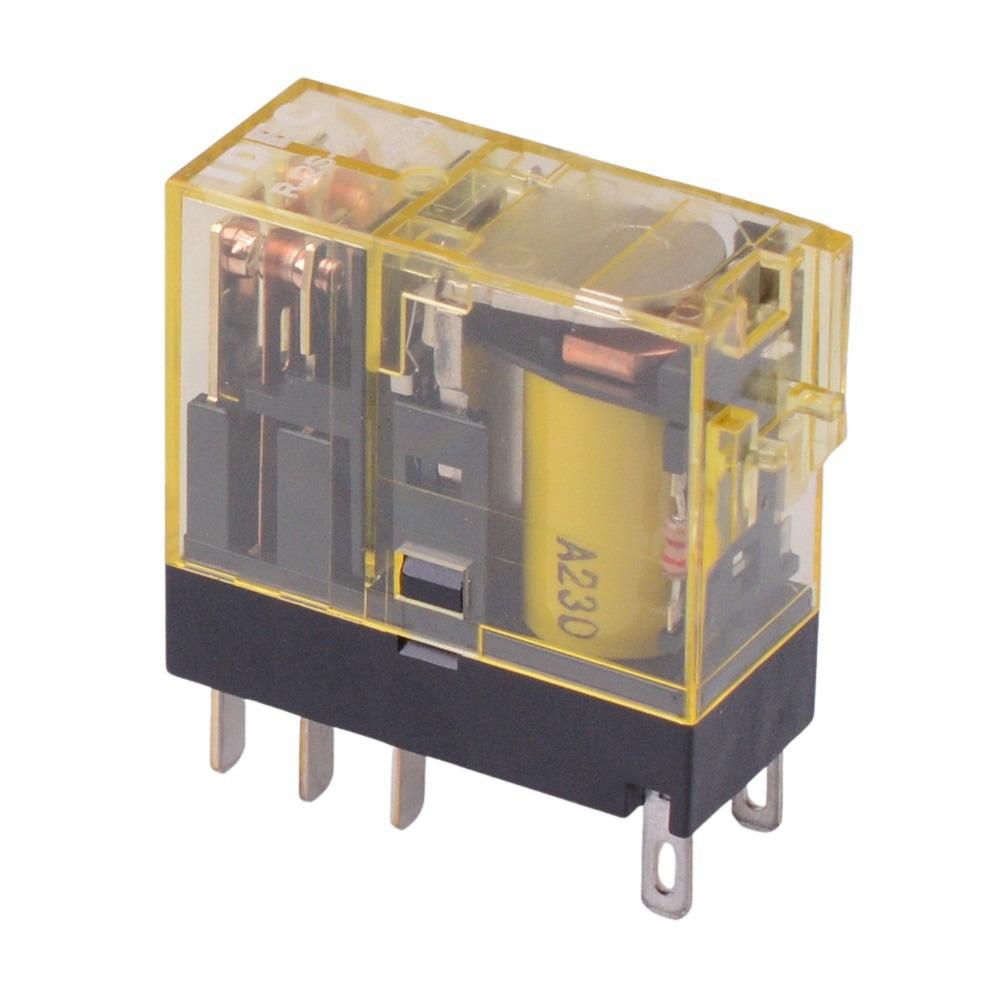

RJ2S-CL-A230 230VAC Plug In Slim Power Industrial Relay 8A DPDT IDEC

The RJS2-CL-A230 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.

Coil voltage: 230VAC

Switching current: 8A

With LED indicator

Long mechanical life

Contact rating: 8A 250VAC/DC

Contact configuration: DPDT

Plug-in terminals

Compatible socketa: SJ2S-05B, SJ2S-07L, SJ2S-21L

Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
