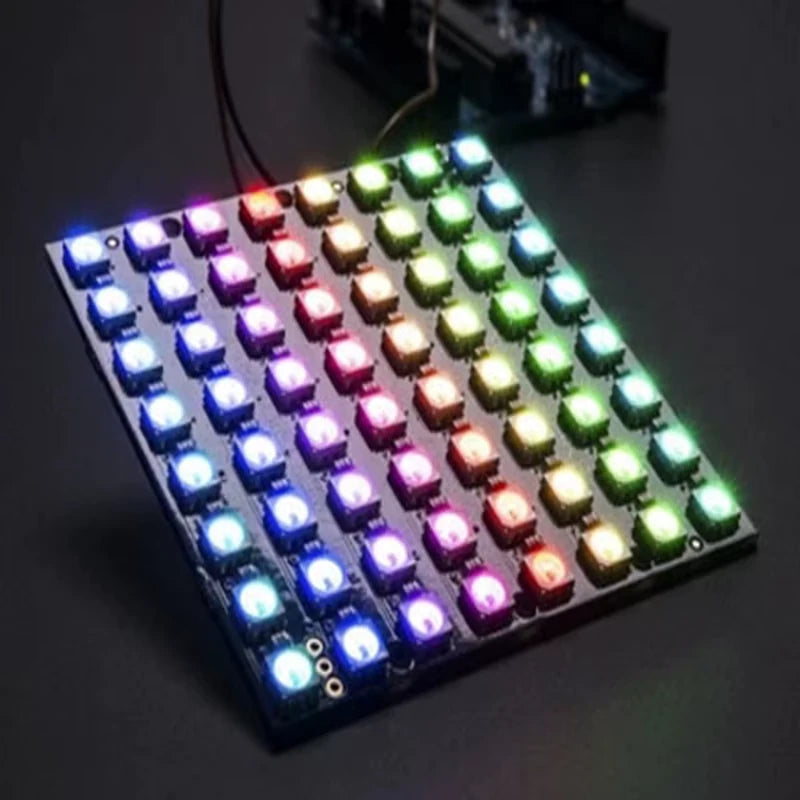

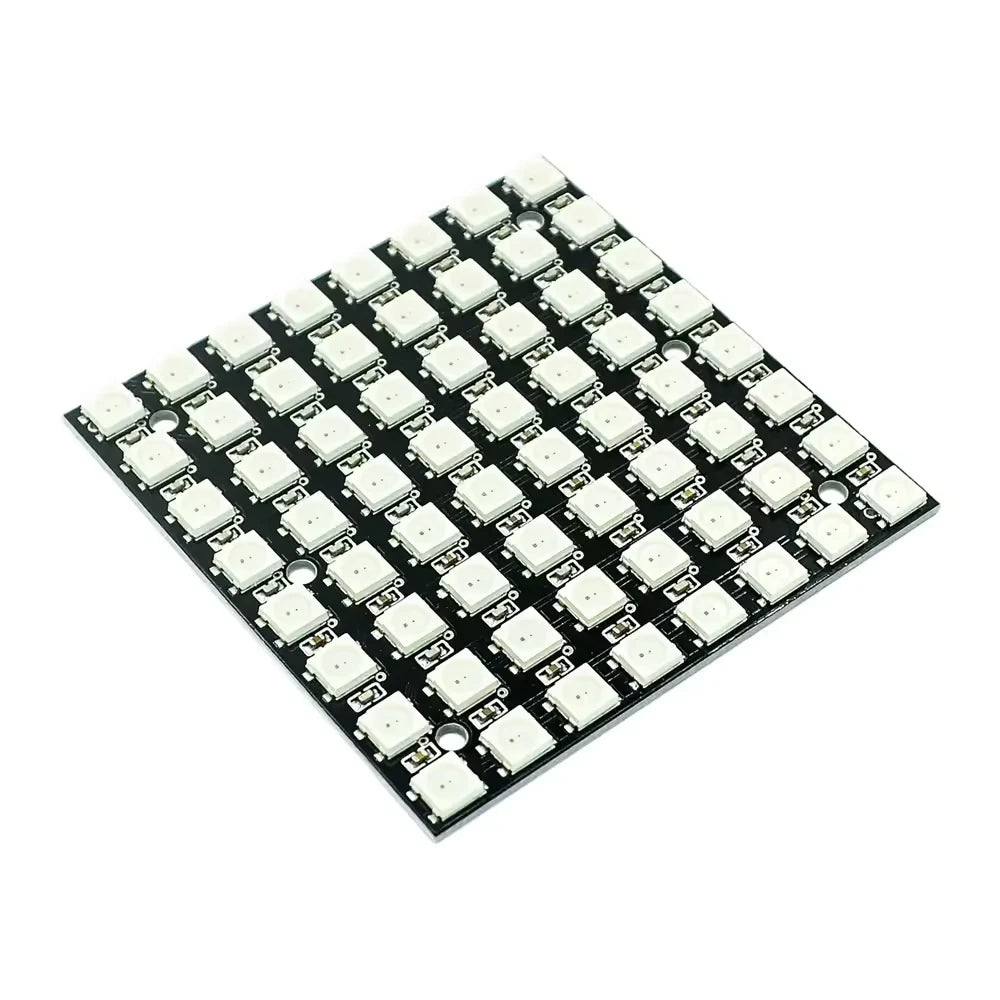

RGB LED Matrix Panel WS2812B 8×8 Addressable 64-Bit 5V

WS2812B 8×8 LED Matrix Digital Light Panel – Addressable RGB Display Module

The WS2812B 8×8 LED Matrix Panel is a fully addressable RGB digital light panel featuring 64 individually controllable LEDs. Each SMD 5050 RGB LED contains a built-in WS2811 IC for precise colour and brightness control, making it ideal for custom LED displays, interactive installations, and programmable lighting effects.

Key Features:

64 Individually Addressable LEDs – Full control over each pixel with built-in WS2811 driver IC for seamless programming.
16 Million Colour Combinations – 256 grayscale levels per color channel deliver smooth gradients, animations, and visual effects.
Arduino & Microcontroller Compatible – Works with Arduino, Raspberry Pi, ESP32, ESP8266, and other development boards for easy integration.

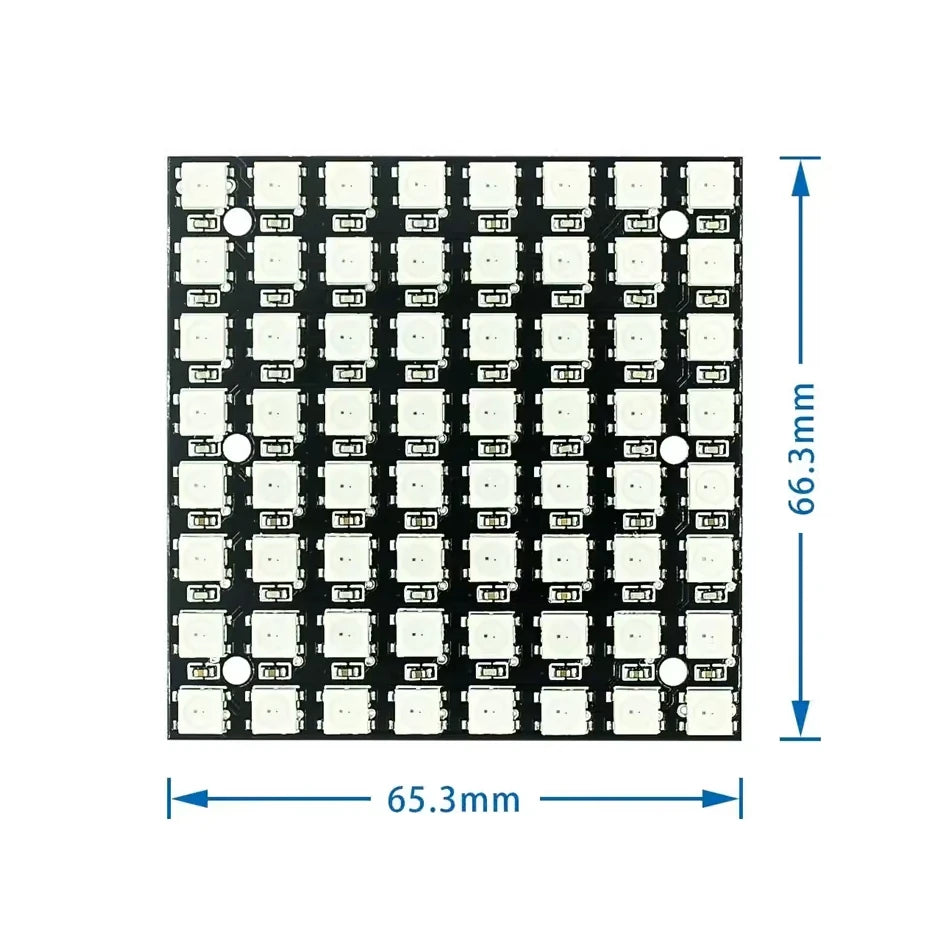

Compact 8x8cm Form Factor – Space-efficient design perfect for projects requiring dense LED arrays.
800Kbps Data Transmission – High-speed communication enables smooth animations and supports cascading multiple panels.
Single-Wire Control – Simplified wiring reduces complexity while maintaining precise control over all 64 pixels.

Technical Specifications:

LED Type: SMD 5050 RGB with built-in WS2812B IC
Pixel Count: 8×8 (64 LEDs)
Voltage: DC 5V
Beam Angle: 120°
Operating Temperature: -20°C to 40°C
Refresh Rate: ≥ 400Hz/s
Working Life: Over 50,000 hours
Non-Waterproof (IP20)

Applications:

LED Displays & Digital Signage – Build custom advertising panels, LED walls, and pixel art displays.
Ambient Lighting Projects – Create dynamic lighting for gaming setups, home décor, bars, and entertainment spaces.
Wearable Electronics – Design illuminated cosplay props, festival accessories, and wearable tech.
Arduino & Maker Projects – Integrate into robotics, smart home systems, IoT devices, and educational projects.

Package Includes:

1 x WS2812B 8×8 64-Bit RGB LED Matrix Panel
