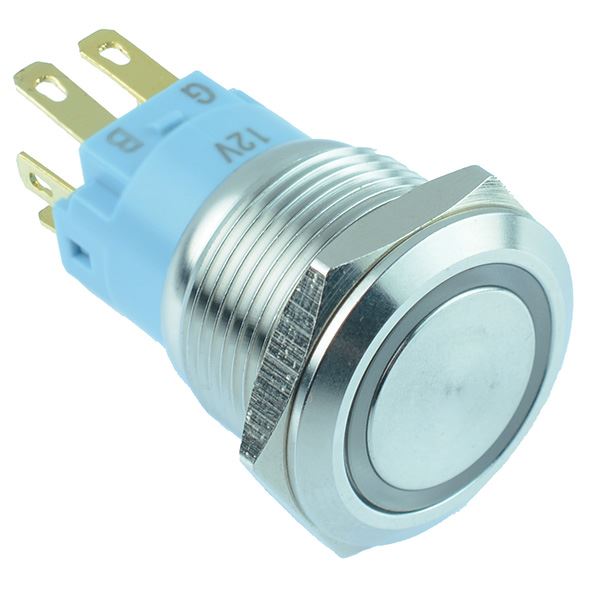

RGB LED 19mm Vandal Resistant Latching Push Button Switch 12V SPDT

Latching vandal resistant push button switch featuring a RGB 12V LED and stainless steel body. The switch features an attractive design which compliments quality panels and dashboards. With an IP67 protection rating, the switch is waterproof and suitable for a wide range of applications including automotive.

Common cathode

1NO 1NC contacts

Latching switch action

RGB LED

12V LED illumination

2.8mm terminals

19mm panel cut-out

Dimensions: 34.8 x 21.8mm (length x diameter)
