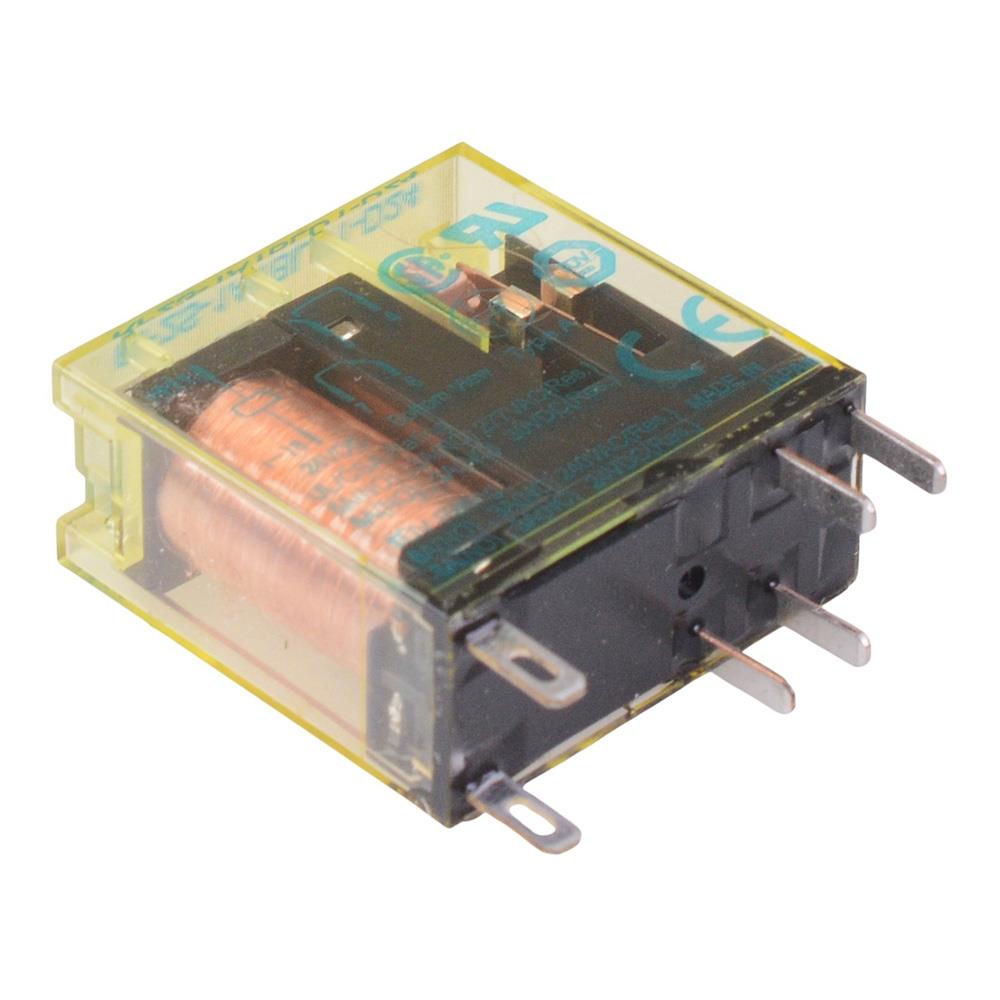

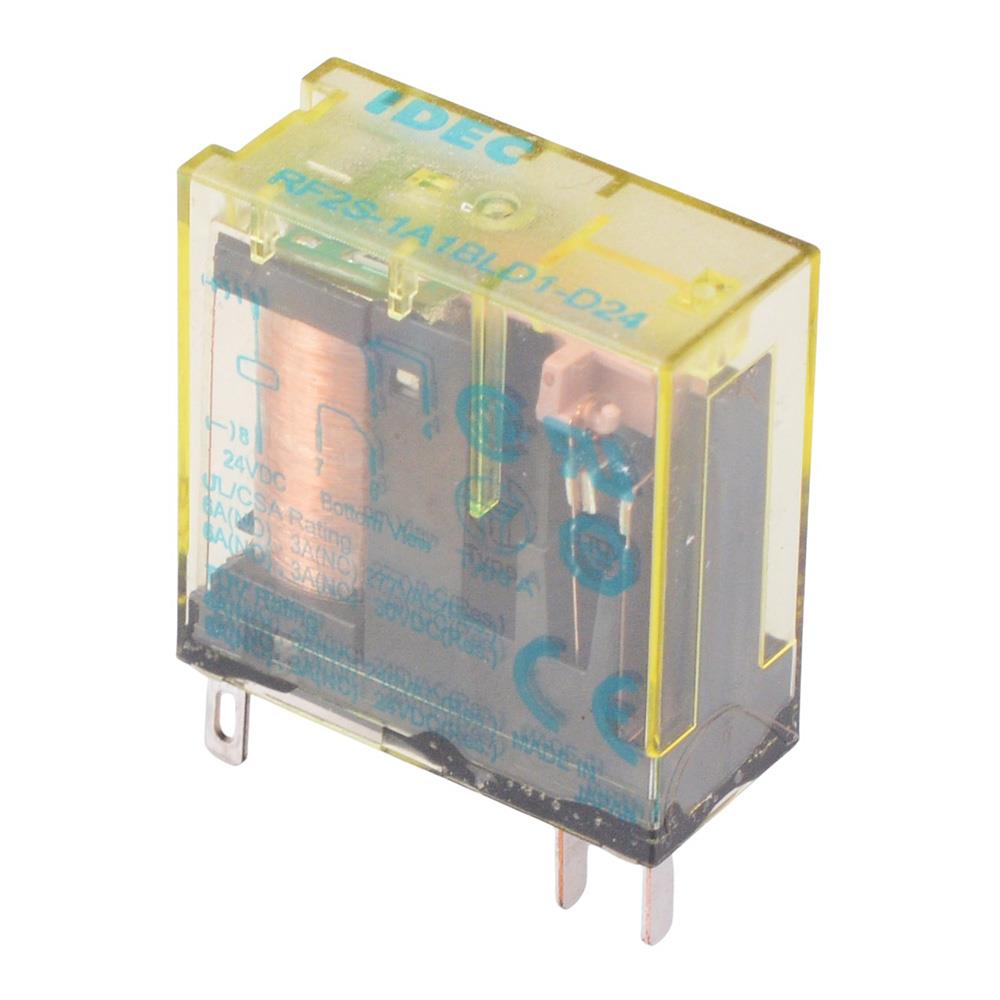

RF2S-1A1BLD1-D24 24VDC Plug-In 2-Pole Force Guided Relay LED Diode 1NO-1NC IDEC

The RF2S-1A1BLD1-D24 is a 2 pole force guided relay by IDEC, featuring a compact package and mechanical indicator. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay features plug-in terminals and its compatible with the finger-safe SJ series sockets.

Coil voltage: 24VDC

Allowable switching curent: 6A

With LED indicator

With diode

Contact configuration: 2-pole 1NO-1NC

Plug-in terminals

Compatible socket: SJ2S-05BW, SJ2S-07LW, SJ2S-61

Dimensions: 28 x 12.7 x 25.4mm (length x width x height)

Force guided contact mechanism (EN50205 Type A TUV approved)
