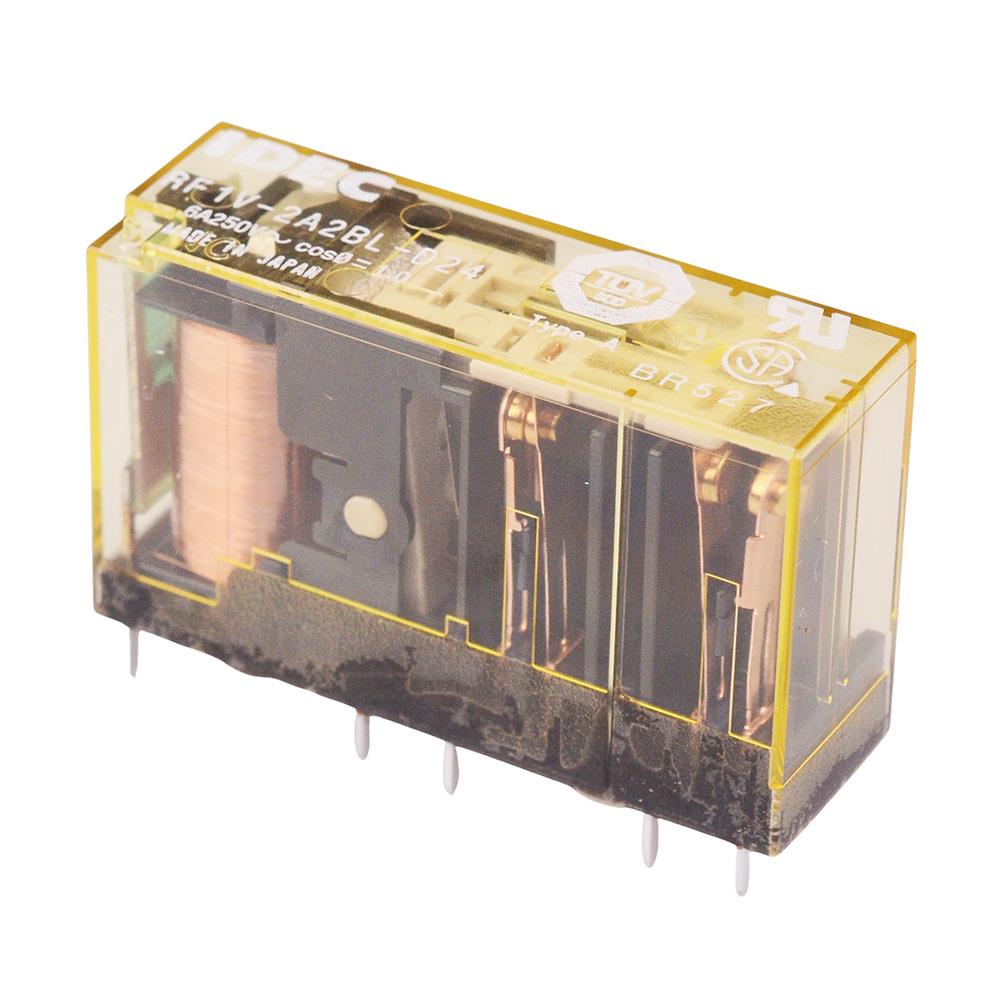

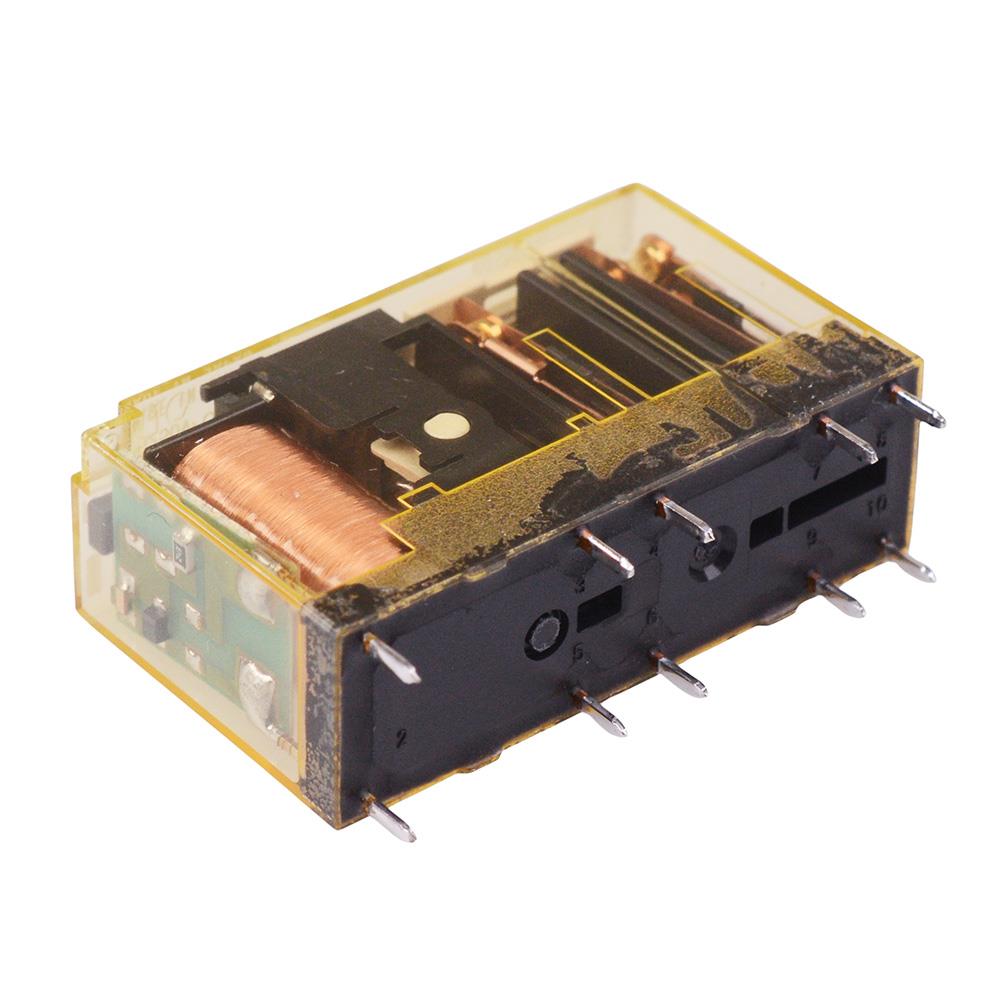

RF1V-2A2BL-D24 24VDC 4-Pole Force Guided Relay 2NO-2NC IDEC

The RF1V-2A2BL-D24 is a force guided relay by IDEC, featuring a compact and slim package with a built-in LED indicator. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay is suitable for socket and PCB mounting, it is also compatible with the finger-safe SJ series sockets.

Coil voltage: 24VDC

Allowable switching curent: 6A

With LED indicator

Contact configuration: 4-pole 2NO-2NC

PCB terminals

Compatible socket: SF1V-4-07L, SF1V-4-61

Dimensions: 40 x 13 x 24mm (length x width x height)

Force guided contact mechanism (EN50205 Type A TUV approved)
