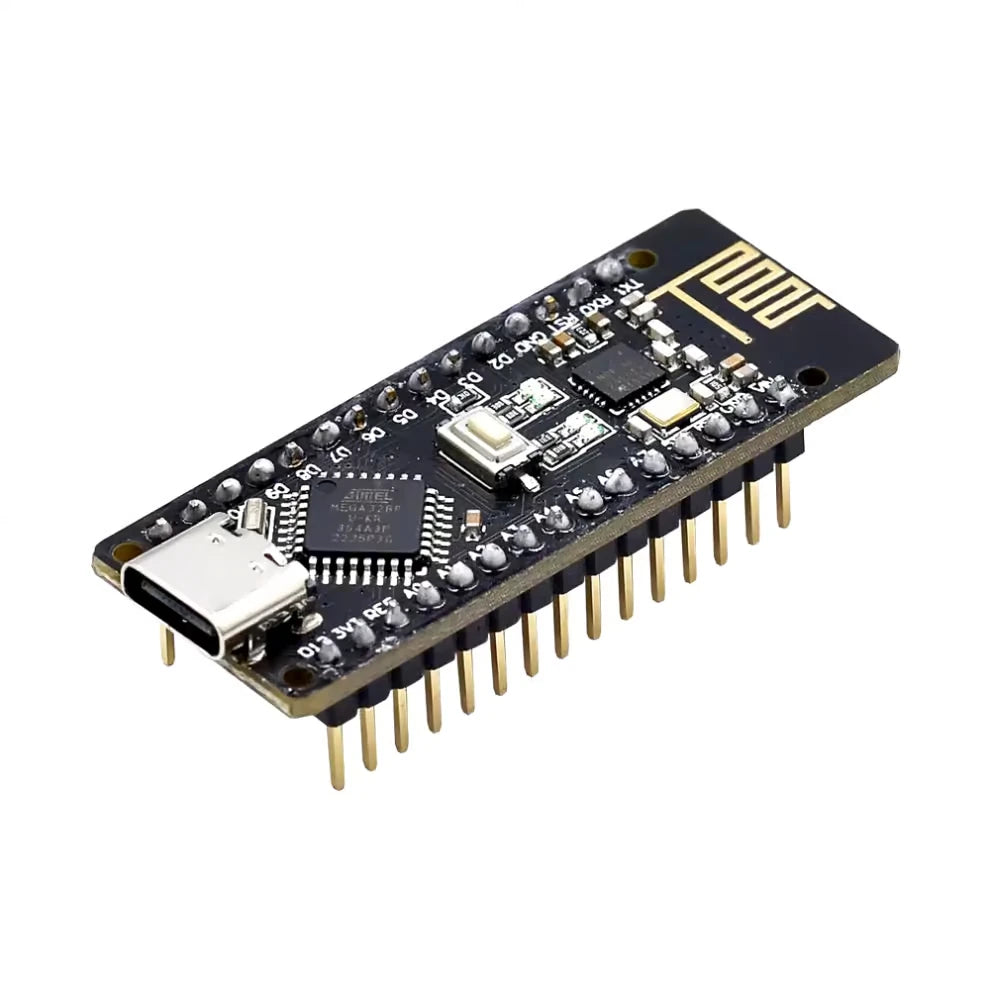

RF Nano V3.0 Arduino Compatible Board with NRF24L01+ Wireless Module

RF Nano V3.0 – Compact Wireless Development Board

The RF Nano V3.0 is a powerful, ultra-compact development board that combines wireless connectivity and microcontroller performance in a single, easy-to-use platform. Built around the ATmega328P-MU QFN32 chip, it is fully compatible with the classic Arduino Nano V3.0, making it an excellent choice for IoT projects, remote control systems, and wireless sensor networks.

Key Features:

Seamless Communication:

• Hardware UART TTL (5V) serial communication via CH340 & FTDI FT232RL.
• Supports SoftwareSerial, I2C (Wire library), and SPI for versatile peripheral connectivity.

Built-in 2.4G Wireless Module:

• NRF24L01+ module integrated for wireless communication up to 50m range.
• Ideal for remote controls, sensor networks, and IoT applications.

Smart Bluetooth Integration:

• TI CC2540 chip enables BLE communication with AT command configuration.
• Supports USB virtual serial port and hardware serial port communication.

High-Quality Build & Compact Design:

• Premium PCB with Immersion Gold technology for durability.
• Ultra-compact (48x19mm) and lightweight (9g) for space-constrained projects.
• Micro-USB interface for easy programming and power management.

Easy setup with CH340 driver and selectable Nano (ATmega328P) processor. Includes detailed datasheets, schematics, and driver downloads. Arduino IDE

Compatibility & Technical Support: Works with Arduino IDE 1.8.6 or newer (supports Windows, Mac, and Linux).

Technical Specifications:

• Microcontroller: ATmega328P-MU QFN32
• Operating Voltage: 5V (USB), Vin: 6-12V
• Clock Speed: 16MHz
• Memory: 32KB flash (2KB bootloader), 2KB SRAM, 1KB EEPROM
• I/O Pins: 12 digital (6 PWM), 8 analog (40mA per pin)
• Wireless: Integrated NRF24L01+ (2.4G band)
• BLE: TI CC2540 (AT command configuration)
• Interfaces: Micro-USB, virtual & hardware serial ports
• Dimensions: 48x19x12mm

Note: Please use Arduino IDE 1.8.6 or higher version, First, install the CH340 driver, then follow this selection path in IDE: Tools – Board “Nano” Processor “ATmega328P”, otherwise you’ll find that you can’t burn any program.
