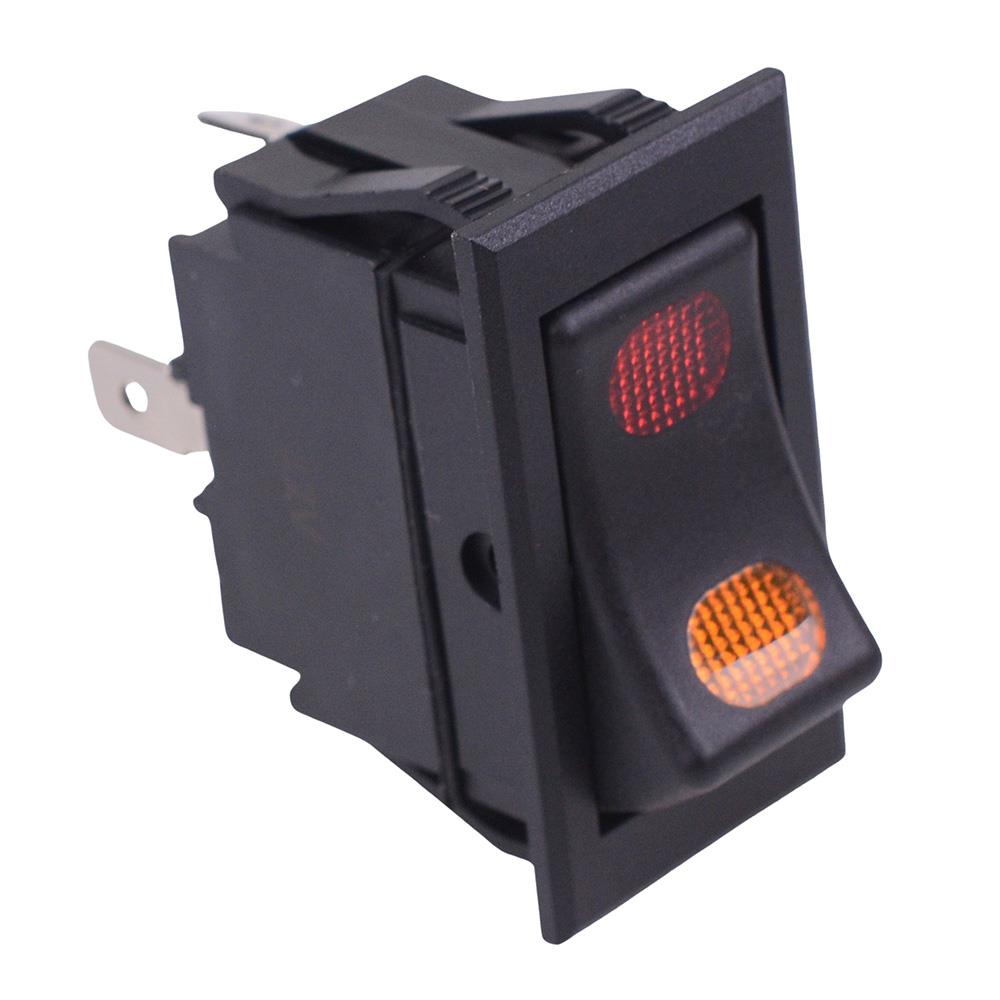

Red / Yellow 12V LED Rectangle Rocker Switch SPST 20A R13-220BC-01

R13-220 rectangle rocker switch featuring red / yellow 12V illumination and SPDT contacts. The switch requires a 37.3 x 21.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 20A and is suitable for a wide range of DC automotive applications.

Function: On-On

Contacts: SPDT

Red / Yellow 12V neon illumination

Panel cut-out: 37.3 x 21.2mm

Panel thickness: 0.75-3mm

Rating: 20A 12VDC, 10A 24VDC

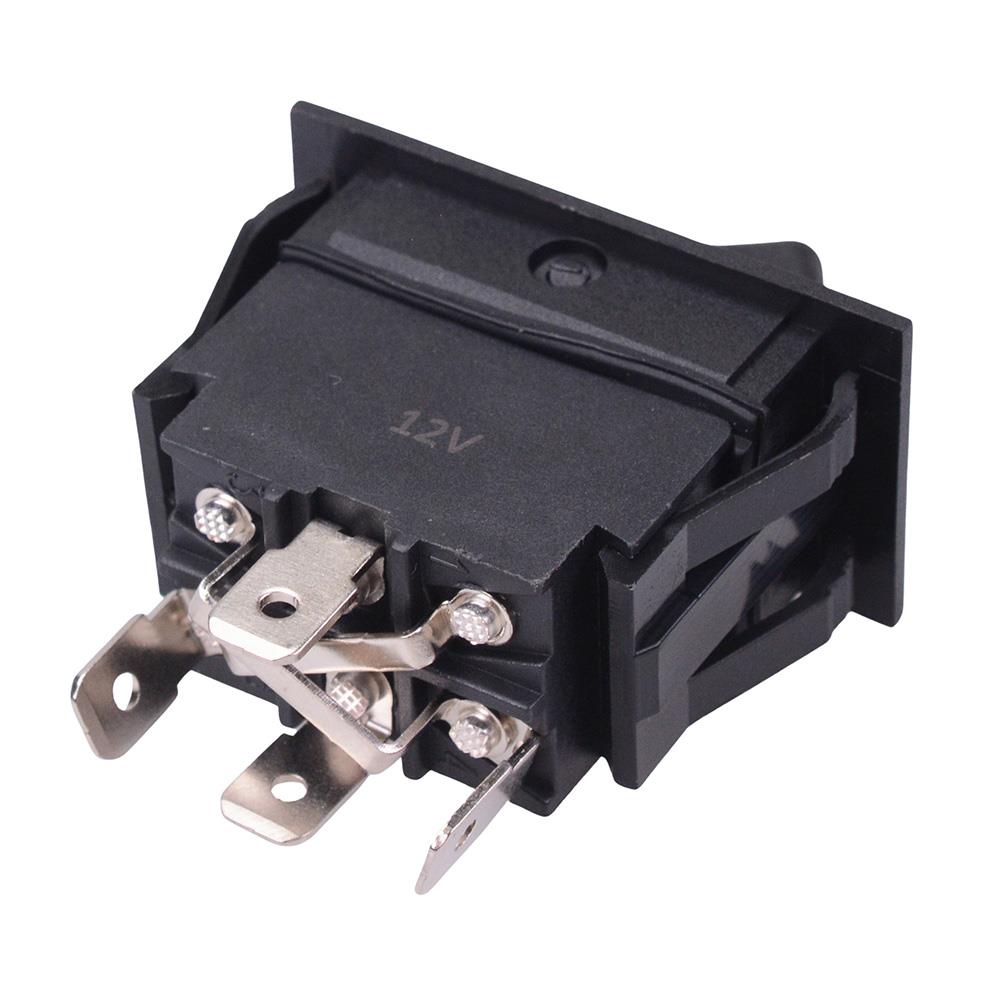

6.3mm quick connect terminals

Dimensions: 44.0 x 24.5 x 48.5mm (length x width x height)
