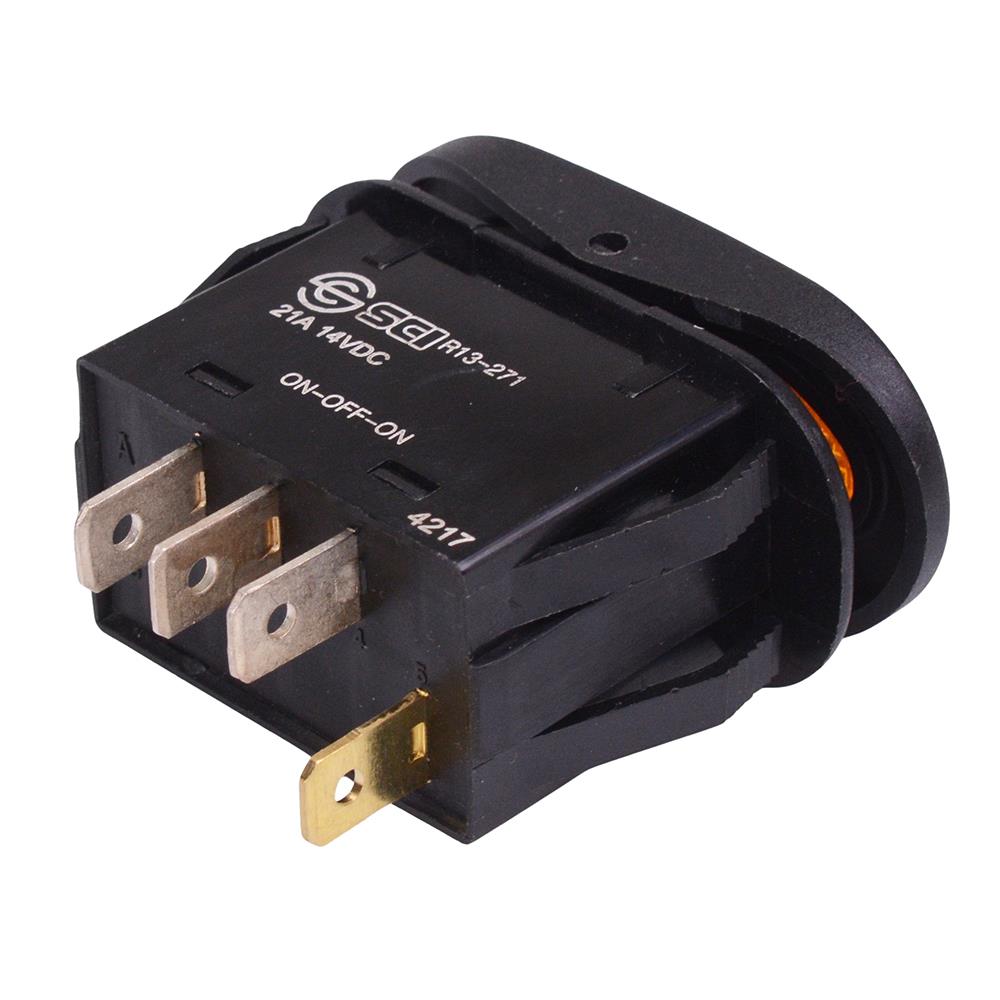

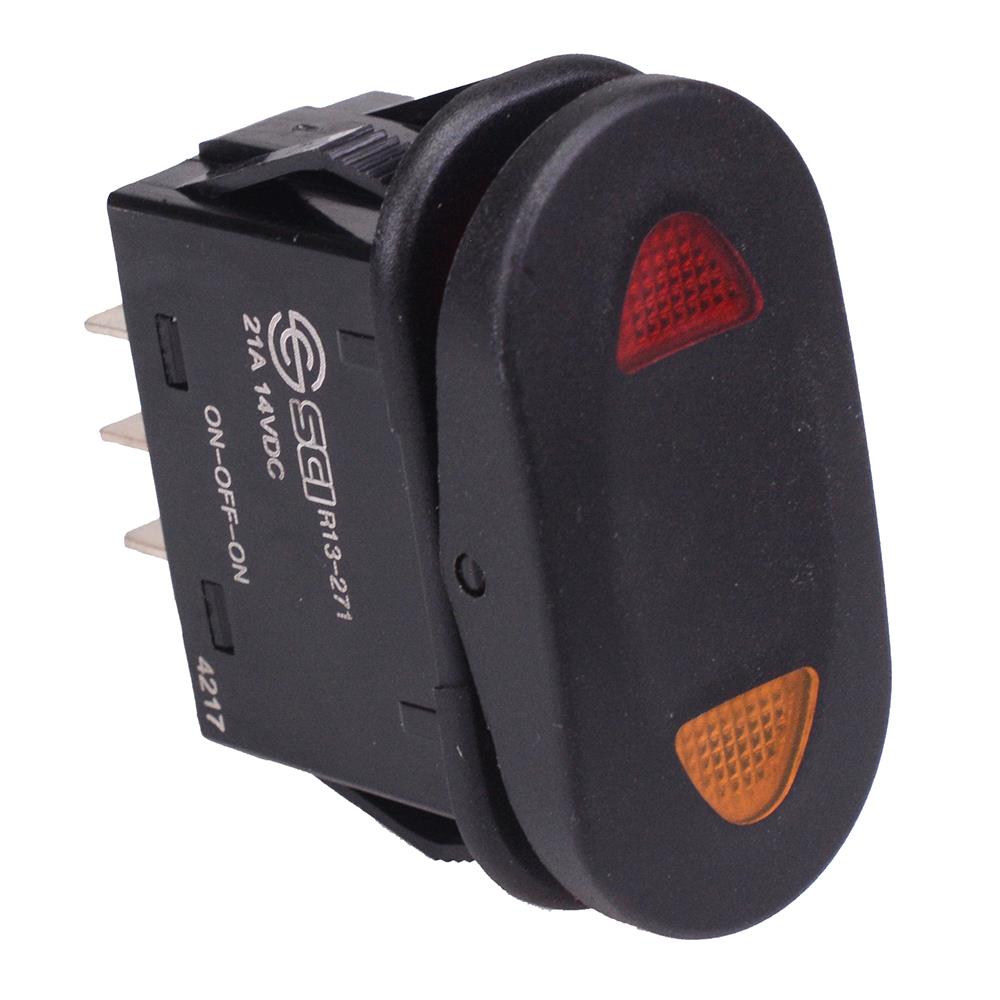

Red / Yellow 12V LED On-Off-On Rectangle Rocker Switch SPDT 21A R13-271D3-01

R13-271D3-01 rectangle rocker switch featuring red / yellow 12V illumination and SPDT contacts. The switch requires a 36.6 x 21.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 21A and is suitable for a wide range of DC automotive applications.

Function: On-Off-On

Contacts: SPDT

Red / Yellow 12V LED illumination

Panel cut-out: 36.6 x 21.2mm

Panel thickness: 0.75-3mm

Rating: 21A 14VDC

6.3mm quick connect terminals

Dimensions: 47.7 x 24 x 46.1mm (length x width x height)
