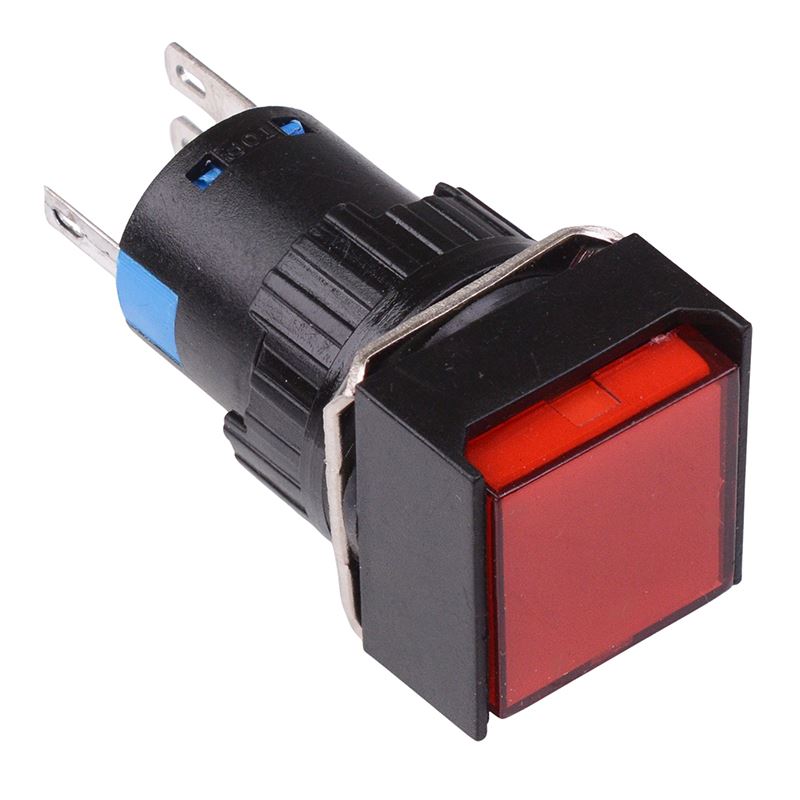

Red Square Latching 16mm Push Button Switch NO/NC 230V

Red latching push button switch featuring a square illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, domestic, appliances etc.

Red 230V illumination

NO/NC contacts

Solder terminals

Maximum voltage: 250VAC/DC

Maximum current: 5A

Panel cut-out: 16mm

Protection level: IP65

Button size: 15.4 x 15.4mm

Dimensions: 40.5 x 18 x 18mm
