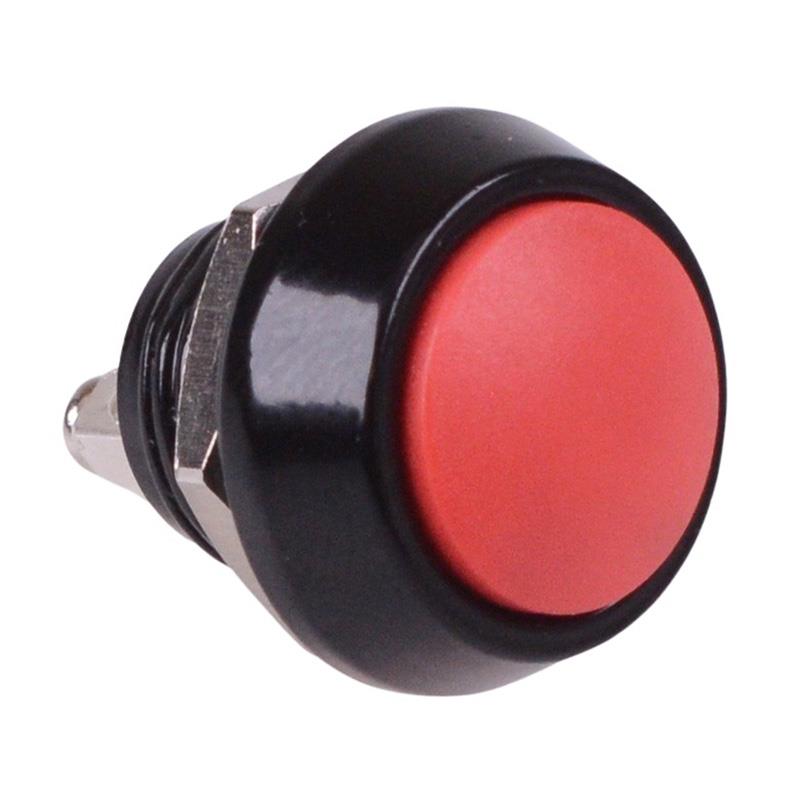

Red Round Off-(On) Momentary 12mm Metal Push Button Switch Screw IP65 SPST

Red momentary push button switch featuring a round actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

SPST-NO contacts

IP65 protection rating

Screw terminals

Panel cut-out: 12mm

Panel thickness: 5mm max

Rating: 3A 250V

Dimensions: 19.5 x 17.5mm (height x diameter)
