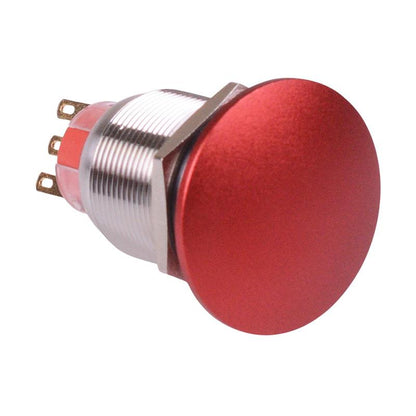

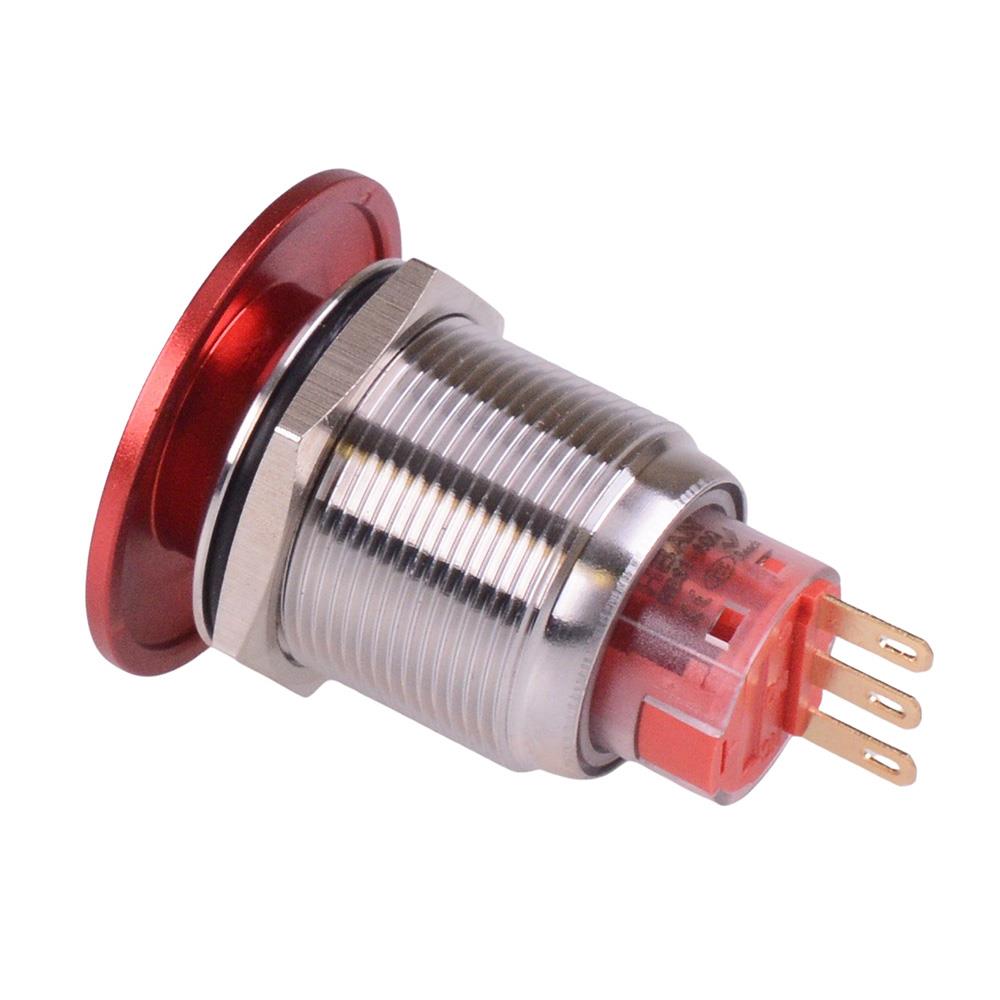

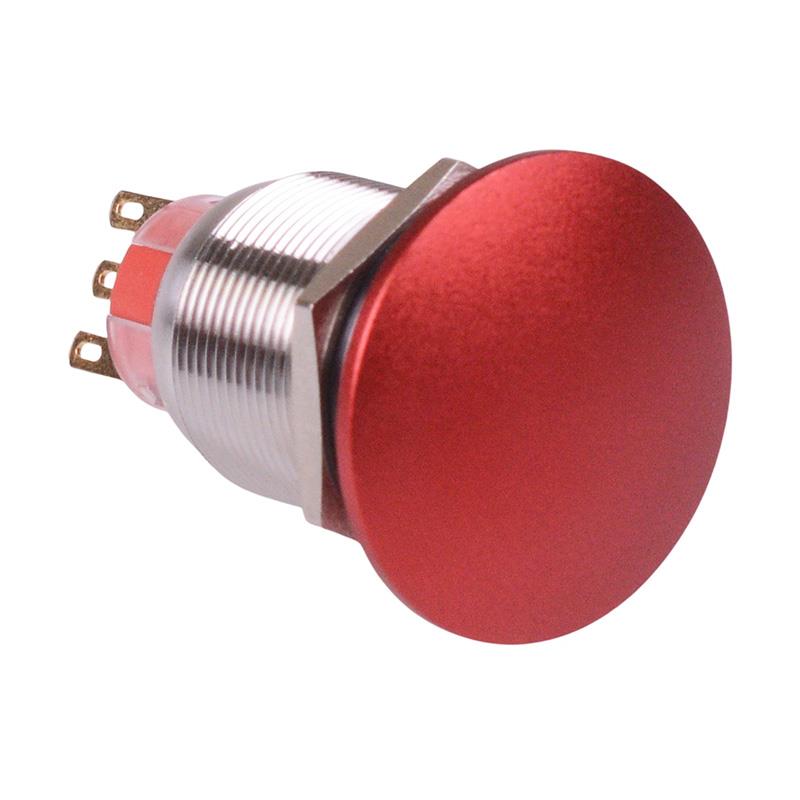

Red Mushroom Momentary 22mm Push Button Switch Stainless Steel IP67 NO/NC

Red 22mm momentary vandal resistant push button switch featuring normally open SPST contacts. The switch features a red mushroom button and is constructed from a stainless steel housing. The switch features an IP67 protection rating and is suitable for a wide range of applications including security, control panels, industrial, automotive etc.

Off-(On) operation

SPST-NO contacts

Red mushroom button

Panel cut-out: 22mm

Panel thickness: 16mm max

2.8x0.5mm quick connect / solder terminals

Rating: 5A 250V

Protection rating: IP67

Head diameter: 31.8mm

Dimensions: 48.3 x 31.8mm (height x diameter)
