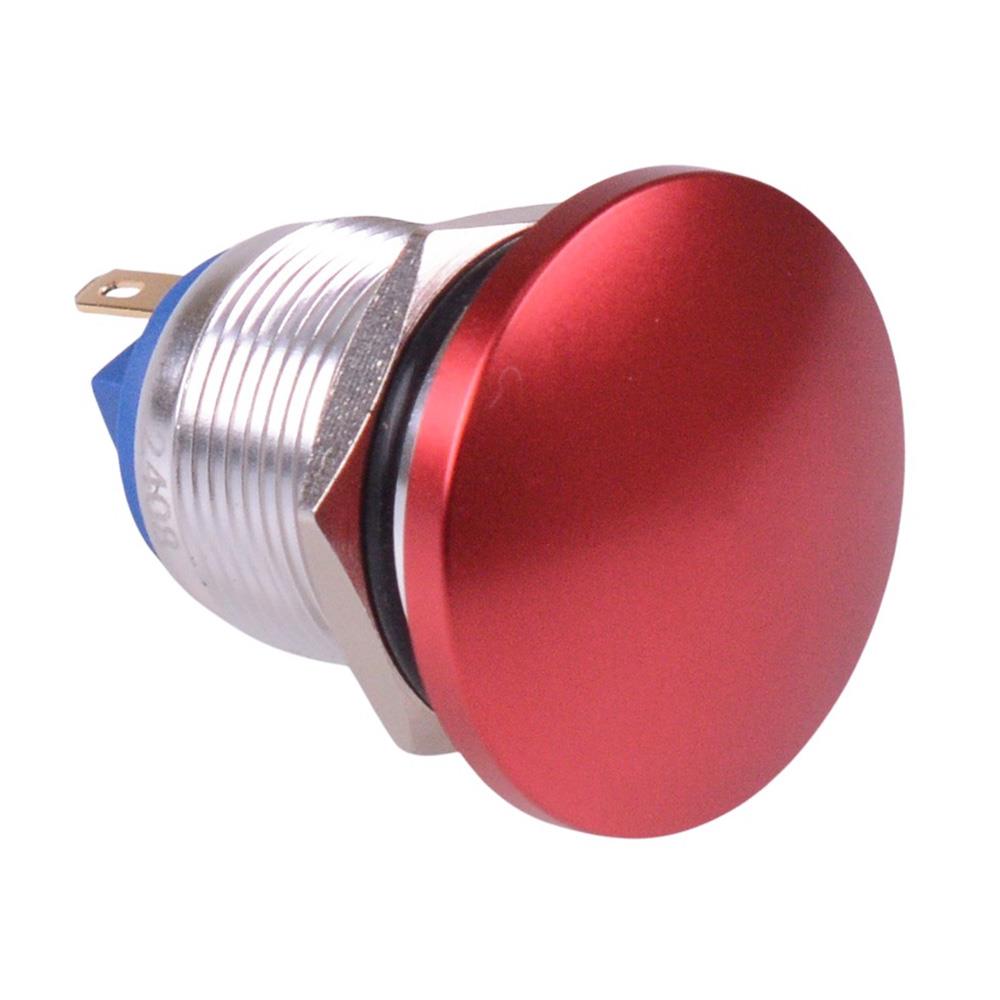

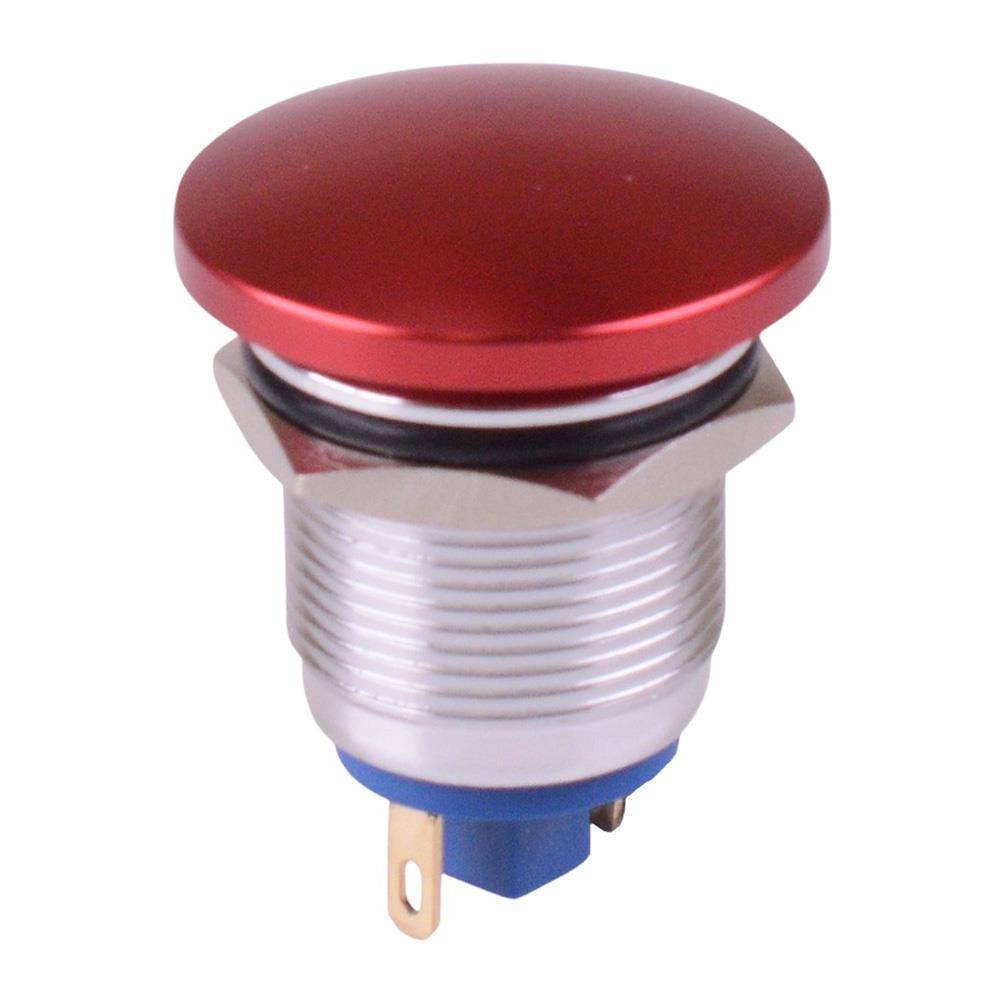

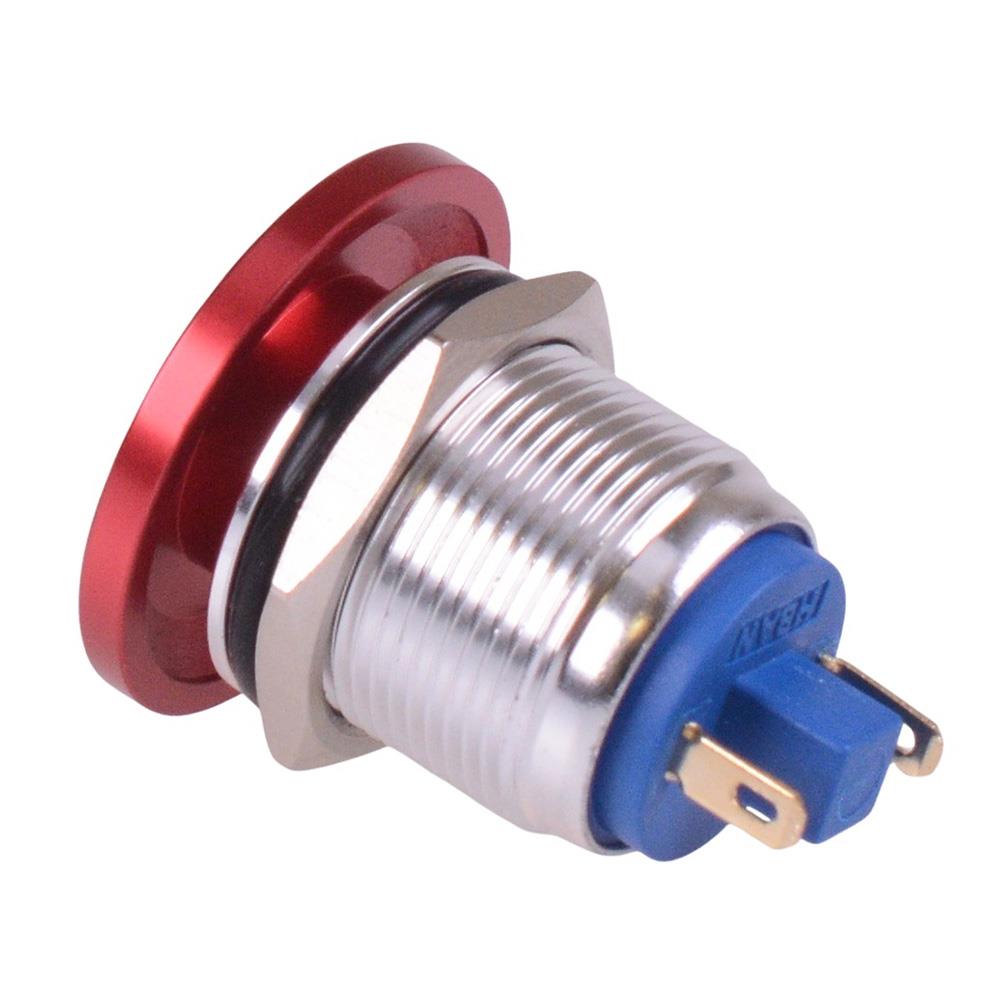

Red Mushroom Momentary 19mm Metal Push Button Switch IP65 NO

Red 19mm momentary vandal resistant push button switch featuring normally open SPST contacts. The switch features a red mushroom button and is constructed from an aluminium alloy. The switch features an IP65 protection rating and is suitable for a wide range of applications including security, control panels, industrial, automotive etc.

Off-(On) operation

SPST-NO contacts

Red mushroom button

Panel cut-out: 19mm

Panel thickness: 9mm max

2.8x0.5mm quick connect / solder terminals

Rating: 5A 250V

Protection rating: IP65

Head diameter: 27.7mm

Dimensions: 35.7 x 27.7mm (height x diameter)
