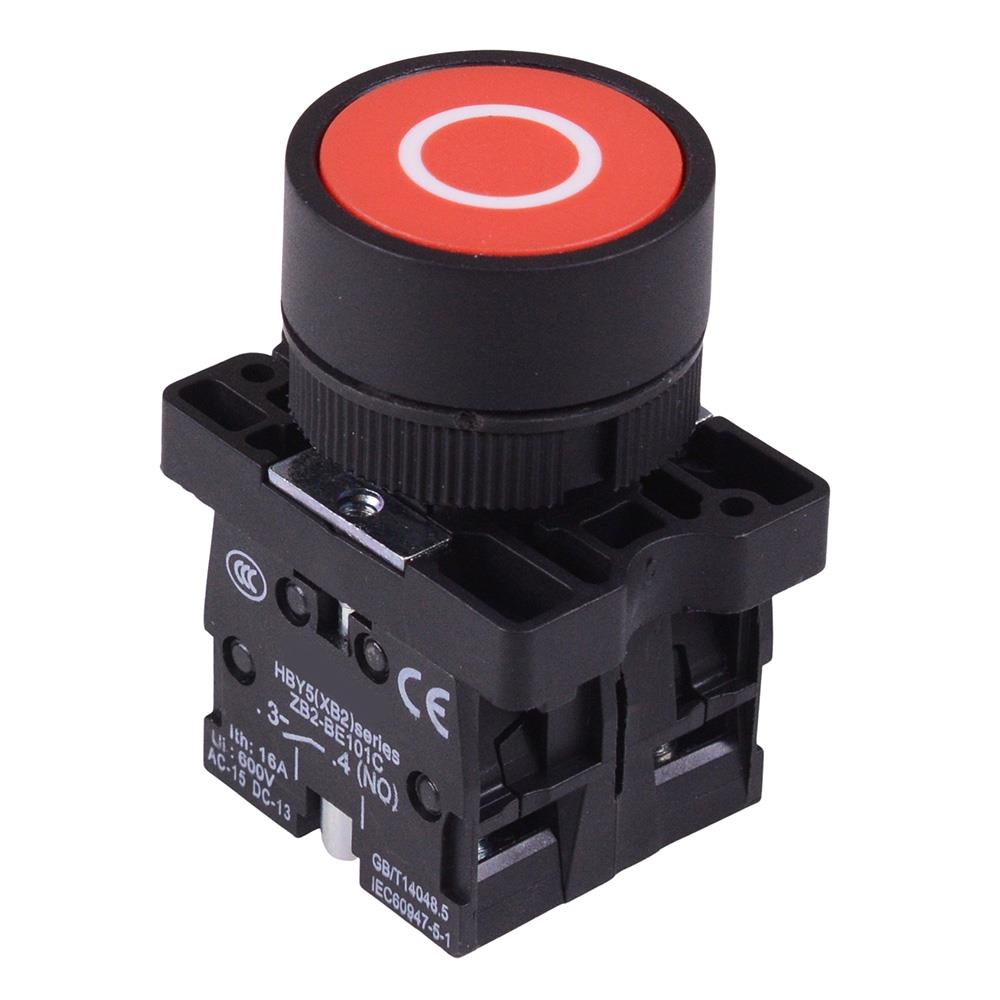

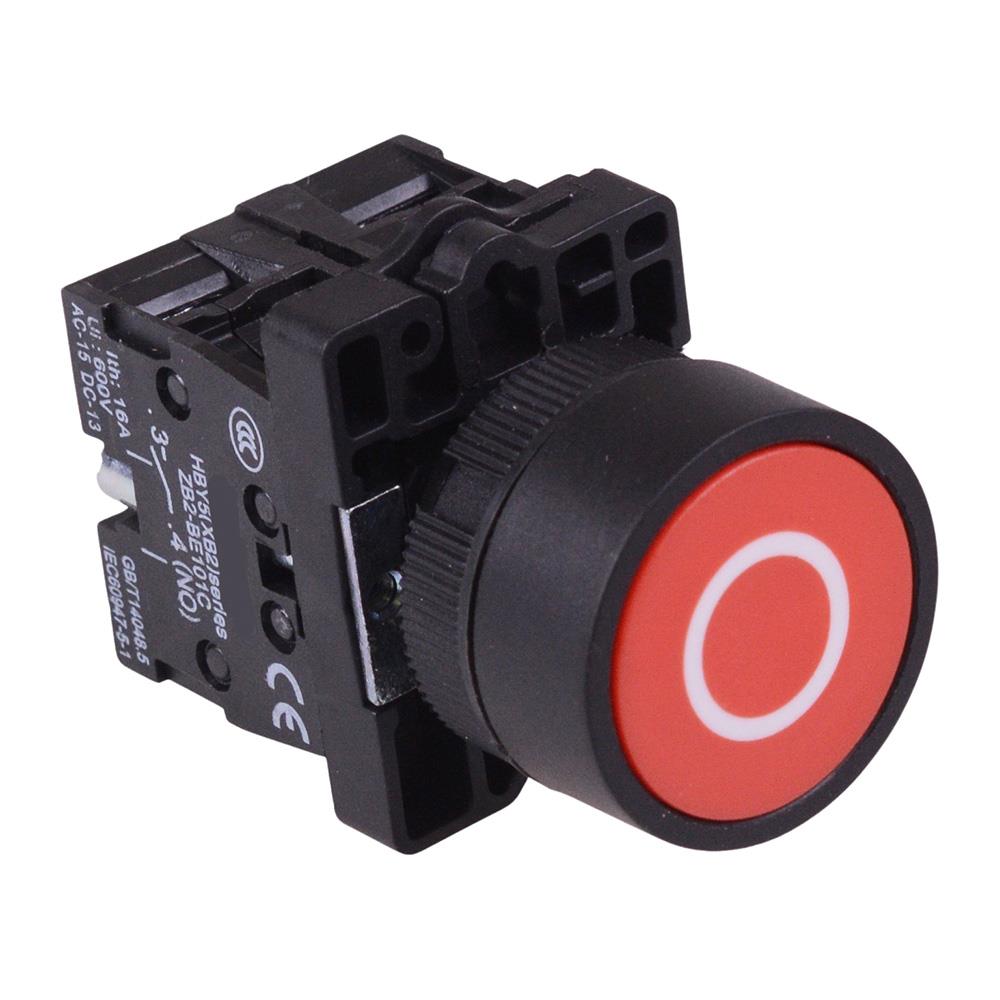

Red Momentary 22mm Push Button Switch White 'O' NO/NC

Red industrial push button switch wth white 'O' symbol, featuring 1NO1NC contacts. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch requires a 22mm panel cut-out and is suitable for a wide range of industrial applications.

Corrosion resistant plastic construction

Interchangeable contact blocks and operators

Panel thickness: 5mm max

Panel cut-out: 22mm

Rated insulation voltage: 400V

Rated thermal current: 10A

1NO and 1NC contacts

Head diameter: 30mm
