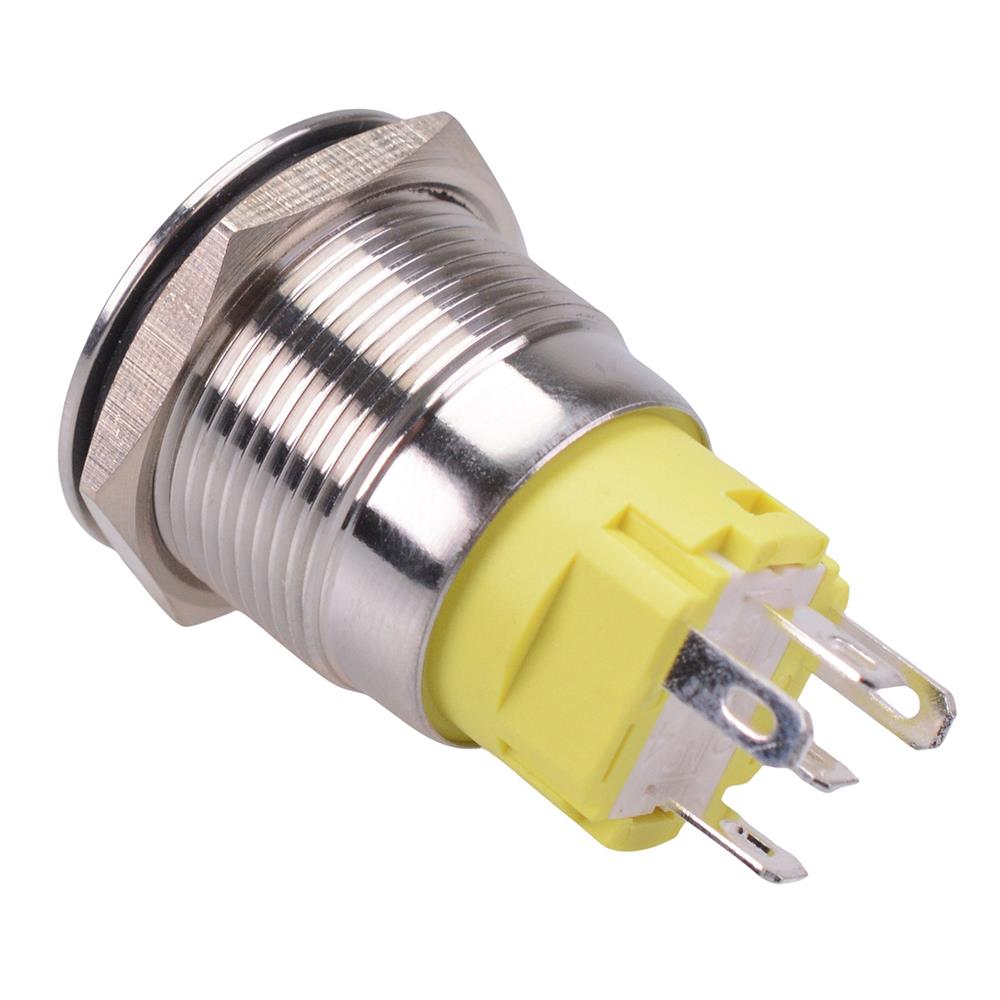

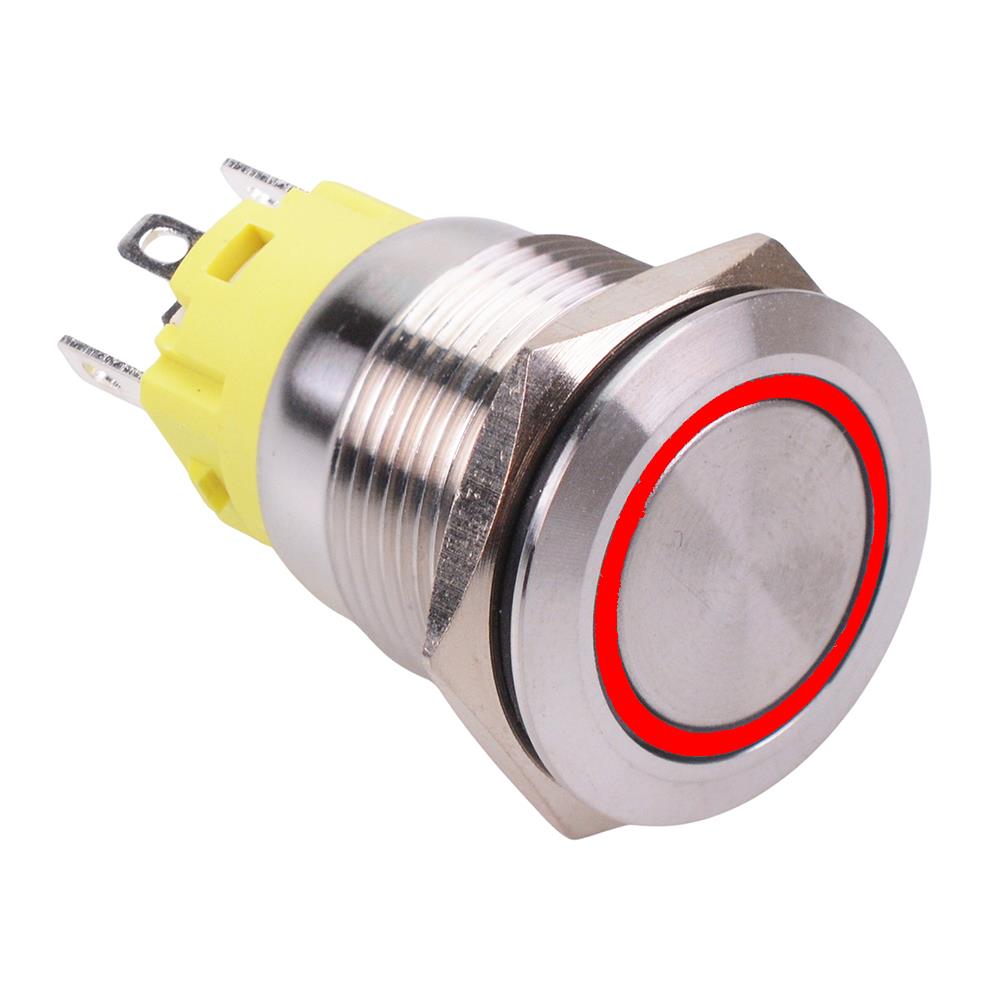

Red LED 24V On-On Latching 19mm Vandal Push Button Switch SPDT

Latching vandal resistant 19mm push button switch featuring a red 24V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 24V applications.

Latching action

Red LED

24V illumination voltage

IP65 protection rating

19mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 5A 250VAC

Dimensions: 35.1 x 22mm (length x diameter)
