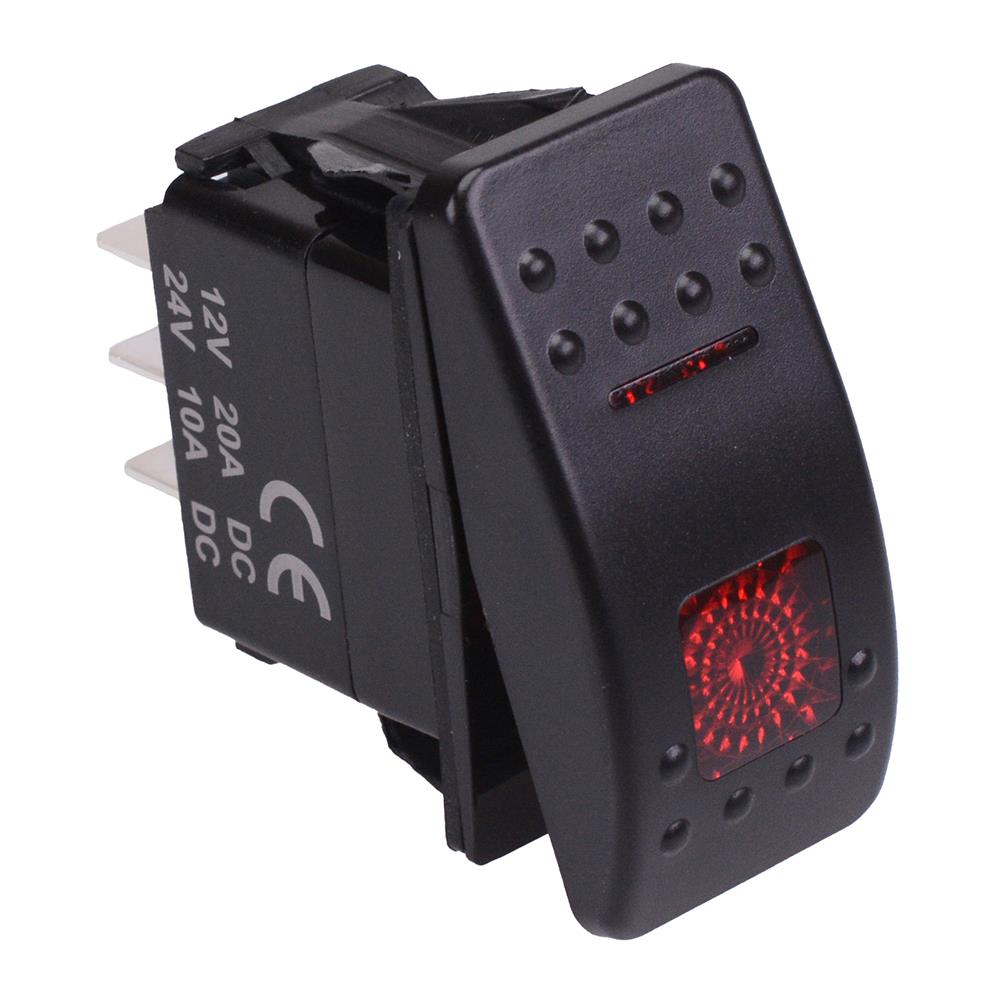

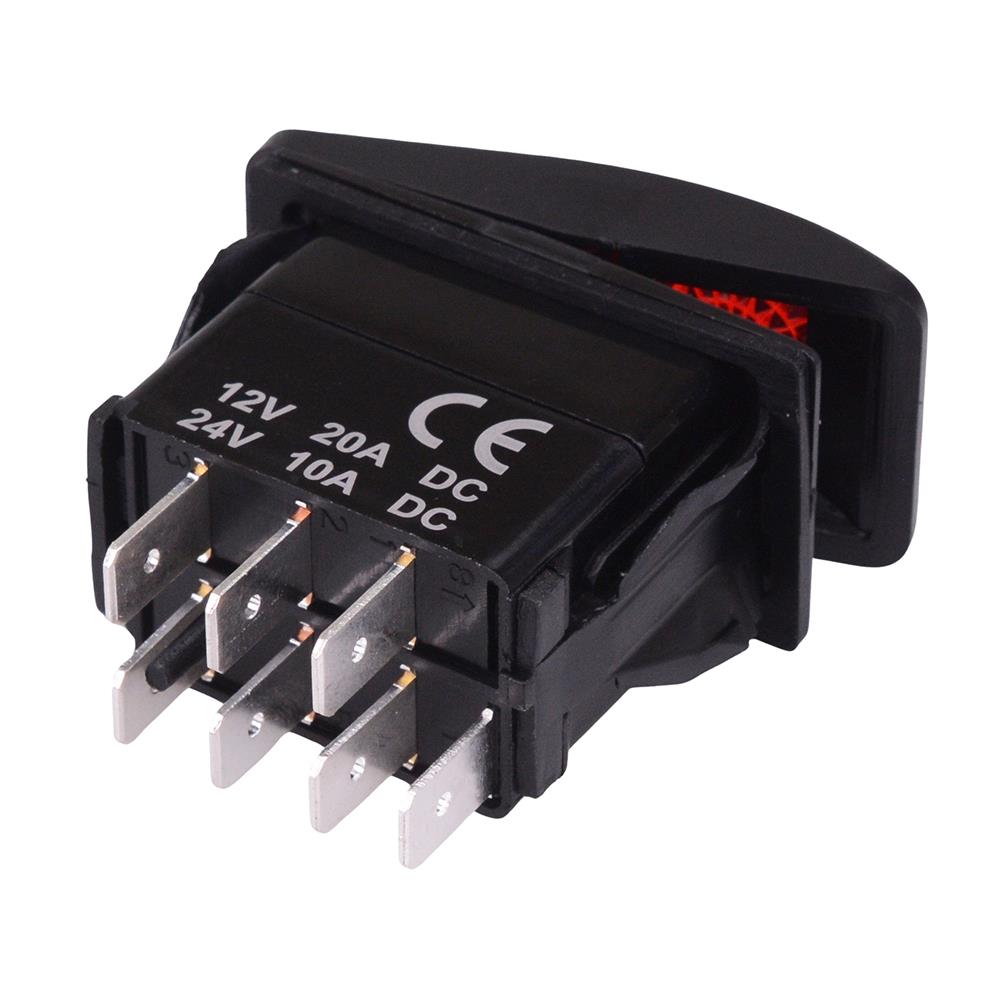

Red illuminated On-Off-(On) Momentary Automotive Rocker Switch DPDT 10A 12-24V

On-Off-(On) momentary function rocker switch featuring DPDT contacts and red LED illumination. The switch features IP68 protection rating and fits standard automotive 37x21mm panel cut-outs. The switch is suitable for a wide range of 12V/24V applications including autmotive and marine.

Function: On-Off-(On) momentary

Contacts: DPDT

Red LED illumination in both 'On' positions

illumination voltage: 12V/24V

Protection rating: IP68

Panel cut-out: 37x21mm

Panel thickness: 1-4.9mm

Rating: 10A 24VDC, 20A 12VDC, 10A 250VAC, 15A 125VAC

Dimensions: 51.8 x 49.5 x 24.5mm (height x length x width)
