Product Description

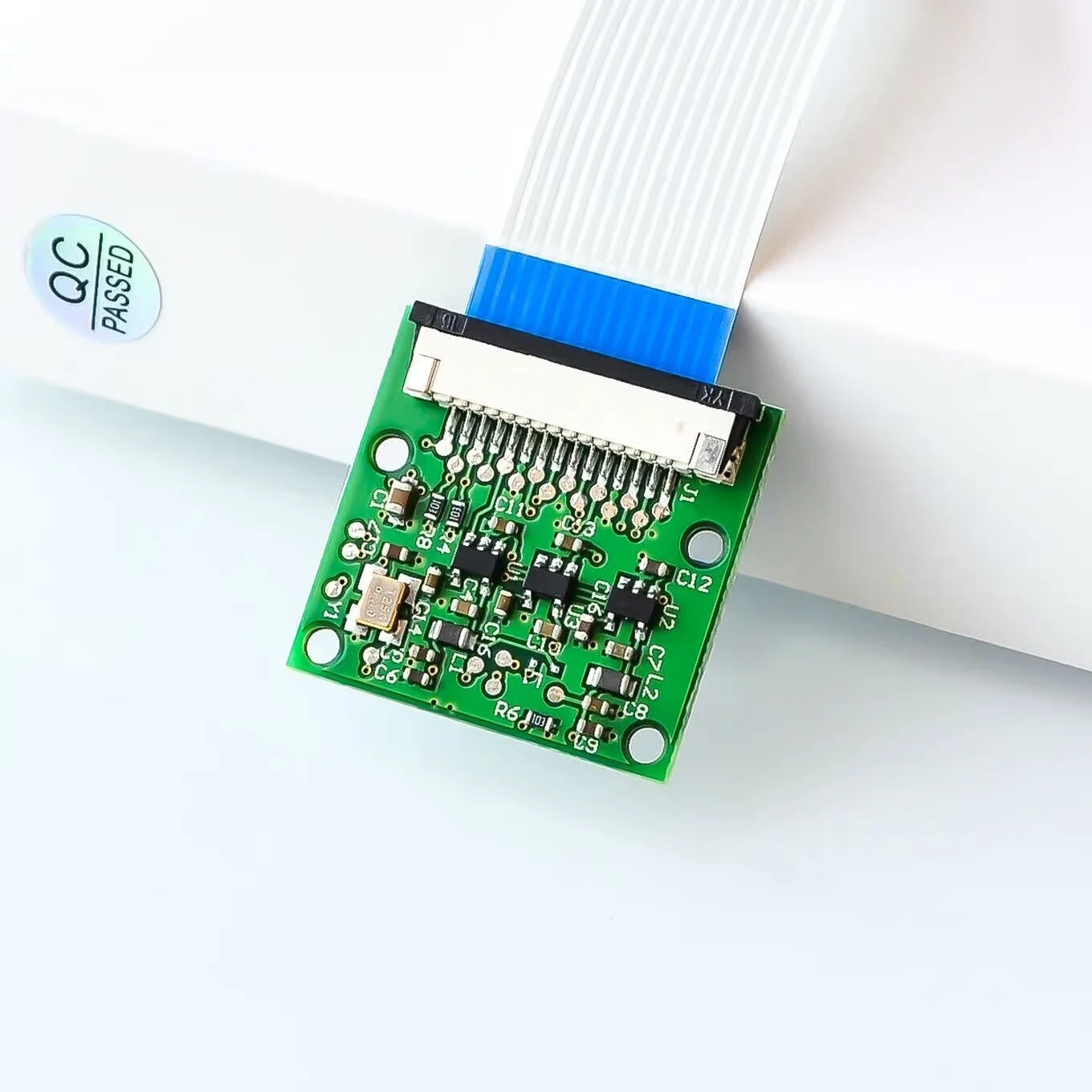

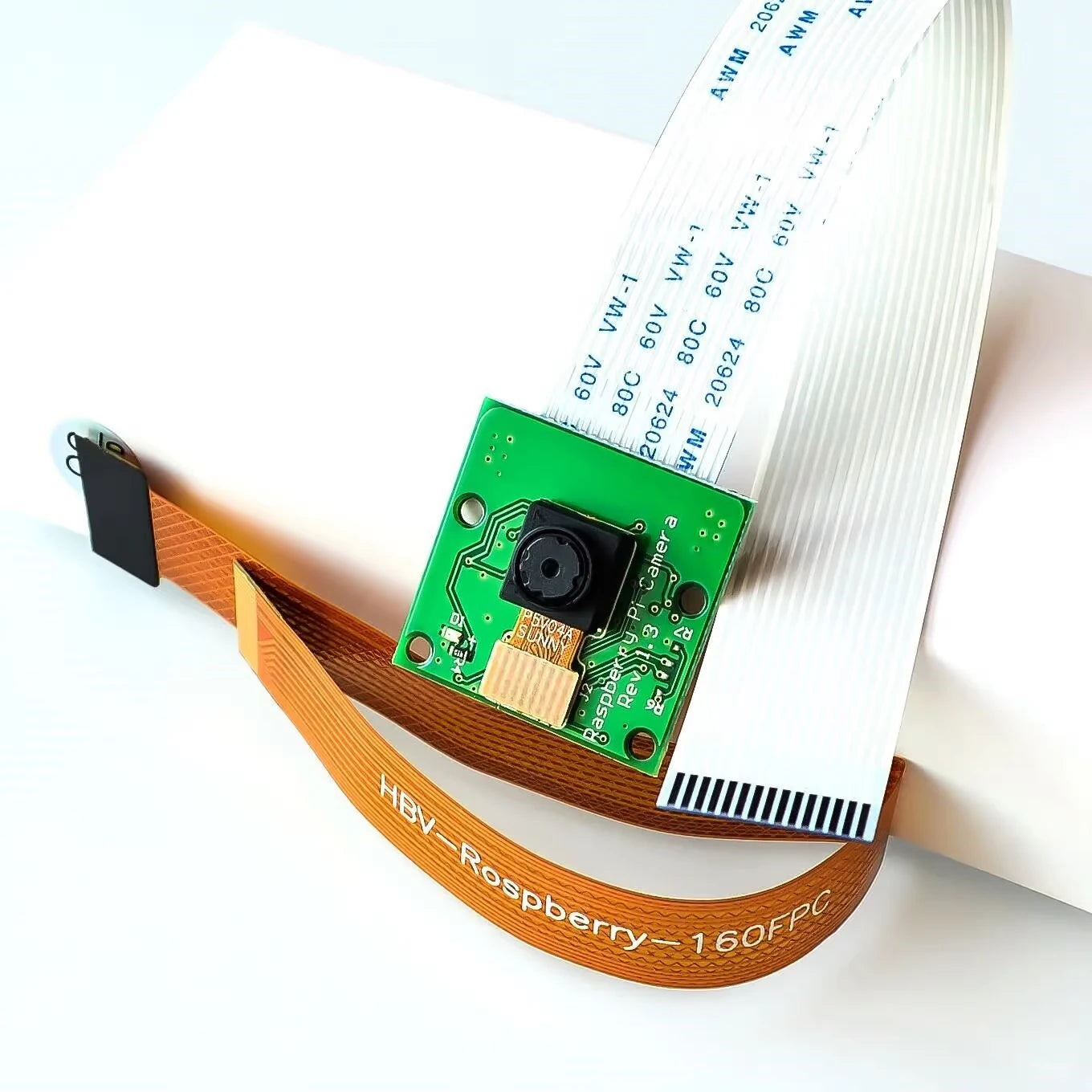

Capture crisp images and video with the Raspberry Pi Zero W 5MP Camera Module, a compact and high-quality imaging solution designed specifically for the Raspberry Pi Zero and Zero W boards. Equipped with a 5-megapixel OV5647 sensor, this camera delivers excellent image quality and performance in a small, lightweight form factor. The included 16cm flexible ribbon cable makes it easy to connect directly to the Pi Zero's dedicated CSI camera port.
Key Features:
5 Megapixel Camera Module: Based on the proven OV5647 sensor for clear, detailed photos and videos. 16cm Flexible
Cable Included: Perfect length for compact enclosures and embedded projects.
Plug-and-Play Connection: Compatible with the Raspberry Pi Zero and Zero W's CSI interface.
High-Quality Video Capture: Supports 1080p30, 720p60, and 640×480p90 video modes.
Fixed-Focus Lens: Ideal for general-purpose photography, time-lapse, and monitoring applications.
Compact Design: Lightweight and space-efficient for small projects and portable builds.
Specifications:
Sensor: OV5647 Resolution: 5 Megapixels (2592 × 1944) Video Output: 1080p @30fps, 720p @60fps, VGA @90fps
Lens Type: Fixed focus Cable Length: 16cm (CSI ribbon cable)
Interface: CSI (Camera Serial Interface)
Compatibility: Raspberry Pi Zero, Zero W, and Zero WH

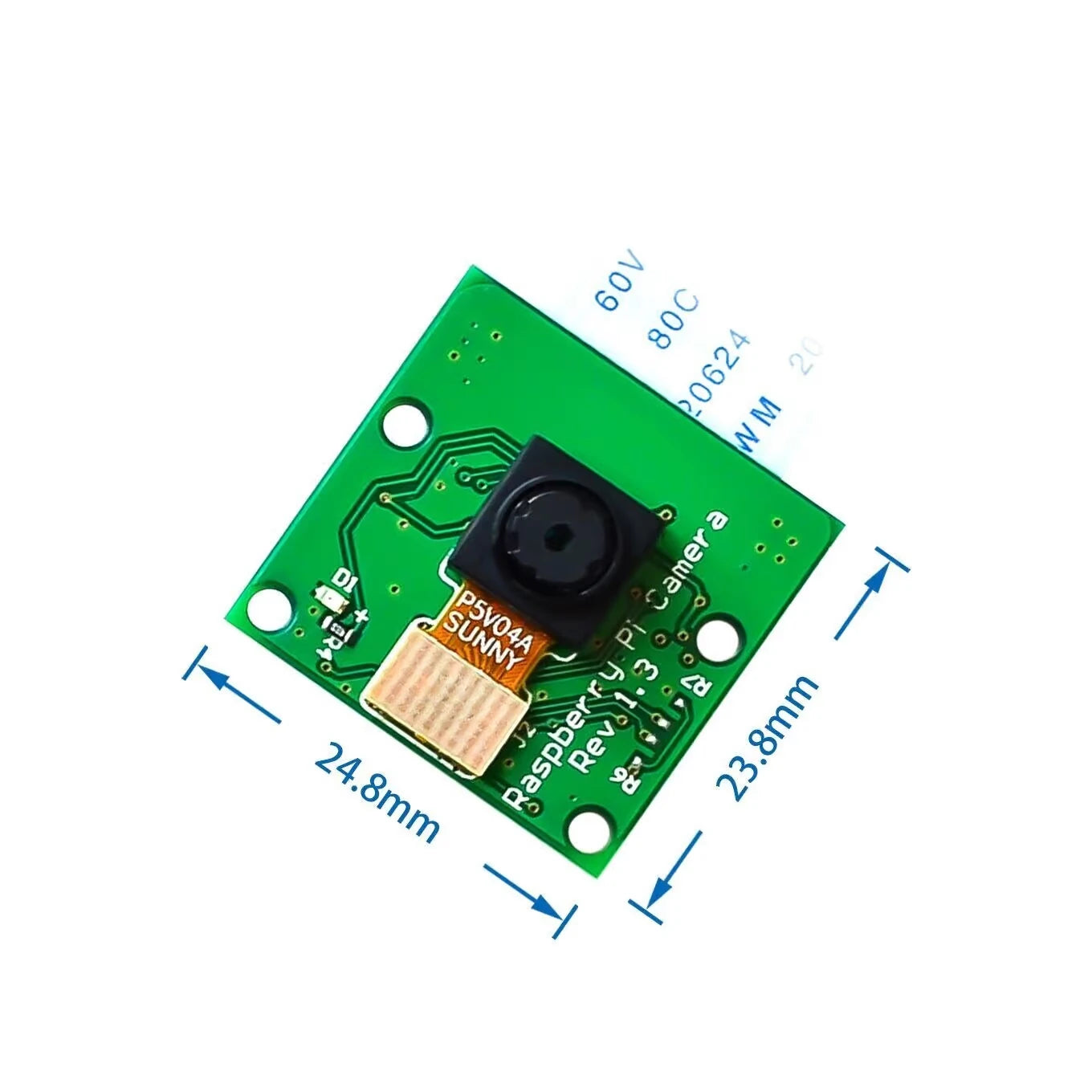

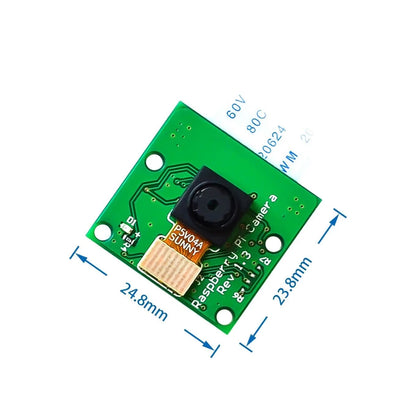

Dimensions: Approx. 25mm × 24mm
Applications: Raspberry Pi photography projects Home security and surveillance Machine vision and object detection Time-lapse and slow-motion video DIY robotics and automation projects
Note: Raspberry Pi Zero Cable is not included.
