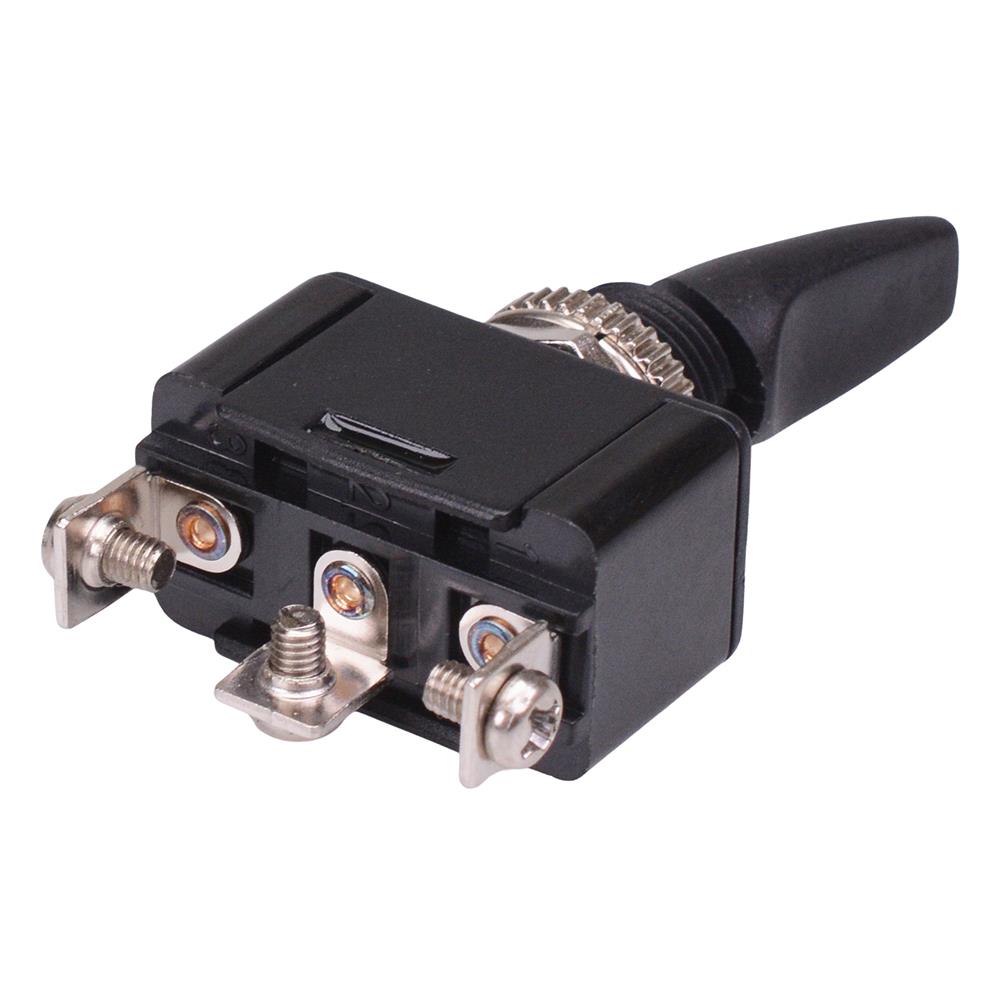

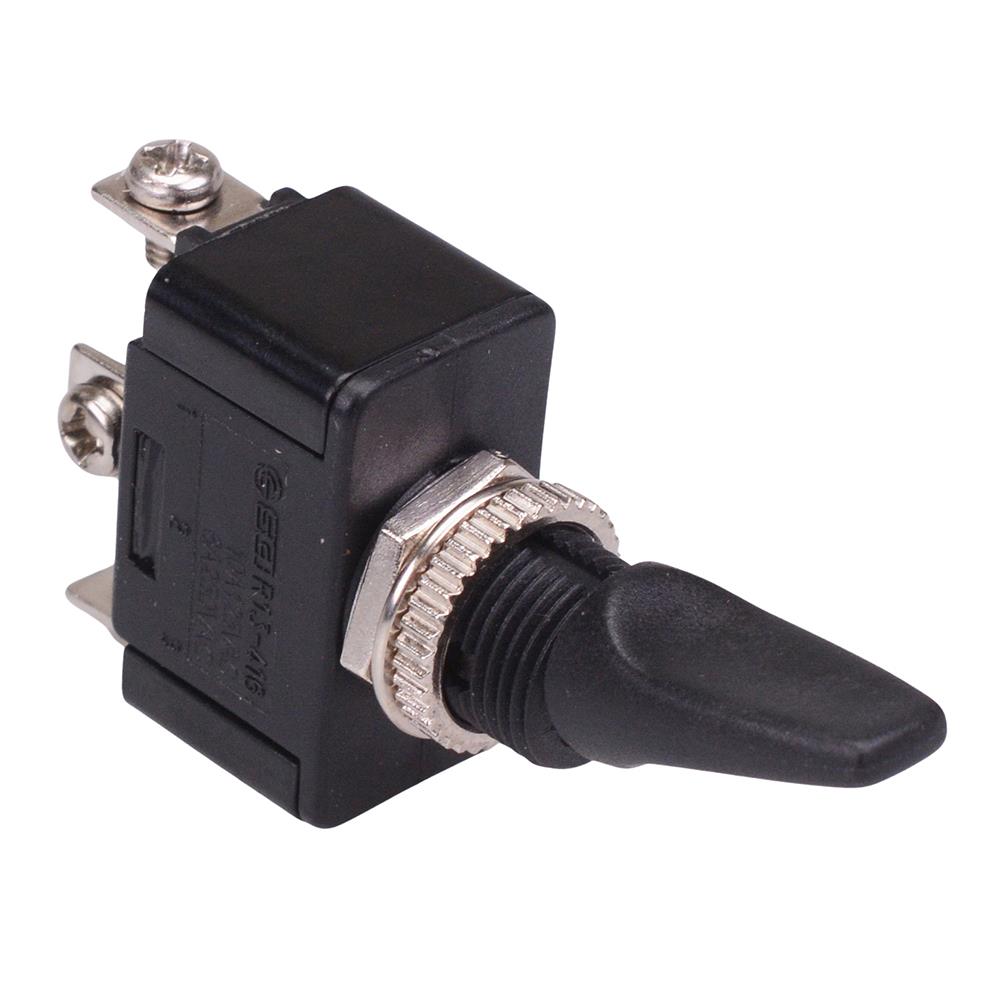

R13-416D2 Black Paddle On-Off-On 12mm Toggle Switch SPDT 6A 250VAC

The R13-416D2 is a black toggle switch with On-Off-On function and paddle actuator, featuring M3 screw terminals and 10A current rating. The switch requires a 12.2mm panel cut-out, and is suitable for a wide range of switching applications.

Function: On-Off-On

Contacts: SPDT

Panel cut-out: 12.2mm

Rating: 10A 125VAC, 6A 250VAC

Maximum panel thickness: 5mm

Termination: M3 screw

M12*1.0mm thread

SCI R13-416 series
