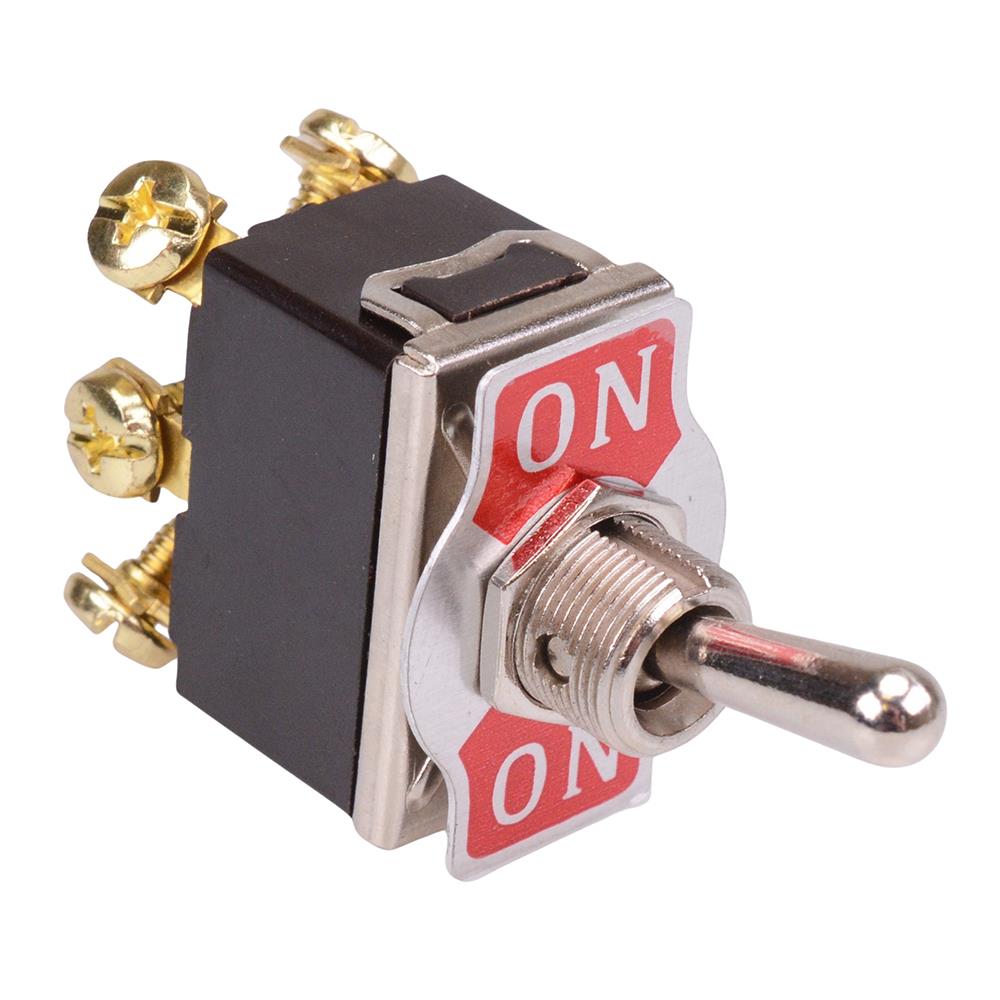

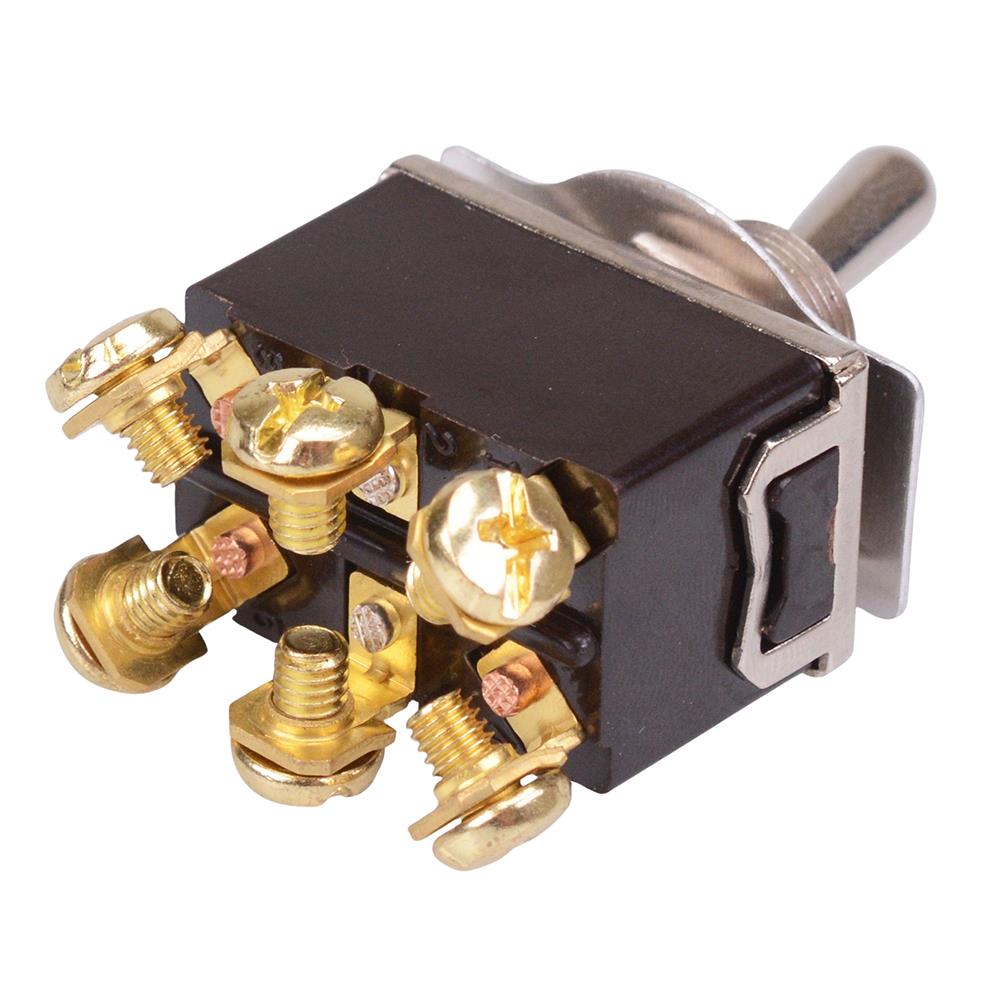

R13-29B-07 On-On 12mm Toggle Switch M4 Screw DPDT 10A 250VAC

The R13-29B-07 toggle switch are On-On function and DPDT contacts, featuring screw terminals and requires a 12.2mm diameter mounting hole. The switch features 10A 250VAC rating, suitable for a wide range of switching applications.

Function: On-On

Contacts: DPDT

Panel cut-out: 12.2mm

Rating: 15A 125VAC, 10A 250VAC

Maximum panel thickness: 6mm

Termination: M4 screw

M12*0.75mm thread

SCI R13-29 series
