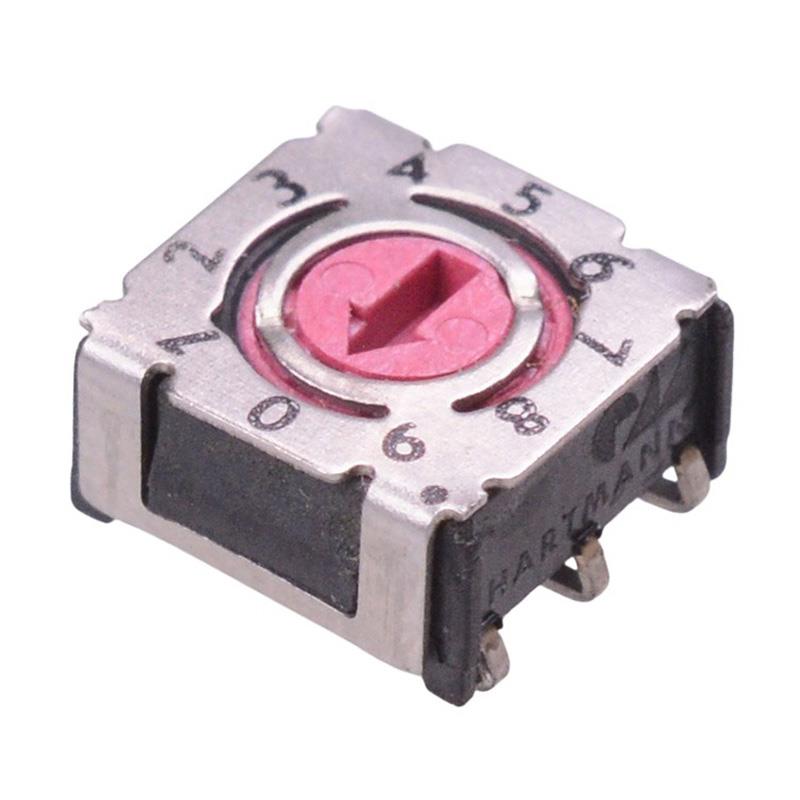

P36SMJ101 16 Way Surface Mount Rotary DIP Switch Red Actuator

The P36SMJ101 is a rotary DIP switch featuring hexadecimal coding and 16 ways. The switch features a red arrow-shaped slot actuator and is suitable for surface mount applications.

Red arrow-shaped actuator

Hexadecimal code

Operating voltage: 42VDC max

Contact load static: ≤0.4A

Contact load dynamic: ≤0.1A

Terminal pitch: 2.54 x 8.1mm

Dimensions: 7.4 x 7.4mm (length x width)
