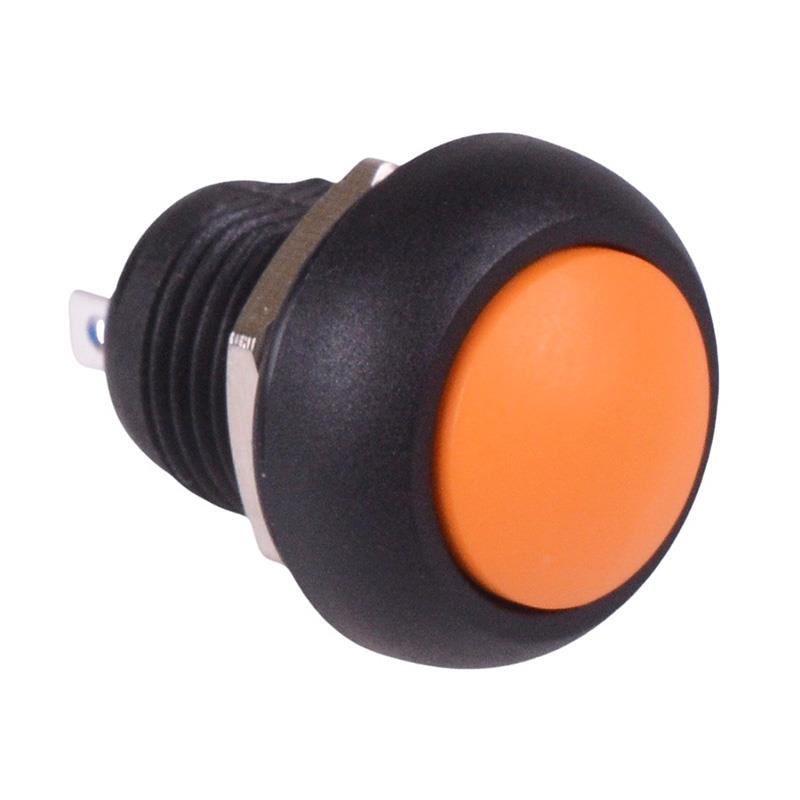

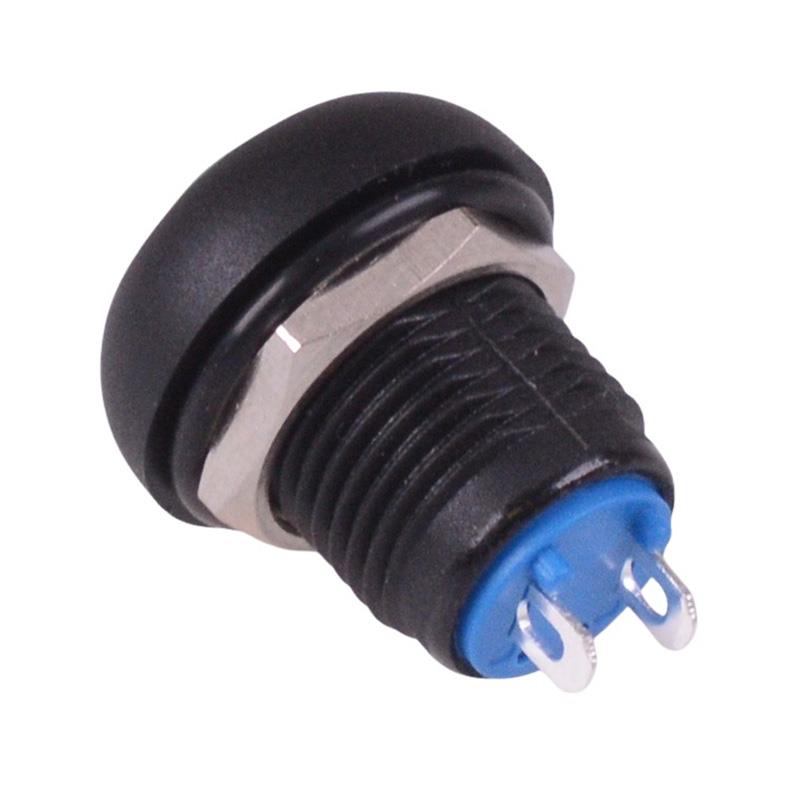

Orange On-Off Latching 12mm Waterproof Push Button Switch IP65 SPST

Orange latching push button switch featuring a round actuator and SPST contacts. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Latching operation

SPST contacts

IP65 protection rating

2.8x0.5mm quick connect terminals

Panel cut-out: 12mm

Panel thickness: 6mm max

Rating: 2A 250V

Dimensions: 24.75 x 18mm (height x diameter)
