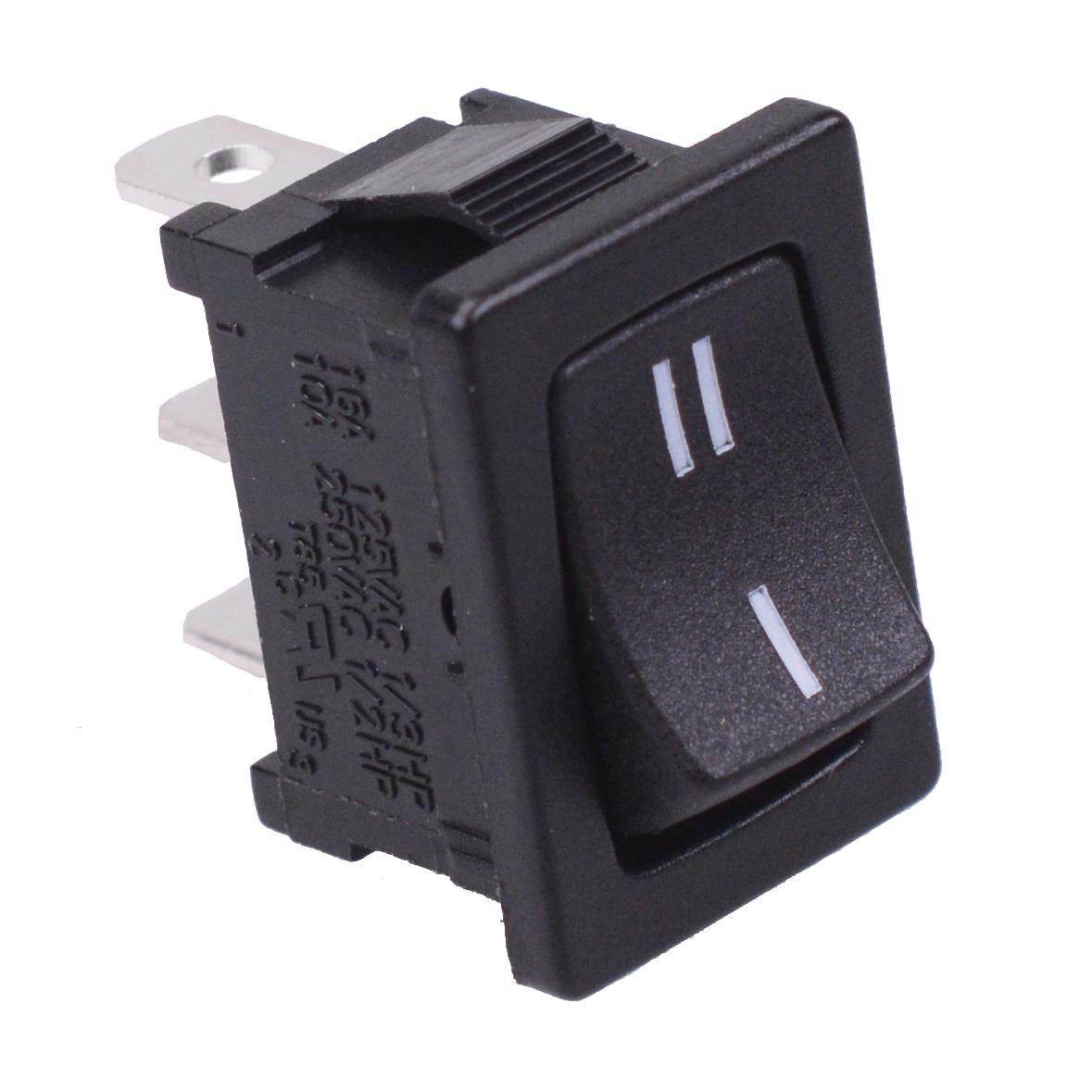

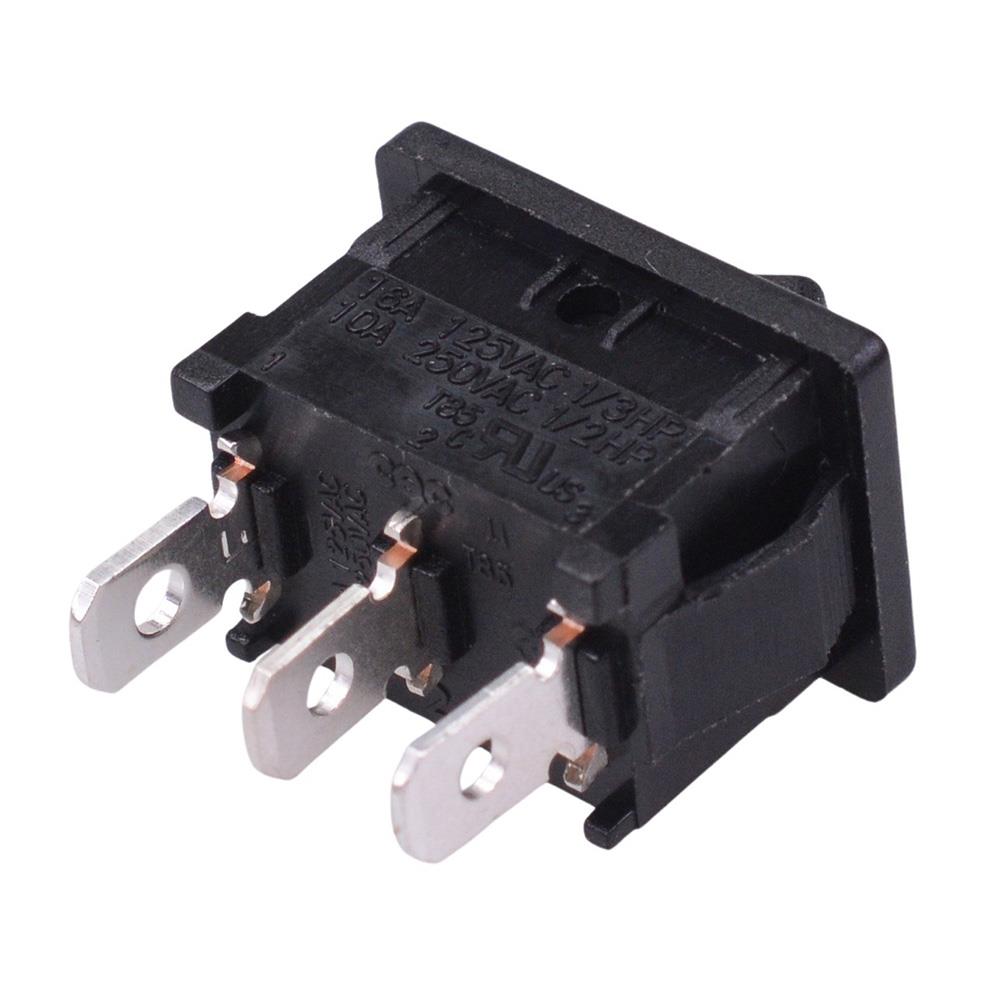

On-On Rectangle Rocker Switch SPDT 10A 250VAC R13-66C-02

R13-66C-02 rectangle rocker switch featuring SPDT contacts and On-On function. The switch requires a 19.2 x 13mm panel cut-out and features 4.8mm quick connect terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications.

Function: On-On

Contacts: SPDT

Panel cut-out: 19.2 x 13mm

Panel thickness: 0.75-3mm

Rating: 10A 250VAC, 16A 125VAC

4.8mm quick connect terminals

Dimensions: 21.0 x 15.0 x 24.9mm (length x width x height)
