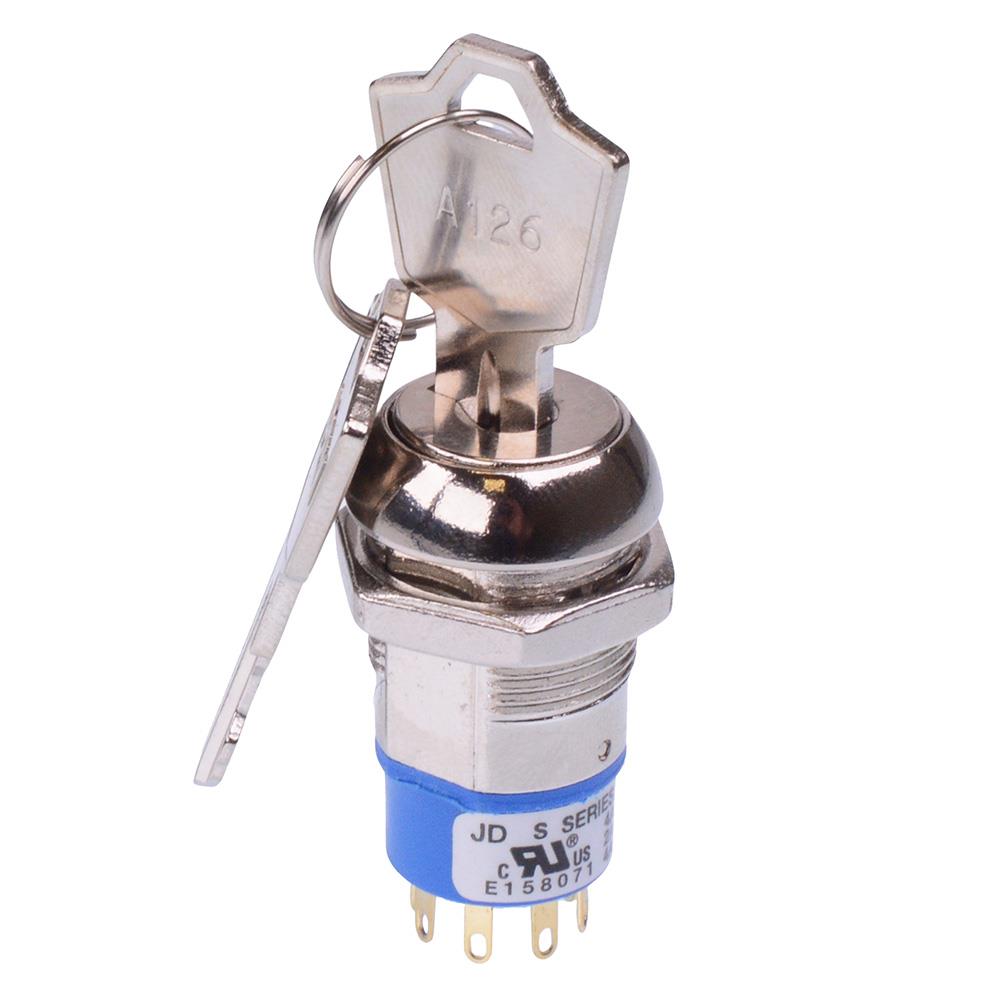

On-On-(On) Momentary 3 Way 19mm Key Switch DP3T 4A APEM LK5JNB126-N3

The LK5JNB126-N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DP3T contacts and 3 positions with key withdrawal in the central position. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

3 positions On-On-(On) momentary

DP3T contacts

Nickel plated finish

Key withdrawal in position 2

Panel cut-out: 19mm

Indexing: 45°

Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC

Mechanical and electrical life: 6000 cycles at full load

Dimensions: 28.8 x 22mm (length x diameter)
