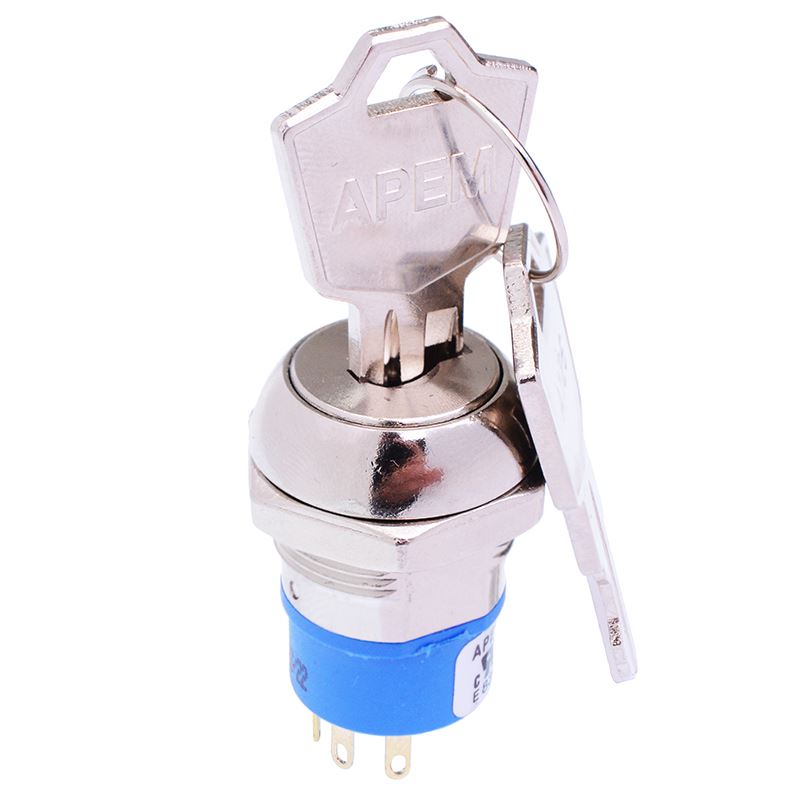

(On)-On-(On) 3 Way Momentary 19mm Key Switch SP3T 4A LK5ENB126N3

(On)-On-(On) 3 Way Momentary 19mm Key Switch SP3T 4A LK5ENB126N3

£16.93
£14.05 £16.93
Sale Sold out

Order Code: 485818

Delivery calculated at checkout.
Available Online Only

42 in stock
View full details

Product Description

The LK5ENB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SP3T contacts and 3 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 3 positions
  • Momentary switching in position 2&3
  • SP3T contacts
  • Nickel plated finish
  • Key withdrawal in position 1
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
