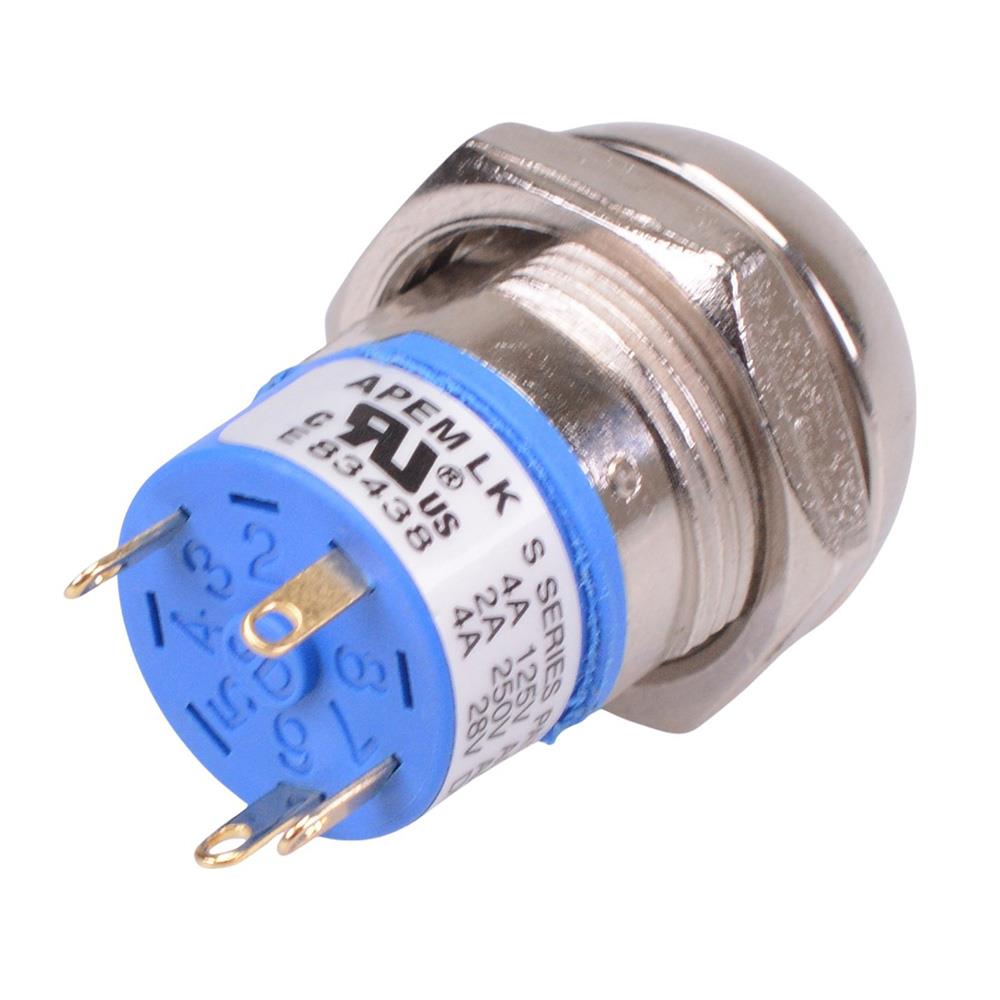

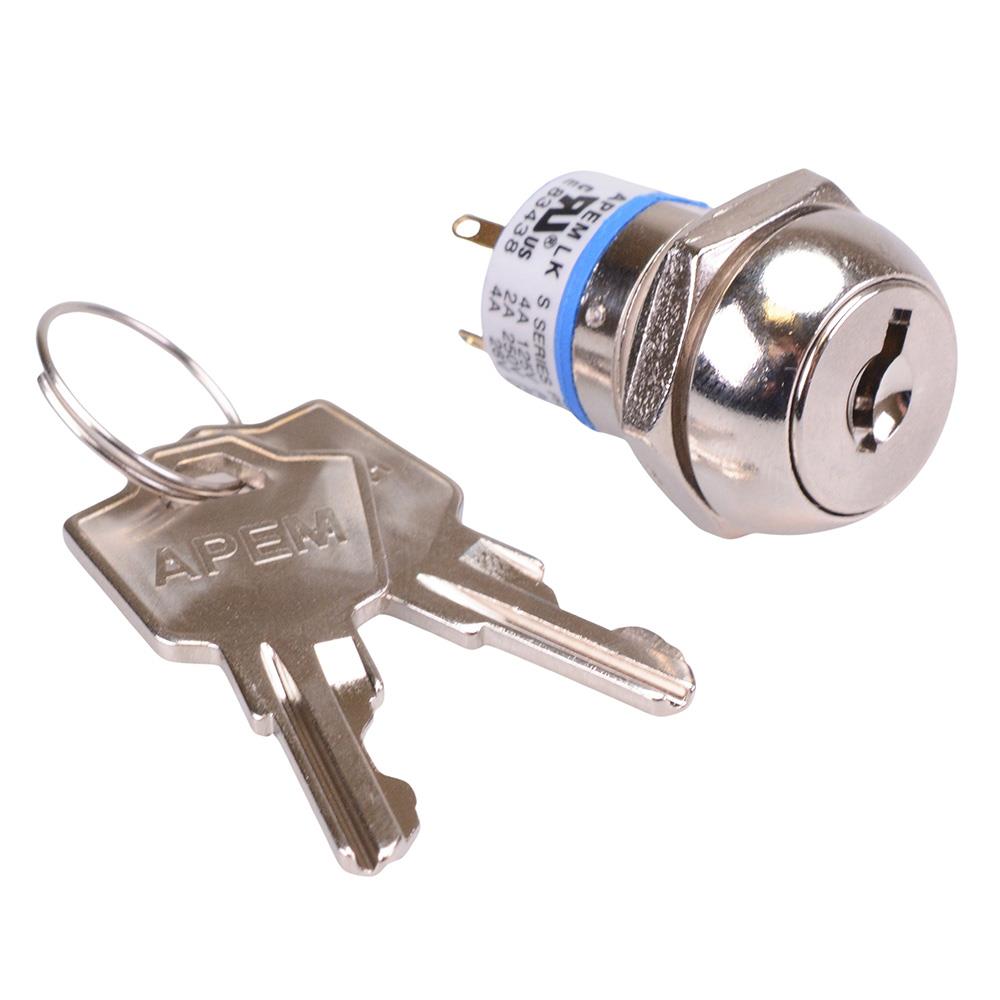

On-On-On 3 Way 19mm Key Switch SP3T 4A APEM

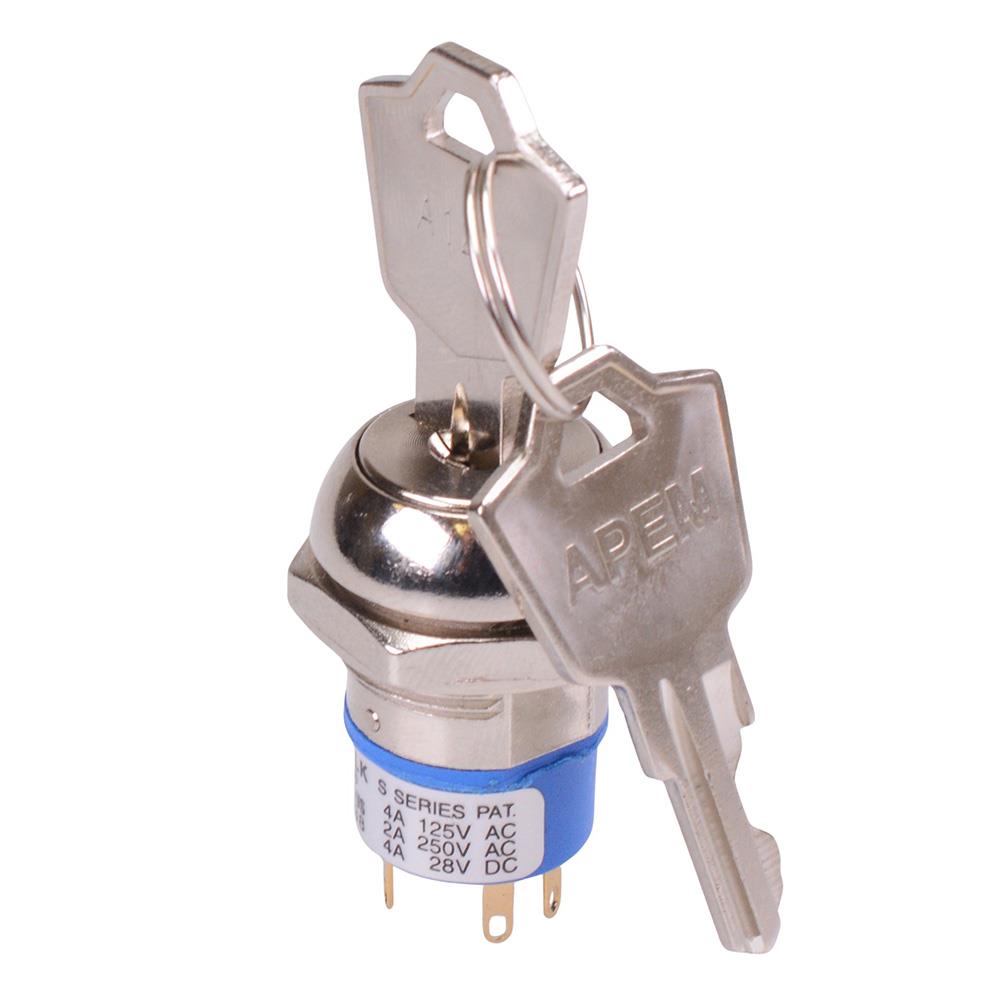

The JD7509D1-A126 is a high quality key operated switch from the JD series manufactured by APEM. The switch features SP3T contacts and 3 maintained positions with key withdrawal in position 1,2,&3. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

3 positions

Maintained switching

SP3T contacts

Nickel plated finish

Key withdrawal in position 1,2,3

Panel cut-out: 19mm

Indexing: 45°

Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC

Mechanical and electrical life: 6000 cycles at full load

Dimensions: 27.5 x 22mm (length x diameter)
