On-On-On 3 Way 19mm Key Switch DP3T 4A LK6JNB126N3

On-On-On 3 Way 19mm Key Switch DP3T 4A LK6JNB126N3

£15.15
£12.48 £15.15
Sale Sold out

Order Code: 485819

Delivery calculated at checkout.
Available Online Only

33 in stock
View full details

Product Description

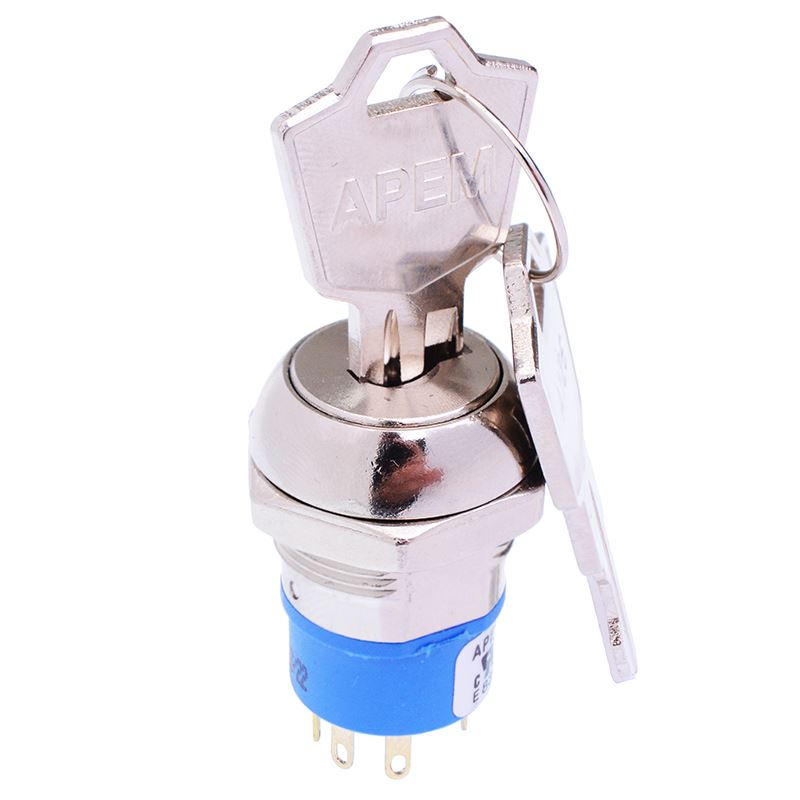

The LK6JNB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DP3T contacts and 3 maintained positions with key withdrawal in position 1,2,&3. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 3 positions
  • Maintained switching
  • DP3T contacts
  • Nickel plated finish
  • Key withdrawal in position 1,2,3
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
