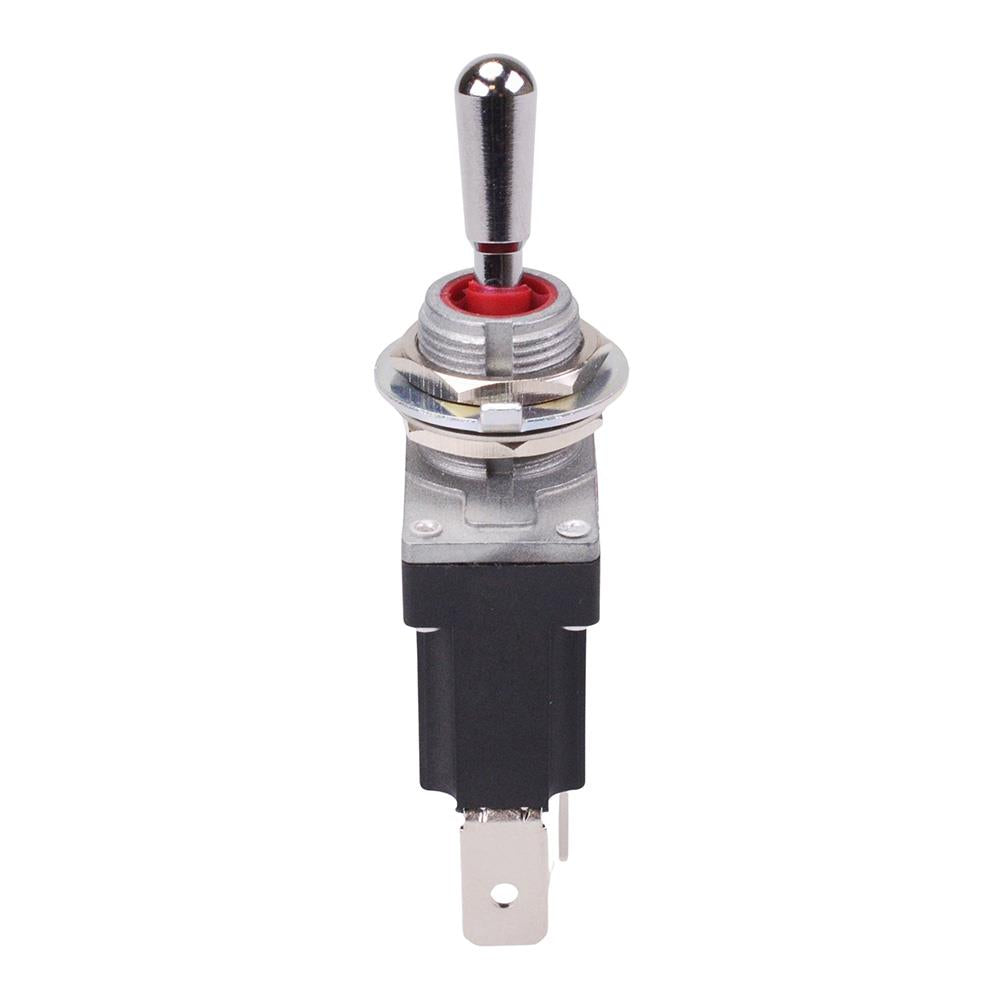

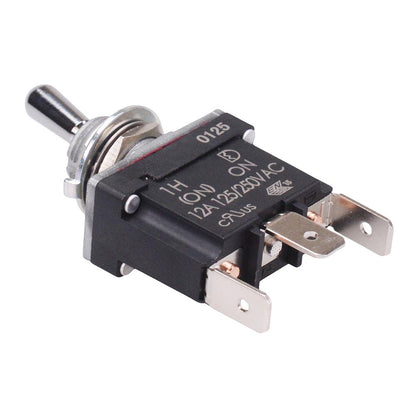

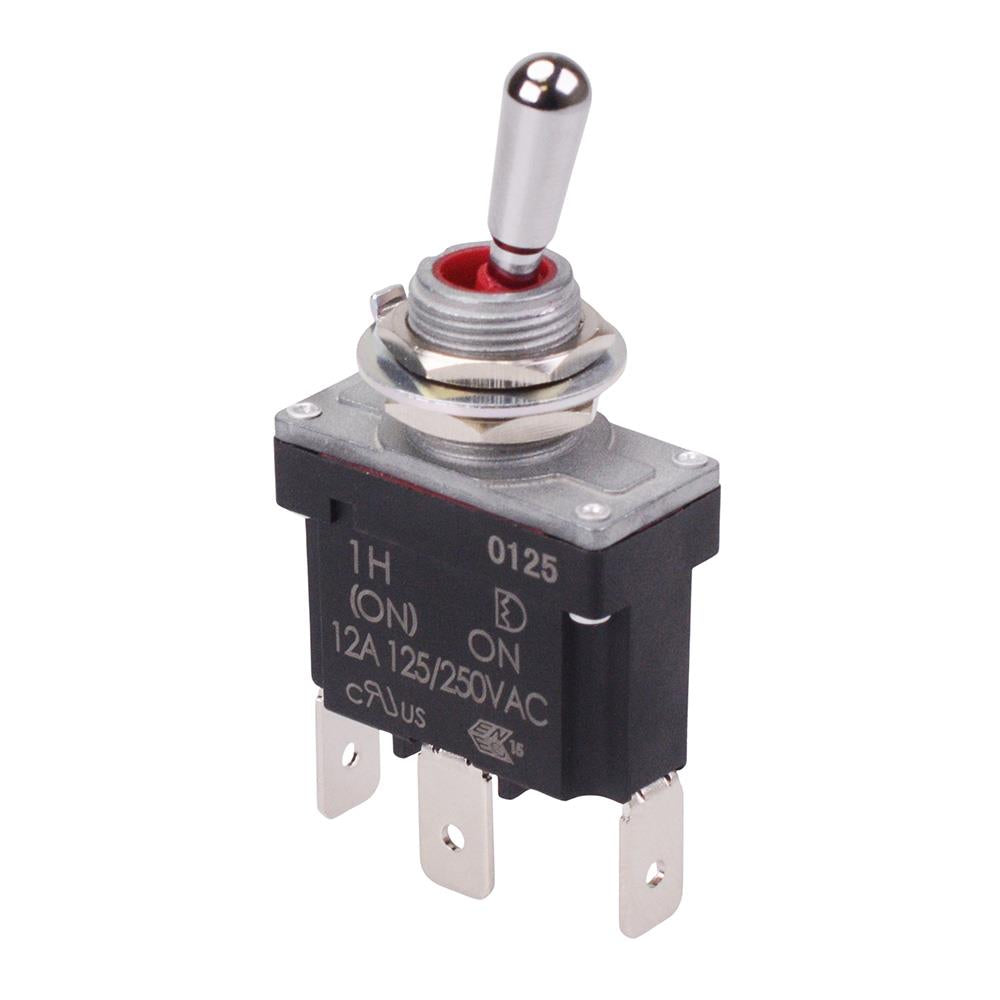

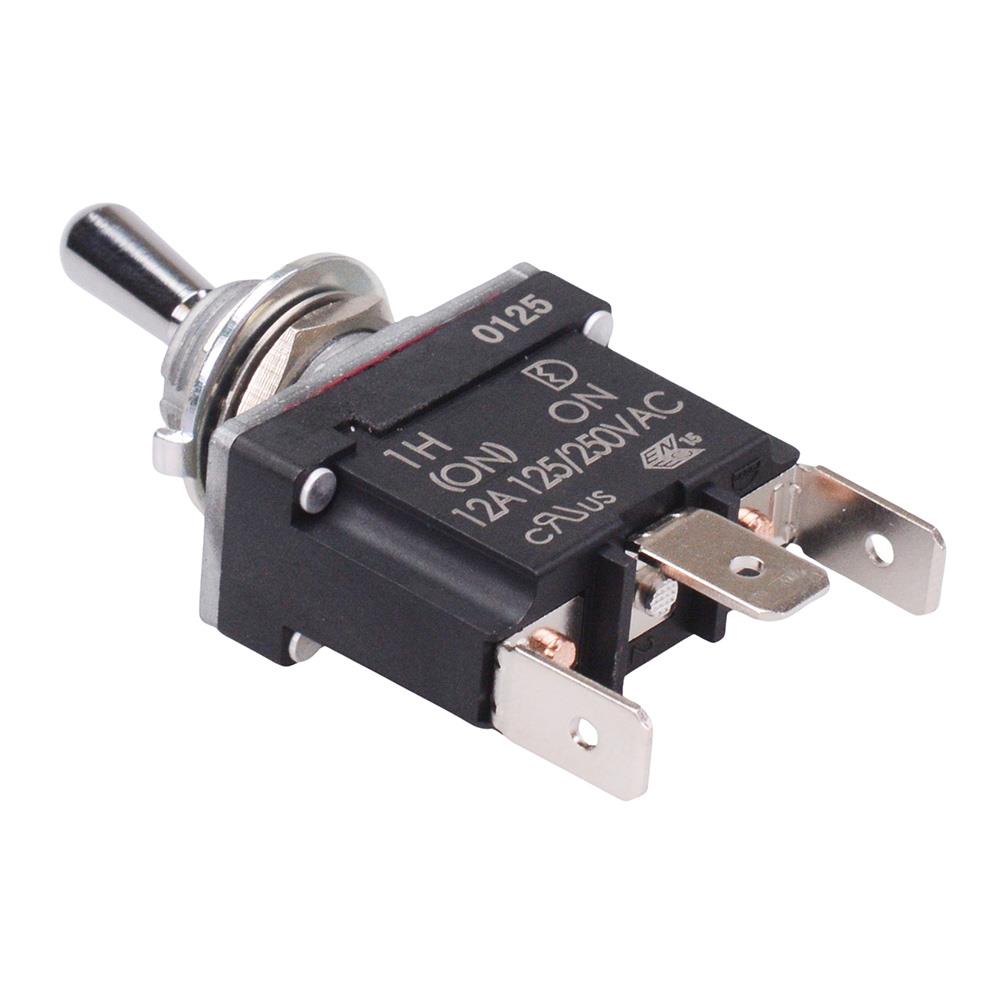

On-(On) Momentary Sealed 12mm Toggle Switch SPDT 12A IP68

On-(On) momentary high current sealed toggle switch with IP67 protection rating and SPDT contacts. The switch features 6.3mm quick connect terminals and requires a 12mm panel cut-out diameter. The switch features a 12A current rating and is suitable for a wide range of demanding applications including automotive and marine.

On-(On) momentary operation

SPDT contacts

Panel cut-out: 12mm

Protection level: IP67

Rating: 12A 250VAC

6.35mm quick connect terminals

Dimensions: 62.2 x 29.0 x 14.0mm (height x length x width)
